Tutorial for Visium HD CRC dataset
Need additional packages: scanpy seaborn
[ ]:
%reload_ext autoreload
%autoreload 2
import os
import time
import scanpy as sc
import pandas as pd
import numpy as np
import anndata as ad
import seaborn as sns
import matplotlib.pyplot as plt
import matplotlib.patches as mpatches
from matplotlib.patches import Patch
from matplotlib.lines import Line2D
from Harmonics import *
import warnings
warnings.filterwarnings("ignore")
sc.settings.verbosity = 0
sc.settings.set_figure_params(dpi=50, dpi_save=500)
from matplotlib import rcParams
rcParams["figure.dpi"] = 50
rcParams["savefig.dpi"] = 500
rcParams['pdf.fonttype'] = 42
rcParams['svg.fonttype'] = 'none'
rcParams['ps.fonttype'] = 42
# rcParams['font.family'] = 'Arial'
rcParams['savefig.transparent'] = True
[2]:
data_dir = '../../../Data/Spatial/Transcriptomics/VisiumHD_CRC_Oliveira2024/processed/'
save_dir = f'../../results/VisiumHD_CRC_Oliveira2024/Harmonics/'
if not os.path.exists(save_dir):
os.makedirs(save_dir)
Define the function to change p values to corresponding star representation, used to show the results of additional tests implemented in Harmonics.
[3]:
def p2stars(p):
if p < 0.001:
return '***'
elif p < 0.01:
return '**'
elif p < 0.05:
return '*'
else:
return ''
Load dataset
We only use bins that are predicted as singlet.
[4]:
slice_name_list = ['P1CRC', 'P2CRC', 'P5CRC']
adata_list = []
for slice_name in slice_name_list:
adata = ad.read_h5ad(data_dir+f'{slice_name}_singlet.h5ad')
adata = adata[adata.obs['DeconvolutionClass']=='singlet', :].copy()
adata_list.append(adata)
Run model
Instantiate Harmonics
[5]:
model = Harmonics_Model(adata_list,
slice_name_list,
cond_list=None, # default
cond_name_list=None, # default
concat_label='slice_name', # default
proportion_label=None, # default
seed=1234, # default
parallel=True, # default
verbose=True, # default
)
Dataset comprises 3 slices, 810099 cells/spots in total.
Preprocess the data (Generating the connection graph and calculating neighborhood cell type destribution for cells)
[6]:
model.preprocess(ct_key='DeconvolutionLabel1',
spatial_key='spatial', # default
method='joint', # default
n_step=3, # default
n_neighbors=20, # default
cut_percentage=99, # default
)
Generating Delaunay neighbor graph...
100%|██████████| 3/3 [00:10<00:00, 3.64s/it]
All done!
Performing graph completion...
100%|██████████| 3/3 [00:49<00:00, 16.55s/it]
All done!
The cell types of interest are:
Adipocyte
CAF
CD4 T cell
CD8 T cell
Endothelial
Enteric Glial
Enterocyte
Epithelial
Fibroblast
Goblet
Lymphatic Endothelial
Macrophage
Mast
Mature B
Memory B
Myofibroblast
NK
Neuroendocrine
Neutrophil
Pericytes
Plasma
Proliferating Fibroblast
Proliferating Immune II
Proliferating Macrophages
SM Stress Response
Smooth Muscle
Tuft
Tumor I
Tumor II
Tumor III
Tumor IV
Tumor V
Unknown III (SM)
Vascular Fibroblast
cDC I
mRegDC
pDC
vSM
Generating one-hot matrix...
100%|██████████| 3/3 [00:00<00:00, 3.59it/s]
All done!
Dataset comprises 38 cell types.
Calculating cell type distribution for microenvironments...
Microenvironments comprise 38.75 cells/spots on average.
Minimum: 20, Maximum: 84
Perform overclustered initialization on the cell type distributions of cell neighborhoods. Resulting in Qmax niches. The distributions of niches are also computed.
[7]:
model.initialize_clusters(dim_reduction=True, # default
explained_var=None, # default
n_components=None, # default
n_components_max=100, # default
standardize=True, # default
method='kmeans', # default
Qmax=20,
)
Performing dimension reduction...
Returning 38 principal components.
Initializing niches...
20 initial niches defined.
Perform hierarchical distribution matching to reduce the niche number to no less than Qmin. This step results in niche assignment under a sequence of different niche numbers (usually from Qmax to Qmin).
[ ]:
model.hier_dist_match(assign_metric='jsd', # default
weighted_merge=True, # default
max_iters=100, # default
tol=1e-4, # default
test_kmeans=False, # default
Qmin=2, # default
)
Starting from 20 cell niches...
Assigning cells to cell niche...
Current state: [0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19]
51%|█████ | 51/100 [00:44<00:42, 1.15it/s]
Distribution of cell niches (centers) converge at iteration 52.
20 cell niches left.
Merging cell niche 17 and cell niche 3...
Done!
Assigning cells to cell niche...
Current state: [0, 1, 2, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19]
27%|██▋ | 27/100 [00:23<01:04, 1.13it/s]
Distribution of cell niches (centers) converge at iteration 28.
19 cell niches left.
Merging cell niche 4 and cell niche 17...
Done!
Assigning cells to cell niche...
Current state: [0, 1, 2, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18, 19]
24%|██▍ | 24/100 [00:20<01:04, 1.18it/s]
Distribution of cell niches (centers) converge at iteration 25.
18 cell niches left.
Merging cell niche 4 and cell niche 11...
Done!
Assigning cells to cell niche...
Current state: [0, 1, 2, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 19]
29%|██▉ | 29/100 [00:23<00:58, 1.22it/s]
Distribution of cell niches (centers) converge at iteration 30.
17 cell niches left.
Merging cell niche 4 and cell niche 6...
Done!
Assigning cells to cell niche...
Current state: [0, 1, 2, 4, 5, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 19]
31%|███ | 31/100 [00:24<00:55, 1.25it/s]
Distribution of cell niches (centers) converge at iteration 32.
16 cell niches left.
Merging cell niche 14 and cell niche 4...
Done!
Assigning cells to cell niche...
Current state: [0, 1, 2, 5, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 19]
13%|█▎ | 13/100 [00:10<01:11, 1.22it/s]
Distribution of cell niches (centers) converge at iteration 14.
15 cell niches left.
Merging cell niche 14 and cell niche 8...
Done!
Assigning cells to cell niche...
Current state: [0, 1, 2, 5, 7, 9, 10, 12, 13, 14, 15, 16, 18, 19]
9%|▉ | 9/100 [00:07<01:14, 1.22it/s]
Distribution of cell niches (centers) converge at iteration 10.
14 cell niches left.
Merging cell niche 14 and cell niche 10...
Done!
Assigning cells to cell niche...
Current state: [0, 1, 2, 5, 7, 9, 12, 13, 14, 15, 16, 18, 19]
27%|██▋ | 27/100 [00:20<00:54, 1.34it/s]
Distribution of cell niches (centers) converge at iteration 28.
13 cell niches left.
Merging cell niche 15 and cell niche 19...
Done!
Assigning cells to cell niche...
Current state: [0, 1, 2, 5, 7, 9, 12, 13, 14, 15, 16, 18]
9%|▉ | 9/100 [00:07<01:12, 1.25it/s]
Distribution of cell niches (centers) converge at iteration 10.
12 cell niches left.
Merging cell niche 7 and cell niche 14...
Done!
Assigning cells to cell niche...
Current state: [0, 1, 2, 5, 7, 9, 12, 13, 15, 16, 18]
5%|▌ | 5/100 [00:04<01:21, 1.17it/s]
Distribution of cell niches (centers) converge at iteration 6.
11 cell niches left.
Merging cell niche 2 and cell niche 9...
Done!
Assigning cells to cell niche...
Current state: [0, 1, 2, 5, 7, 12, 13, 15, 16, 18]
6%|▌ | 6/100 [00:04<01:15, 1.25it/s]
Distribution of cell niches (centers) converge at iteration 7.
10 cell niches left.
Merging cell niche 7 and cell niche 5...
Done!
Assigning cells to cell niche...
Current state: [0, 1, 2, 7, 12, 13, 15, 16, 18]
11%|█ | 11/100 [00:07<01:02, 1.42it/s]
Distribution of cell niches (centers) converge at iteration 12.
9 cell niches left.
Merging cell niche 16 and cell niche 7...
Done!
Assigning cells to cell niche...
Current state: [0, 1, 2, 12, 13, 15, 16, 18]
6%|▌ | 6/100 [00:04<01:07, 1.39it/s]
Distribution of cell niches (centers) converge at iteration 7.
8 cell niches left.
Merging cell niche 13 and cell niche 15...
Done!
Assigning cells to cell niche...
Current state: [0, 1, 2, 12, 13, 16, 18]
3%|▎ | 3/100 [00:02<01:34, 1.02it/s]
Distribution of cell niches (centers) converge at iteration 4.
7 cell niches left.
Merging cell niche 0 and cell niche 18...
Done!
Assigning cells to cell niche...
Current state: [0, 1, 2, 12, 13, 16]
1%| | 1/100 [00:02<03:33, 2.15s/it]
Distribution of cell niches (centers) converge at iteration 2.
6 cell niches left.
Merging cell niche 2 and cell niche 13...
Done!
Assigning cells to cell niche...
Current state: [0, 1, 2, 12, 16]
2%|▏ | 2/100 [00:02<02:22, 1.45s/it]
Distribution of cell niches (centers) converge at iteration 3.
5 cell niches left.
Merging cell niche 2 and cell niche 1...
Done!
Assigning cells to cell niche...
Current state: [0, 2, 12, 16]
2%|▏ | 2/100 [00:02<02:08, 1.31s/it]
Distribution of cell niches (centers) converge at iteration 3.
4 cell niches left.
Merging cell niche 2 and cell niche 12...
Done!
Assigning cells to cell niche...
Current state: [0, 2, 16]
1%| | 1/100 [00:01<02:31, 1.53s/it]
Distribution of cell niches (centers) converge at iteration 2.
3 cell niches left.
Merging cell niche 2 and cell niche 0...
Done!
Assigning cells to cell niche...
Current state: [2, 16]
2%|▏ | 2/100 [00:02<01:43, 1.05s/it]
Distribution of cell niches (centers) converge at iteration 3.
2 cell niches left.
Niche count no more than 2.
Finished!

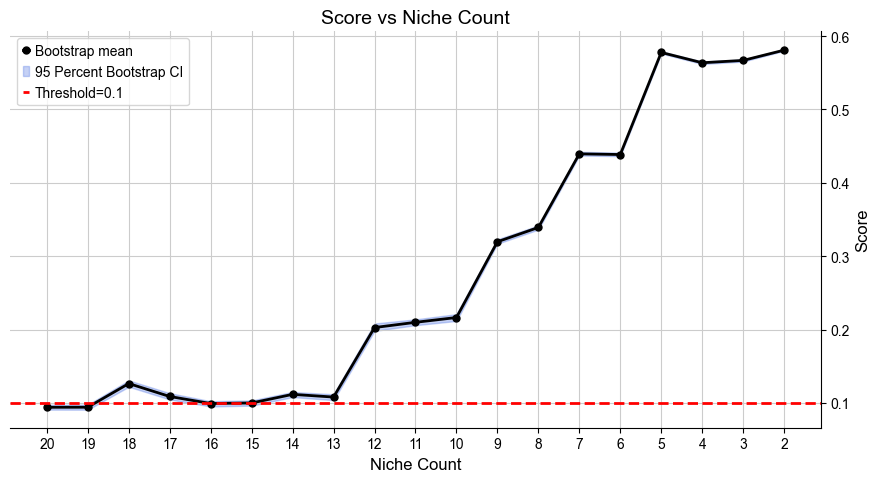

Metric-guided solution selection
metric=’jsd_v2’: bootstrap-based minJSD strategy

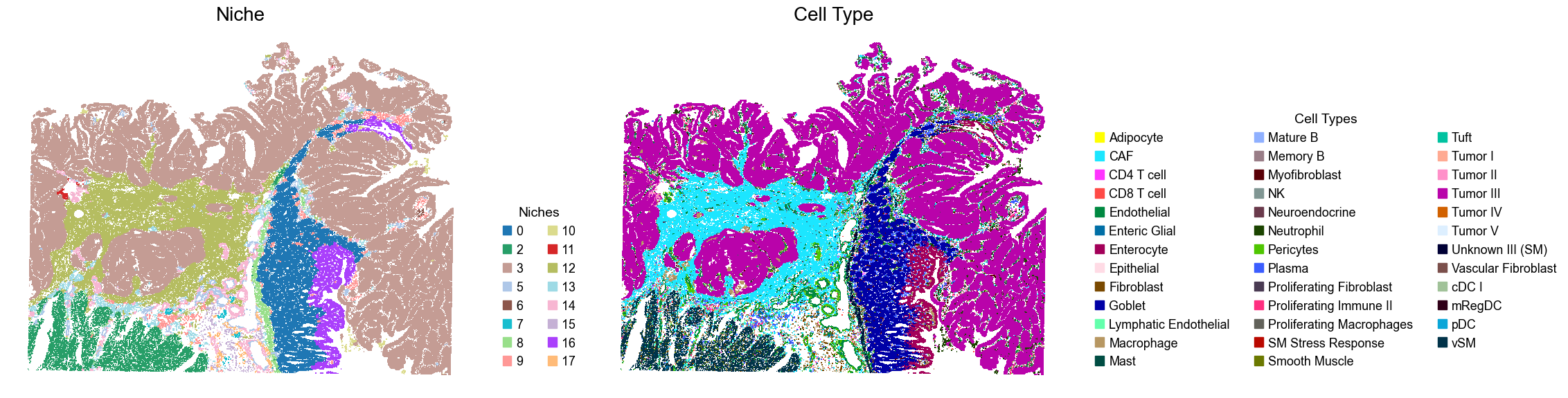

The results of niche assignments are saved in .obs[niche_key]
[9]:
adata_list, adata_concat = model.select_solution(n_niche=None,
niche_key='niche_label', # default
auto=True,
metric='jsd_v2', # default
threshold=0.1, # default
return_adata=True, # default
plot=True, # default
save=False, # default
fig_size=(9, 5), # default
save_dir=save_dir,
file_name=f'score_vs_nichecount_basic.pdf',
)
Automatically selecting best solution...
100%|██████████| 100/100 [00:07<00:00, 12.79it/s]
100%|██████████| 100/100 [00:07<00:00, 12.63it/s]
100%|██████████| 100/100 [00:07<00:00, 13.51it/s]
100%|██████████| 100/100 [00:07<00:00, 12.91it/s]
100%|██████████| 100/100 [00:07<00:00, 13.25it/s]
100%|██████████| 100/100 [00:07<00:00, 13.52it/s]
100%|██████████| 100/100 [00:07<00:00, 13.52it/s]
100%|██████████| 100/100 [00:07<00:00, 13.78it/s]
100%|██████████| 100/100 [00:07<00:00, 14.03it/s]
100%|██████████| 100/100 [00:07<00:00, 13.59it/s]
100%|██████████| 100/100 [00:06<00:00, 14.34it/s]
100%|██████████| 100/100 [00:06<00:00, 15.66it/s]
100%|██████████| 100/100 [00:05<00:00, 17.00it/s]
100%|██████████| 100/100 [00:05<00:00, 16.99it/s]
100%|██████████| 100/100 [00:05<00:00, 18.13it/s]
100%|██████████| 100/100 [00:05<00:00, 18.37it/s]
100%|██████████| 100/100 [00:05<00:00, 17.73it/s]
100%|██████████| 100/100 [00:05<00:00, 18.16it/s]
100%|██████████| 100/100 [00:05<00:00, 18.64it/s]
Suggested range of niche count is from 14 to 18.
Recommended number of niches are [18, 14]
Selecting 18 niches as the best solution.
Done!
Save and reload the results, and normalize the data for downstream analysis
[ ]:
adata_concat.write_h5ad(save_dir + f'Harmonics_result_0.h5ad')
[5]:
adata_concat = ad.read_h5ad(save_dir + f'Harmonics_result_0.h5ad')
for i, slice_name in enumerate(slice_name_list):
adata = adata_concat[adata_concat.obs['slice_name'] == slice_name, :].copy()
mt_mask = adata.var_names.str.startswith('MT-')
adata = adata[:, ~mt_mask].copy()
# sc.pp.filter_genes(adata, min_cells=100)
print(f'{adata.shape[1]} genes left for {slice_name_list[i]}.')
sc.pp.normalize_total(adata, target_sum=1e4)
sc.pp.log1p(adata)
# sc.pp.highly_variable_genes(adata, n_top_genes=3000, flavor='seurat_v3')
# adata = adata[:, adata.var['highly_variable']].copy()
adata_list[i] = adata
adata_concat_new = adata_concat.copy()
adata_concat_new
18074 genes left for P1CRC.
18074 genes left for P2CRC.
18074 genes left for P5CRC.
[5]:
AnnData object with n_obs × n_vars = 810099 × 18085
obs: 'tissue', 'X', 'Y', 'DeconvolutionClass', 'DeconvolutionLabel1', 'DeconvolutionLabel2', 'Periphery', 'UnsupervisedL1', 'UnsupervisedL2', 'MacrophageSubtype', 'GobletSubcluster', 'slice_name', 'celltype_idx', 'n_neighbors', 'niche_label_jsd', 'niche_label_jsd_v2', 'niche_label_fmi', 'niche_label_ari', 'niche_label_nmi', 'niche_label_asw', 'niche_label_js_asw', 'niche_label_fisher', 'niche_label_chi', 'niche_label_dbi', 'niche_label_dass_min', 'niche_label_dass_mean', 'niche_label_dafisher', 'niche_label_dachi', 'niche_label_0.09', 'niche_label_0.11', 'niche_label_20', 'niche_label_19', 'niche_label_18', 'niche_label_17', 'niche_label_16', 'niche_label_15', 'niche_label_14', 'niche_label_13', 'niche_label_12', 'niche_label_11', 'niche_label_10', 'niche_label_9', 'niche_label_8', 'niche_label_7', 'niche_label_6', 'niche_label_5', 'niche_label_4', 'niche_label_3', 'niche_label_2', 'niche_label'
uns: 'ct2idx', 'idx2ct', 'niche_cell_count', 'niche_dist', 'niche_label_summary', 'score_dict'
obsm: 'micro_dist', 'onehot', 'spatial'

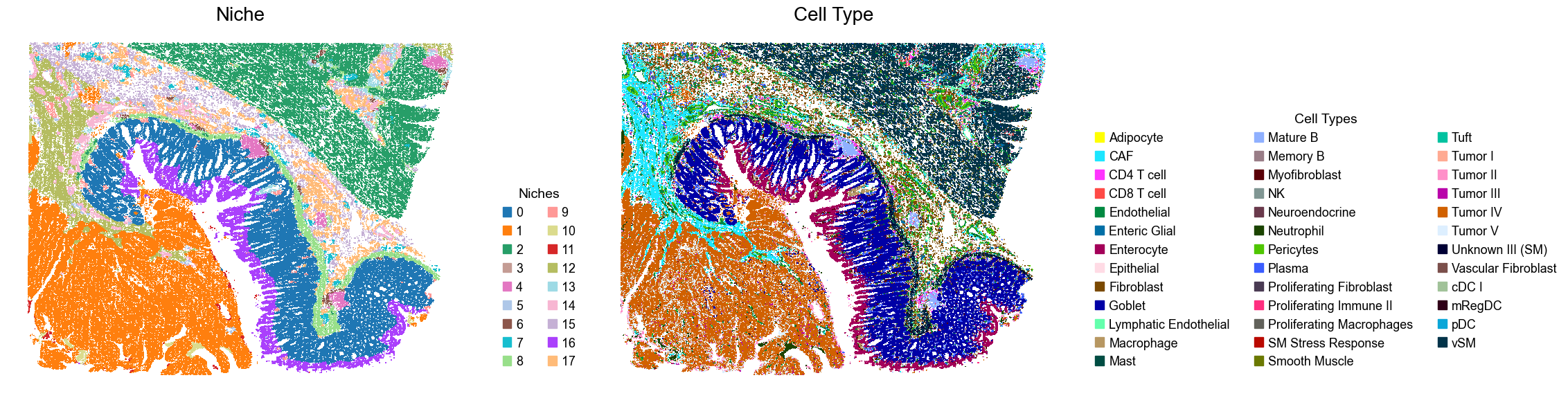

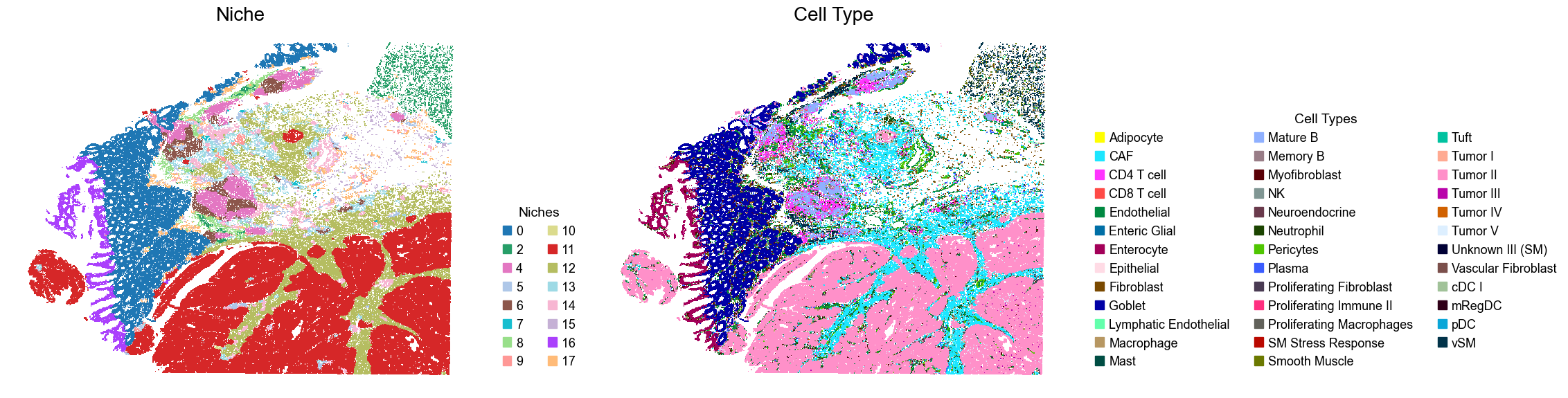

Plot the results
[ ]:
ct_colors = ['#ffff00', '#1ce6ff', '#ff34ff', '#ff4a46', '#008941', '#006fa6', '#a30059', '#ffdbe5', '#7a4900', '#0000a6',
'#63ffac', '#b79762', '#004d43', '#8fb0ff', '#997d87', '#5a0007', '#809693', '#6a3a4c', '#1b4400', '#4fc601',
'#3b5dff', '#4a3b53', '#ff2f80', '#61615a', '#ba0900', '#6b7900', '#00c2a0', '#ffaa92', '#ff90c9', '#b903aa',
'#d16100', '#ddefff', '#000035', '#7b4f4b', '#a1c299', '#300018', '#0aa6d8', '#013349']
celltypes = ['Adipocyte', 'CAF', 'CD4 T cell', 'CD8 T cell', 'Endothelial', 'Enteric Glial', 'Enterocyte', 'Epithelial',
'Fibroblast', 'Goblet', 'Lymphatic Endothelial', 'Macrophage', 'Mast', 'Mature B', 'Memory B', 'Myofibroblast',
'NK', 'Neuroendocrine', 'Neutrophil', 'Pericytes', 'Plasma', 'Proliferating Fibroblast', 'Proliferating Immune II',
'Proliferating Macrophages', 'SM Stress Response', 'Smooth Muscle', 'Tuft', 'Tumor I', 'Tumor II', 'Tumor III',
'Tumor IV', 'Tumor V', 'Unknown III (SM)', 'Vascular Fibroblast', 'cDC I', 'mRegDC', 'pDC', 'vSM']
ct_color_dict = {ct: color for ct, color in zip(celltypes, ct_colors)}
niches = adata_concat_new.uns['niche_label_summary']
niche_colors = ['#1f77b4', '#ff7f0e', '#279e68', '#c49c94', '#e377c2', '#aec7e8', '#8c564b', '#17becf',
'#98df8a', '#ff9896', '#dbdb8d', '#d62728', '#b5bd61', '#9edae5', '#f7b6d2', '#c5b0d5',
'#aa40fc', '#ffbb78',]
niche_color_dict = {niche: color for niche, color in zip(niches, niche_colors)}
[24]:
for i, slice_name in enumerate(slice_name_list):
adata = adata_concat[adata_concat.obs['slice_name'] == slice_name, :].copy()
fig, axes = plt.subplots(1, 2, figsize=(23, 6))
sc.pl.embedding(adata, basis='spatial', palette=niche_color_dict,
color='niche_label', ax=axes[0], frameon=False, marker='s', size=1, show=False)
axes[0].set_title('Niche', fontsize=20)
handles = [
mpatches.Patch(color=color, label=niche)
for niche, color in zip(niches, niche_colors) if niche in sorted(adata.obs['niche_label'].unique())
]
axes[0].legend(handles=handles, title='Niches', loc=(1.05, 0.05), frameon=False, handleheight=0.8, handlelength=0.7, ncol=2)
sc.pl.embedding(adata, basis='spatial', palette=ct_color_dict,
color='DeconvolutionLabel1', ax=axes[1], frameon=False, marker='s', size=1, show=False)
axes[1].set_title('Cell Type', fontsize=20)
handles = [
mpatches.Patch(color=color, label=ct)
for ct, color in zip(celltypes, ct_colors)
]
axes[1].legend(handles=handles, title='Cell Types', loc=(1.05, 0.05), frameon=False, handleheight=0.8, handlelength=0.7, ncol=3)
plt.tight_layout()
plt.show()

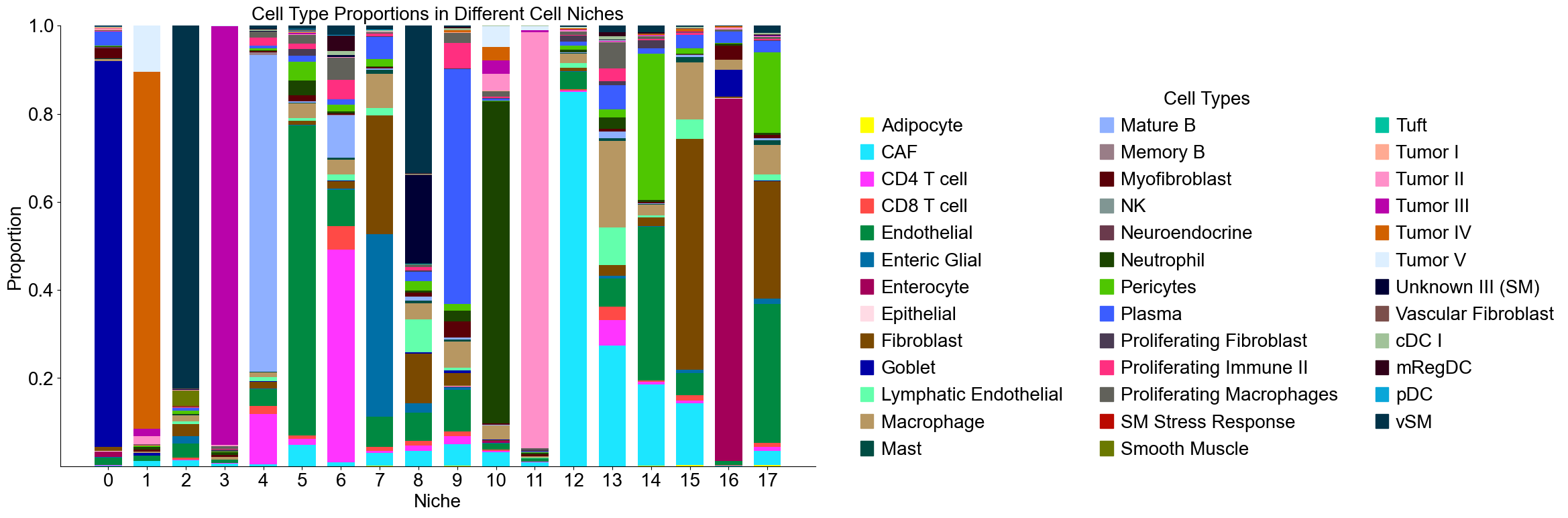

Cell type composition
[25]:
niche_labels = adata_concat_new.uns['niche_label_summary'].copy()
ct_labels = sorted(set(adata_concat_new.obs['DeconvolutionLabel1']))
niche_dist = adata_concat_new.uns['niche_dist'].toarray().copy()
cell_count_niche = adata_concat_new.uns['niche_cell_count'].copy()
fig, ax = plt.subplots(figsize=(24, 8))
bar_width = 0.7
n_niches, n_cell_types = niche_dist.shape
x = np.arange(n_niches)
for j in range(n_cell_types):
bottom = np.sum(niche_dist[:, :j], axis=1)
ax.bar(x,
niche_dist[:, j],
bottom=bottom,
width=bar_width,
color=ct_color_dict[ct_labels[j]],
label=ct_labels[j])
ax.set_ylabel('Proportion', fontsize=20)
ax.set_xlabel('Niche', fontsize=20)
ax.set_xticks(x)
ax.set_xticklabels(niche_labels, rotation=0, ha='center')
ax.tick_params(axis='x', labelsize=20)
ax.tick_params(axis='y', labelsize=20)
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
ax.grid(False)
handles = [
mpatches.Patch(color=color, label=ct)
for ct, color in zip(celltypes, ct_colors)
]
ax.legend(handles=handles, title='Cell Types', loc=(1.05, 0.0), frameon=False, handleheight=0.8,
handlelength=0.7, ncol=3, fontsize=20, title_fontsize=20)
plt.title('Cell Type Proportions in Different Cell Niches', fontsize=20)
plt.tight_layout()
plt.show()
Cell type enrichment analysis
[26]:
ct_df = ct_enrichment_test(adata_concat_new.uns['niche_dist'],
adata_concat_new.uns['niche_cell_count'],
adata_concat_new.uns['idx2ct'],
adata_concat_new.uns['niche_label_summary'],
method='fisher',
alpha=0.05,
fdr_method='fdr_by',
log2fc_threshold=1,
prop_threshold=0.01,
verbose=True,
)
ct_df.head()
18 niches and 38 cell types in total.
[26]:
| niche_idx | niche | celltype_idx | celltype | oddsratio | p-value | q-value | log2fc | prop | enrichment | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 | 0 | 0 | Adipocyte | 0.156672 | 3.814112e-05 | 4.030055e-04 | -2.673996 | 0.000023 | False |
| 1 | 0 | 0 | 1 | CAF | 0.004531 | 0.000000e+00 | 0.000000e+00 | -7.602693 | 0.000617 | False |
| 2 | 0 | 0 | 2 | CD4 T cell | 0.175155 | 2.748348e-201 | 7.589872e-200 | -2.504263 | 0.001333 | False |
| 3 | 0 | 0 | 3 | CD8 T cell | 0.139123 | 7.085927e-80 | 1.435030e-78 | -2.842306 | 0.000366 | False |
| 4 | 0 | 0 | 4 | Endothelial | 0.420286 | 0.000000e+00 | 0.000000e+00 | -1.215546 | 0.017809 | False |

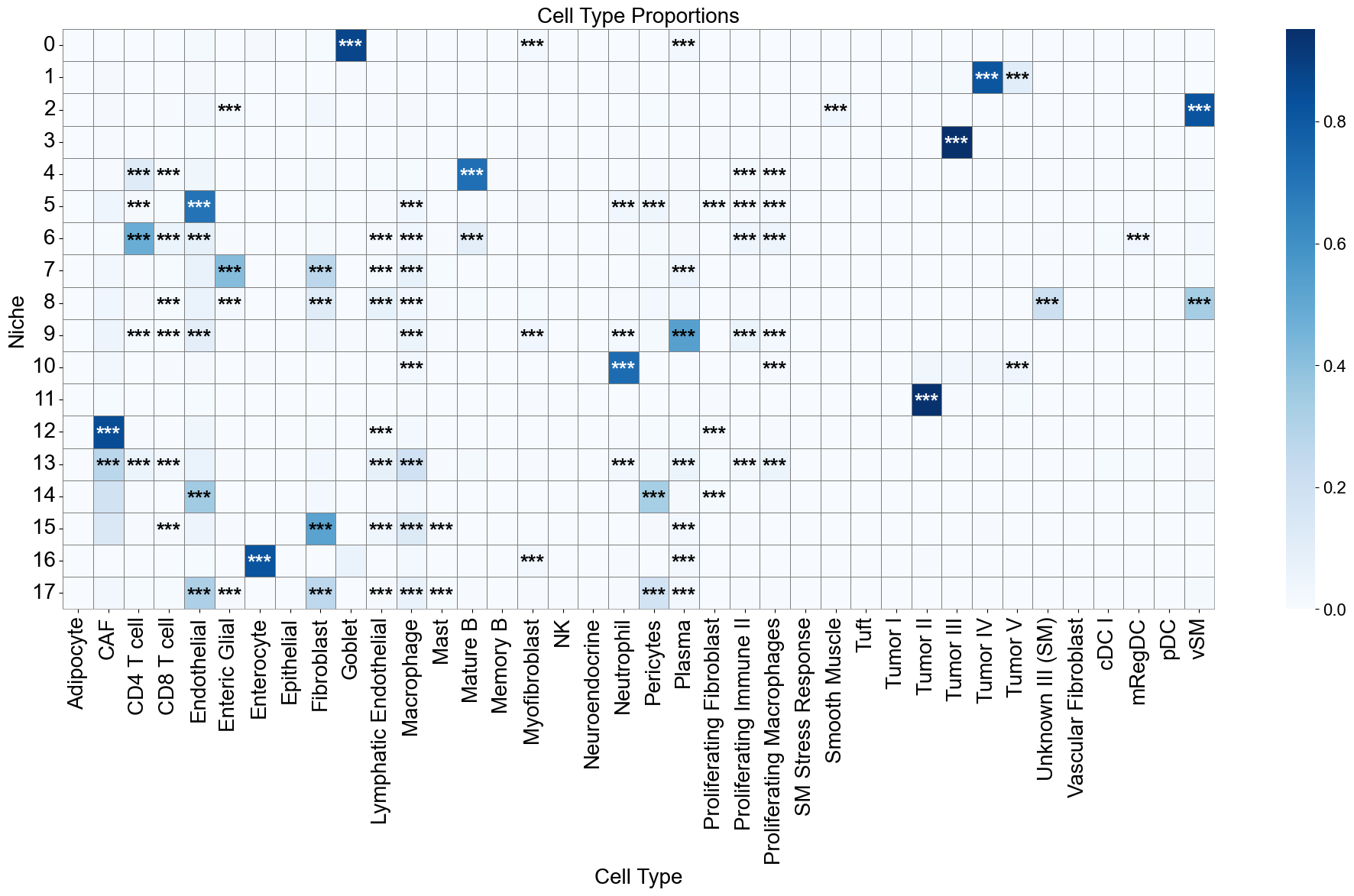

[27]:
niche_labels = adata_concat_new.uns['niche_label_summary'].copy()
ct_labels = sorted(adata_concat_new.obs['DeconvolutionLabel1'].unique())
matrix_df = pd.DataFrame(
data=adata_concat_new.uns['niche_dist'].toarray(),
index=niche_labels,
columns=ct_labels,
)
cn_dist_count = adata_concat_new.uns['niche_dist'].toarray() * adata_concat_new.uns['niche_cell_count'][:, np.newaxis]
cn_dist_norm = cn_dist_count / np.sum(cn_dist_count, axis=0)
matrix_df_norm = pd.DataFrame(
data=cn_dist_norm,
index=niche_labels,
columns=ct_labels,
)
ct_df['stars'] = ct_df['q-value'].apply(p2stars)
stars_df = pd.DataFrame(
'',
index=matrix_df.index,
columns=matrix_df.columns
)
for _, row in ct_df[ct_df['enrichment']].iterrows():
niche = row['niche']
ct = row['celltype']
if (niche in stars_df.index) and (ct in stars_df.columns):
stars_df.loc[niche, ct] = row['stars']
fig, axes = plt.subplots(1, 1, figsize=(20, 12))
sns_heatmap_0 = sns.heatmap(
matrix_df,
cmap='Blues',
# cbar_kws={'label': 'Cell type proportion'},
linewidths=0.5,
linecolor='gray',
# square=True,
ax=axes
)
for i, niche in enumerate(matrix_df.index):
for j, ct in enumerate(matrix_df.columns):
star = stars_df.iloc[i, j]
if star:
if matrix_df.iloc[i, j] > np.max(matrix_df.values) * 0.7:
color='white'
else:
color='black'
axes.text(j + 0.5, i + 0.6, star, ha='center', va='center', color=color, fontsize=20, fontweight='bold')
n_rows, n_cols = matrix_df.shape
axes.plot([0, n_cols], [n_rows, n_rows], color='gray', linewidth=0.5, clip_on=False)
axes.plot([n_cols, n_cols], [0, n_rows], color='gray', linewidth=0.5, clip_on=False)
axes.set_xticklabels(axes.get_xticklabels(), rotation=90, ha='center', fontsize=20)
axes.set_yticklabels(axes.get_yticklabels(), rotation=0, ha='right', fontsize=20)
axes.set_ylabel('Niche', fontsize=20)
axes.set_xlabel('Cell Type', fontsize=20)
axes.set_title('Cell Type Proportions', fontsize=20)
axes.collections[0].colorbar.ax.yaxis.label.set_size(20)
axes.collections[0].colorbar.ax.tick_params(labelsize=16)
axes.grid(False)
plt.tight_layout()
plt.show()
fig, axes = plt.subplots(1, 1, figsize=(20, 12))
sns_heatmap_1 = sns.heatmap(
matrix_df_norm,
cmap='Blues',
# cbar_kws={'label': 'Cell type proportion'},
linewidths=0.5,
linecolor='gray',
# square=True,
ax=axes
)
for i, niche in enumerate(matrix_df.index):
for j, ct in enumerate(matrix_df.columns):
star = stars_df.iloc[i, j]
if star:
if matrix_df_norm.iloc[i, j] > np.max(matrix_df_norm.values) * 0.7:
color='white'
else:
color='black'
axes.text(j + 0.5, i + 0.6, star, ha='center', va='center', color=color, fontsize=20, fontweight='bold')
n_rows, n_cols = matrix_df.shape
axes.plot([0, n_cols], [n_rows, n_rows], color='gray', linewidth=0.5, clip_on=False)
axes.plot([n_cols, n_cols], [0, n_rows], color='gray', linewidth=0.5, clip_on=False)
axes.set_xticklabels(axes.get_xticklabels(), rotation=90, ha='center', fontsize=20)
axes.set_yticklabels(axes.get_yticklabels(), rotation=0, ha='right', fontsize=20)
axes.set_ylabel('Niche', fontsize=20)
axes.set_xlabel('Cell Type', fontsize=20)

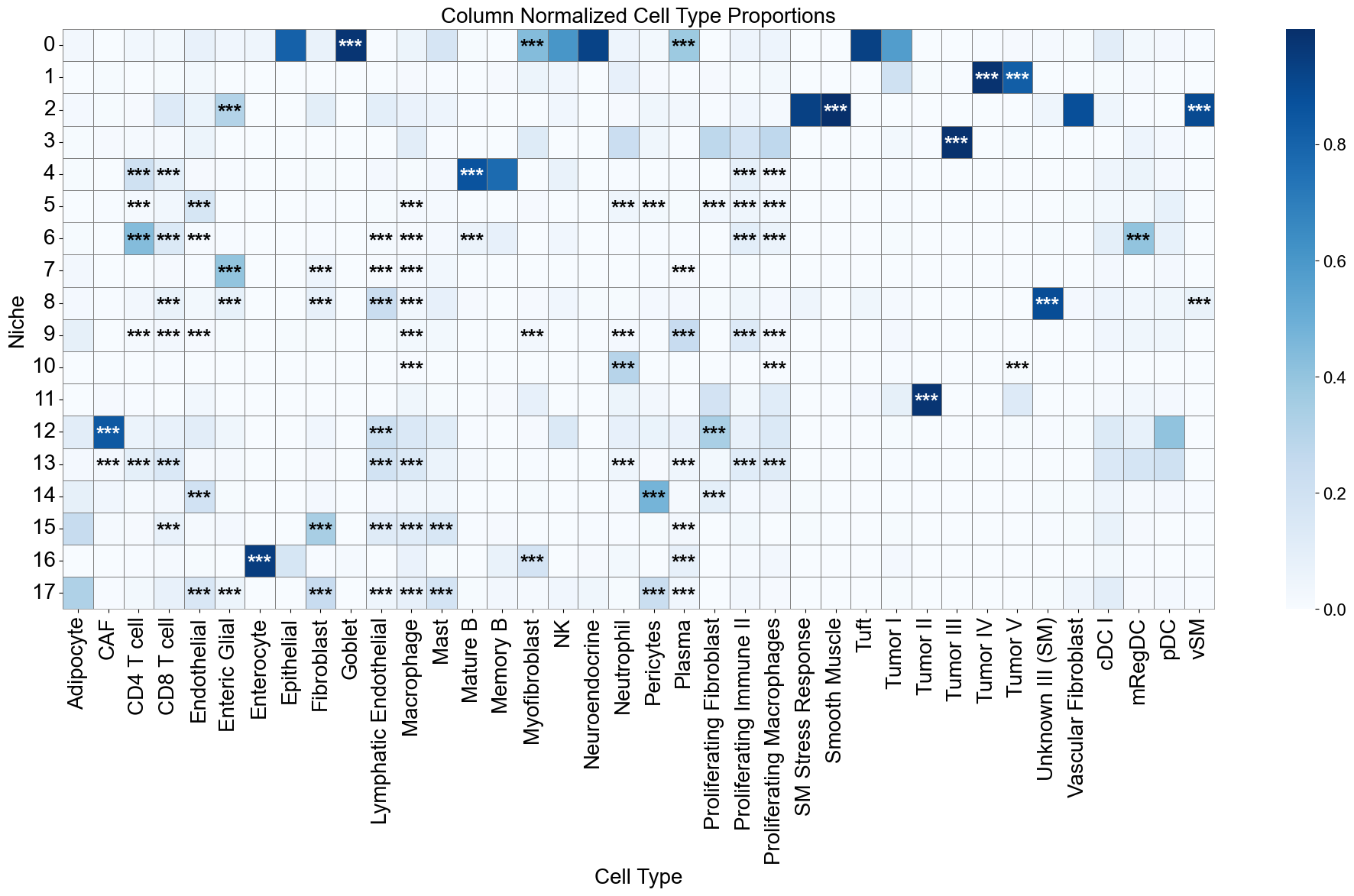

axes.set_title('Column Normalized Cell Type Proportions', fontsize=20)
axes.collections[0].colorbar.ax.yaxis.label.set_size(20)
axes.collections[0].colorbar.ax.tick_params(labelsize=16)
axes.grid(False)
plt.tight_layout()
plt.show()
Niche-niche co-localization analysis
[28]:
nnc_results = nnc_enrichment_test(adata_list,
'niche_label',
niche_summary=adata_concat_new.uns['niche_label_summary'],
spatial_key='spatial',
cut_percentage=99,
method='fisher',
alpha=0.05,
fdr_method='fdr_by',
log2fc_threshold=1,
prop_threshold=0.01,
verbose=True,
)
nnc_df, edge_prop_mtx, n1_count = nnc_results
nnc_df.head()
18 niches in total.
[28]:
| niche1_idx | niche1 | niche2_idx | niche2 | edge_count | edge_prop | oddsratio | p-value | q-value | log2fc | enrichment | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 | 0 | 1 | 1 | 175.0 | 0.015354 | 0.683833 | 3.446344e-07 | 2.480011e-06 | -0.538079 | False |
| 1 | 0 | 0 | 2 | 2 | 50.0 | 0.004387 | 0.100547 | 5.006247e-136 | 1.122648e-134 | -3.258533 | False |
| 2 | 0 | 0 | 3 | 3 | 342.0 | 0.030005 | 0.659959 | 5.901670e-15 | 4.905877e-14 | -0.577418 | False |
| 3 | 0 | 0 | 4 | 4 | 406.0 | 0.035620 | 1.893670 | 4.192136e-28 | 4.042361e-27 | 0.896727 | False |
| 4 | 0 | 0 | 5 | 5 | 620.0 | 0.054396 | 0.740084 | 1.952065e-13 | 1.568602e-12 | -0.406938 | False |
[29]:
niche_labels = adata_concat_new.uns['niche_label_summary'].copy()
nnc_df['stars'] = nnc_df['q-value'].apply(p2stars)
matrix_df = pd.DataFrame(
data=edge_prop_mtx,
index=niche_labels,
columns=niche_labels,
)
for i in range(matrix_df.shape[0]):
for j in range(matrix_df.shape[1]):
if i == j:
matrix_df.iloc[i, j] = np.nan
stars_df = pd.DataFrame(
'',
index=matrix_df.index,
columns=matrix_df.columns
)
for _, row in nnc_df[nnc_df['enrichment']].iterrows():
n1 = row['niche1']
n2 = row['niche2']
if (n1 in stars_df.index) and (n2 in stars_df.columns):
stars_df.loc[n1, n2] = row['stars']
plt.figure(figsize=(12, 10))
ax = sns.heatmap(
matrix_df,
cmap='Greens',
# cbar_kws={'label': 'Edge type proportion'},
linewidths=0.7,
linecolor='gray',
# square=True,
)
for i, n1 in enumerate(matrix_df.index):
for j, n2 in enumerate(matrix_df.columns):
if i == j:
ax.plot([i, i+1], [i, i+1], color='gray', linewidth=0.7)
# ax.plot([i+1, i], [i, i+1], color='gray', linewidth=0.7)
continue
star = stars_df.iloc[i, j]
if star:
if matrix_df.iloc[i, j] > np.nanmax(matrix_df.values) * 0.7:
color='white'
else:
color='black'
ax.text(j + 0.5, i + 0.6, star, ha='center', va='center', color=color, fontsize=30, fontweight='bold')
n_rows, n_cols = matrix_df.shape
ax.plot([0, n_cols], [n_rows, n_rows], color='gray', linewidth=0.7, clip_on=False)
ax.plot([n_cols, n_cols], [0, n_rows], color='gray', linewidth=0.7, clip_on=False)
ax.set_xticklabels(ax.get_xticklabels(), rotation=0, ha='center', fontsize=30)
ax.set_yticklabels(ax.get_yticklabels(), rotation=0, ha='right', fontsize=30)
ax.set_ylabel('Niche', fontsize=30)
ax.set_xlabel('Niche', fontsize=30)

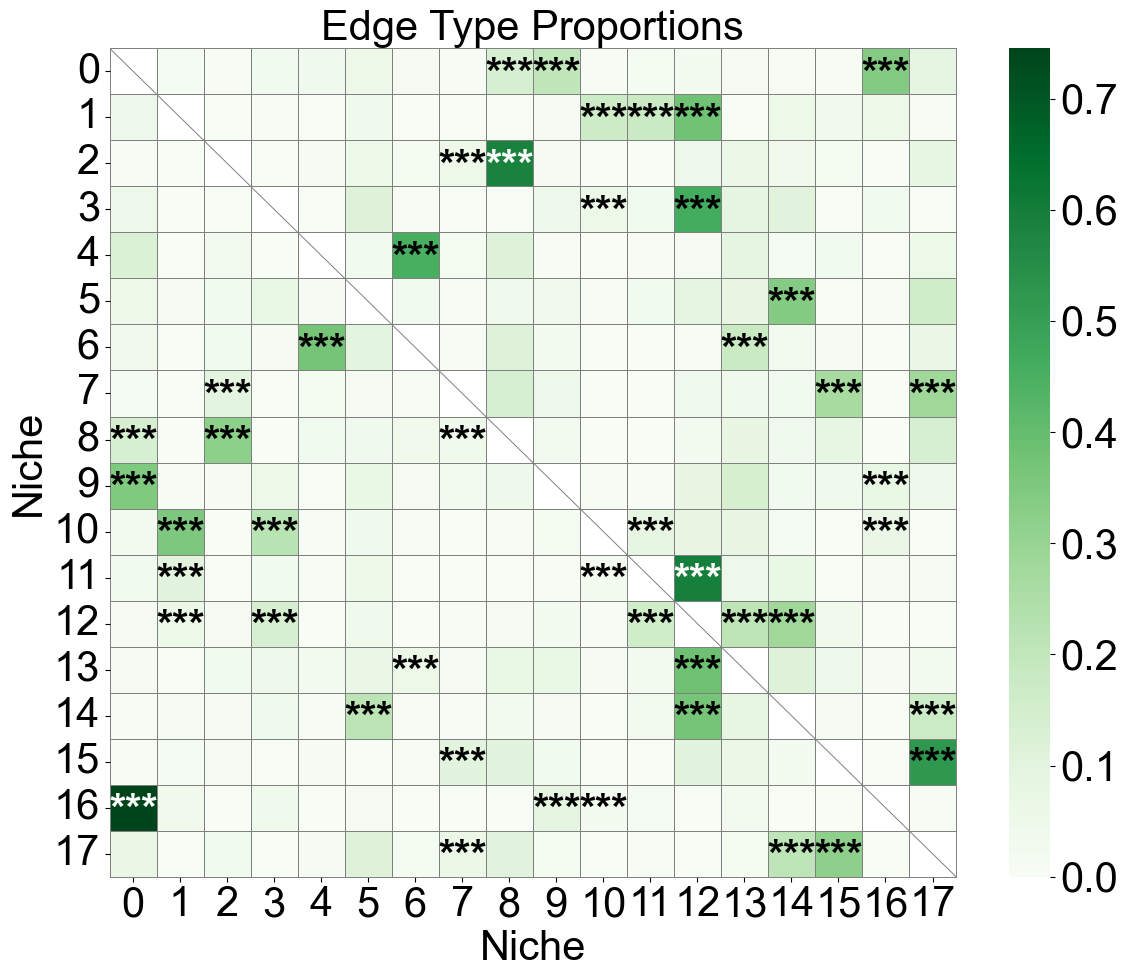

ax.set_title('Edge Type Proportions', fontsize=30)
ax.collections[0].colorbar.ax.yaxis.label.set_size(30)
ax.collections[0].colorbar.ax.tick_params(labelsize=30)
ax.grid(False)
plt.tight_layout()
plt.show()

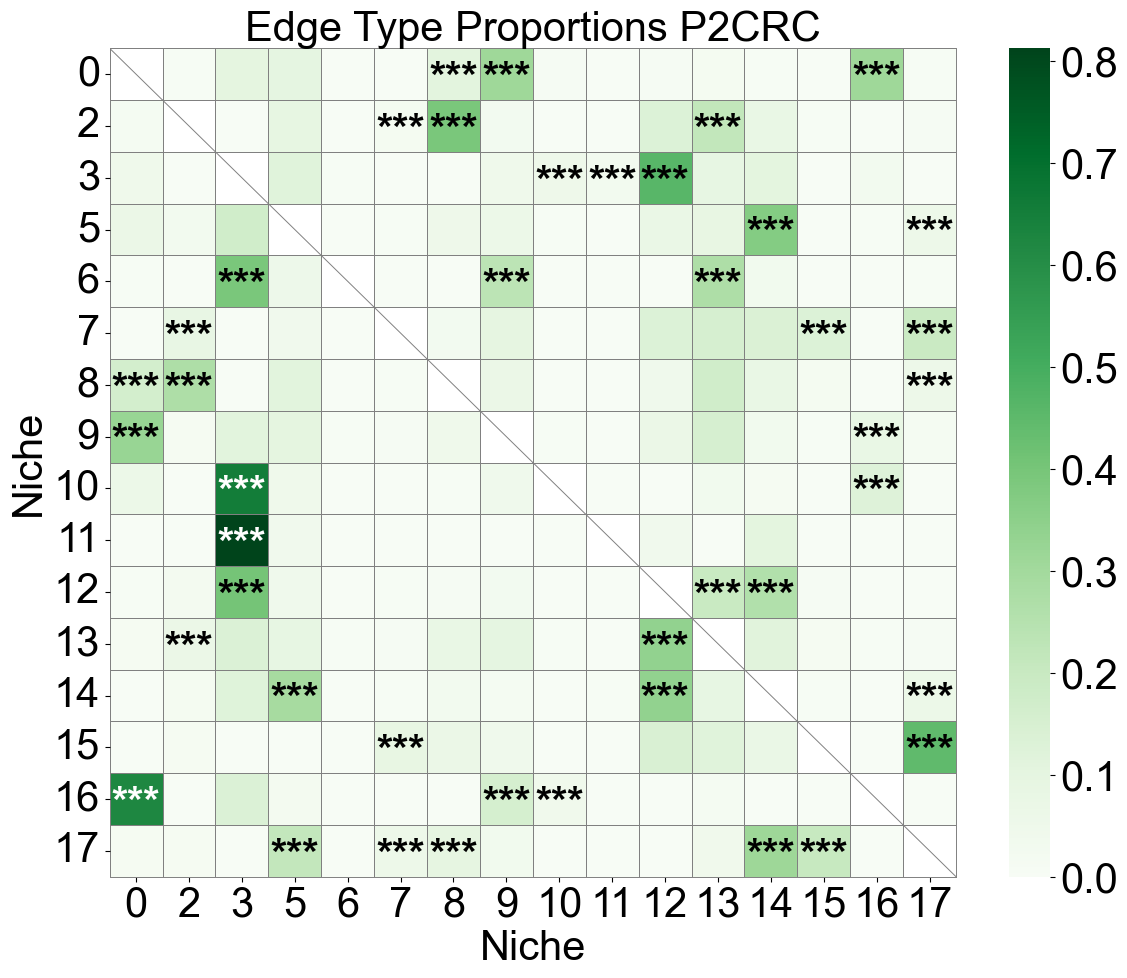

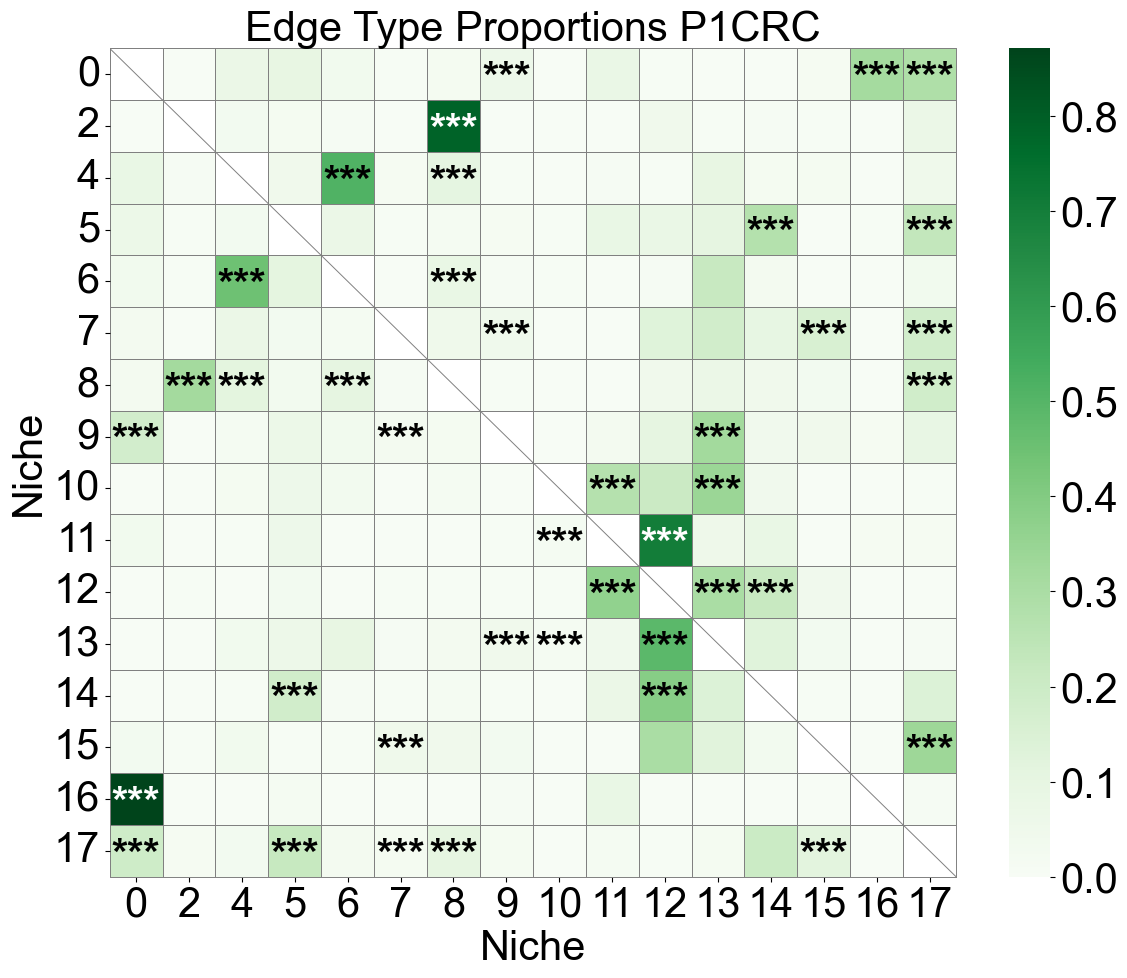

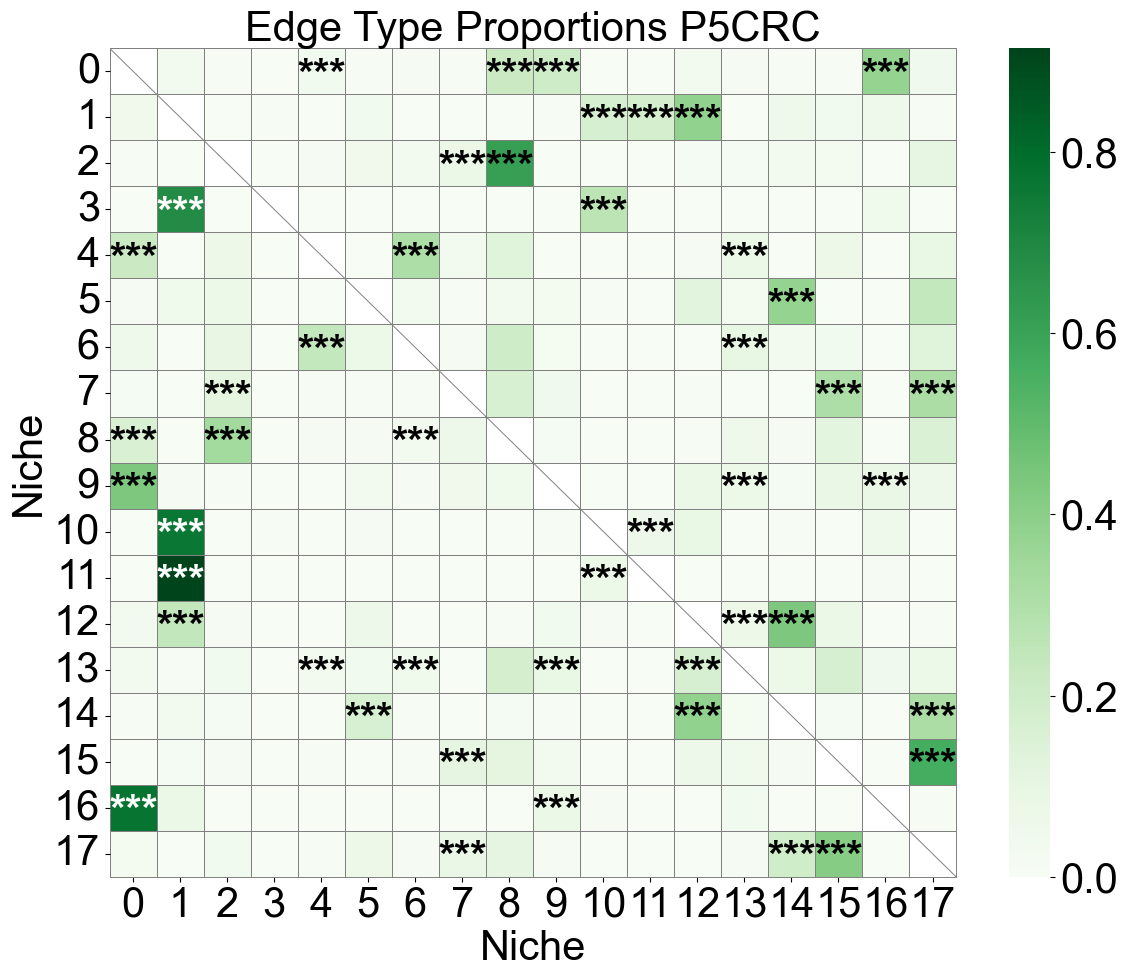

Niche-niche co-localization analysis for individual slice
[30]:
for s, slice_name in enumerate(slice_name_list):
current_sum = adata_list[s].obs['niche_label'].unique()
niche_labels = [label for label in adata_concat_new.uns['niche_label_summary'] if label in current_sum]
nnc_results = nnc_enrichment_test(adata_list[s],
'niche_label',
niche_summary=niche_labels,
spatial_key='spatial',
cut_percentage=99,
method='fisher',
alpha=0.05,
fdr_method='fdr_by',
log2fc_threshold=1,
prop_threshold=0.01,
verbose=True,
)
nnc_df, edge_prop_mtx, n1_count = nnc_results
nnc_df['stars'] = nnc_df['q-value'].apply(p2stars)
matrix_df = pd.DataFrame(
data=edge_prop_mtx,
index=niche_labels,
columns=niche_labels,
)
for i in range(matrix_df.shape[0]):
for j in range(matrix_df.shape[1]):
if i == j:
matrix_df.iloc[i, j] = np.nan
stars_df = pd.DataFrame(
'',
index=matrix_df.index,
columns=matrix_df.columns
)
for _, row in nnc_df[nnc_df['enrichment']].iterrows():
n1 = row['niche1']
n2 = row['niche2']
if (n1 in stars_df.index) and (n2 in stars_df.columns):
stars_df.loc[n1, n2] = row['stars']
plt.figure(figsize=(12, 10))
ax = sns.heatmap(
matrix_df,
cmap='Greens',
# cbar_kws={'label': 'Edge type proportion'},
linewidths=0.7,
linecolor='gray',
# square=True,
)
for i, n1 in enumerate(matrix_df.index):
for j, n2 in enumerate(matrix_df.columns):
if i == j:
ax.plot([i, i+1], [i, i+1], color='gray', linewidth=0.7)
# ax.plot([i+1, i], [i, i+1], color='gray', linewidth=0.7)
continue
star = stars_df.iloc[i, j]
if star:
if matrix_df.iloc[i, j] > np.nanmax(matrix_df.values) * 0.7:
color='white'
else:
color='black'
ax.text(j + 0.5, i + 0.6, star, ha='center', va='center', color=color, fontsize=30, fontweight='bold')
n_rows, n_cols = matrix_df.shape
ax.plot([0, n_cols], [n_rows, n_rows], color='gray', linewidth=0.7, clip_on=False)
ax.plot([n_cols, n_cols], [0, n_rows], color='gray', linewidth=0.7, clip_on=False)
ax.set_xticklabels(ax.get_xticklabels(), rotation=0, ha='center', fontsize=30)
ax.set_yticklabels(ax.get_yticklabels(), rotation=0, ha='right', fontsize=30)
ax.set_ylabel('Niche', fontsize=30)
ax.set_xlabel('Niche', fontsize=30)
ax.set_title(f'Edge Type Proportions {slice_name}', fontsize=30)
ax.collections[0].colorbar.ax.yaxis.label.set_size(30)
ax.collections[0].colorbar.ax.tick_params(labelsize=30)
ax.grid(False)
plt.tight_layout()
plt.show()
16 niches in total.
16 niches in total.
18 niches in total.
Cell-cell interaction analysis
[31]:
cci_results = cci_enrichment_test(adata_list,
'niche_label',
'DeconvolutionLabel1',
niche_summary=adata_concat_new.uns['niche_label_summary'],
spatial_key='spatial',
cut_percentage=99,
method='fisher',
alpha=0.05,
fdr_method='fdr_by',
log2fc_threshold=1,
prop_threshold=0.01,
verbose=True,
)
cci_df, test_norm_list, bg_norm_list, test_edge_count_list, bg_edge_count_list = cci_results
18 niches and 38 cell types in total.
Testing niche 0...
Testing niche 1...
Testing niche 2...
Testing niche 3...
Testing niche 4...
Testing niche 5...
Testing niche 6...
Testing niche 7...
Testing niche 8...
Testing niche 9...
Testing niche 10...
Testing niche 11...
Testing niche 12...
Testing niche 13...
Testing niche 14...
Testing niche 15...
Testing niche 16...
Testing niche 17...
Finished!
[32]:
niche_labels = adata_concat_new.uns['niche_label_summary'].copy()
ct_labels = sorted(adata_concat_new.obs['DeconvolutionLabel1'].unique())
cci_df['stars'] = cci_df['q-value'].apply(p2stars)
figrows = 18
figcols = 1
fig, axes = plt.subplots(figrows, figcols, figsize=(18, 300))
for idx in range(figrows * figcols):
imgrow = idx // figcols
imgcol = idx % figcols
if figcols == 1 and figrows == 1:
ax = axes
elif figrows == 1:
ax = axes[imgcol]
elif figcols == 1:
ax = axes[imgrow]
else:
ax = axes[imgrow, imgcol]
if idx >= len(niche_labels):
ax.axis('off')
continue
sub_df = cci_df[cci_df['niche_idx'] == idx]
matrix_df = pd.DataFrame(
data=test_norm_list[idx],
index=ct_labels,
columns=ct_labels,
)
for i in range(matrix_df.shape[0]):
for j in range(matrix_df.shape[1]):
if i < j:
matrix_df.iloc[i, j] = np.nan
stars_df = pd.DataFrame(
'',
index=matrix_df.index,
columns=matrix_df.columns
)
for _, row in sub_df[sub_df['enrichment']].iterrows():
ct1 = row['ct1']
ct2 = row['ct2']
if (ct1 in stars_df.index) and (ct2 in stars_df.columns):
stars_df.loc[ct1, ct2] = row['stars']
sns_heatmap = sns.heatmap(
matrix_df,
cmap='Oranges',
mask=matrix_df.isna(),
# cbar_kws={'label': 'Edge type proportion'},
# linewidths=0.5,
# linecolor='gray',
# square=True,
ax=ax,
)
n_rows, n_cols = matrix_df.shape
for i, ct1 in enumerate(matrix_df.index):
ax.plot([0, i+1], [i, i], color='gray', linewidth=0.5, clip_on=False)
ax.plot([i+1, i+1], [i, n_rows], color='gray', linewidth=0.5, clip_on=False)
for j, ct2 in enumerate(matrix_df.columns):
star = stars_df.iloc[i, j]
if star:
if matrix_df.iloc[i, j] > np.nanmax(matrix_df.values) * 0.7:
color='white'
else:
color='black'
ax.text(j + 0.5, i + 0.6, star, ha='center', va='center', color=color, fontsize=20, fontweight='bold')
ax.plot([0, 0], [0, n_rows], color='gray', linewidth=0.5, clip_on=False)
ax.plot([0, n_cols], [n_rows, n_rows], color='gray', linewidth=0.5, clip_on=False)
# ax.plot([0, n_cols], [n_rows, n_rows], color='gray', linewidth=0.5, clip_on=False)
# ax.plot([n_cols, n_cols], [0, n_rows], color='gray', linewidth=0.5, clip_on=False)
ax.set_xticklabels(ax.get_xticklabels(), rotation=90, ha='center', fontsize=20)
ax.set_yticklabels(ax.get_yticklabels(), rotation=0, ha='right', fontsize=20)
ax.set_ylabel('Cell Type', fontsize=20)
ax.set_xlabel('Cell Type', fontsize=20)
ax.set_title(f'Niche {niche_labels[idx]}', fontsize=20)
ax.collections[0].colorbar.ax.yaxis.label.set_size(20)
ax.collections[0].colorbar.ax.tick_params(labelsize=16)
ax.grid(False)
plt.tight_layout()
plt.show()

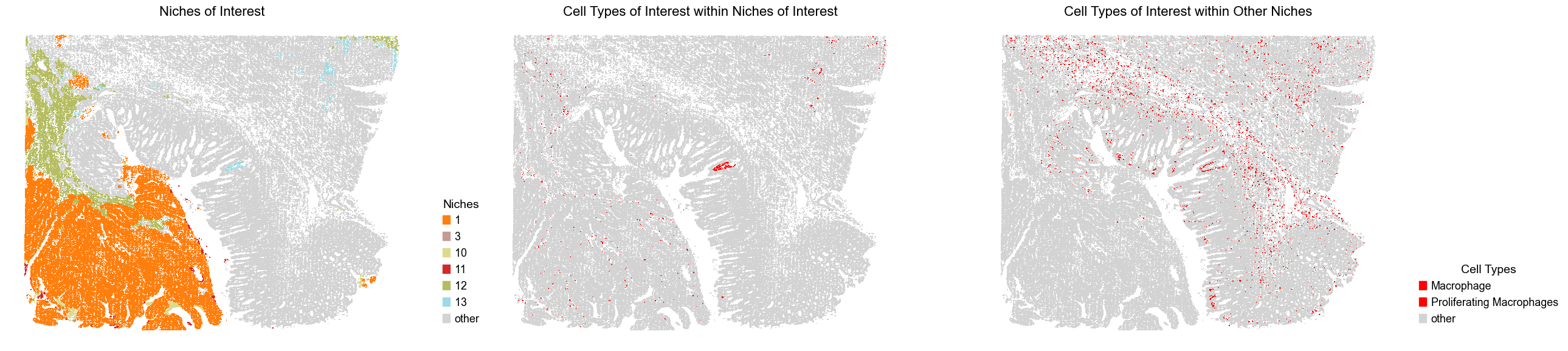

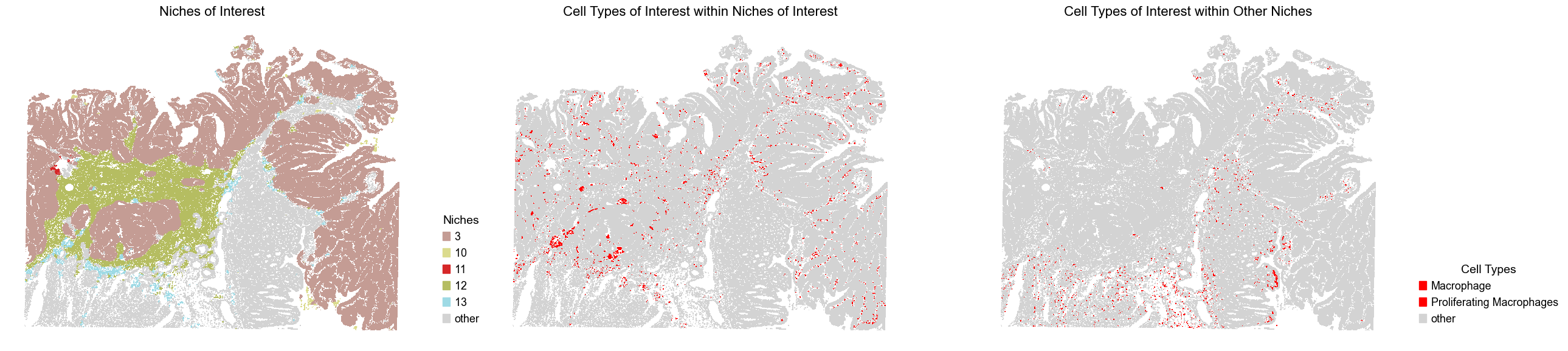

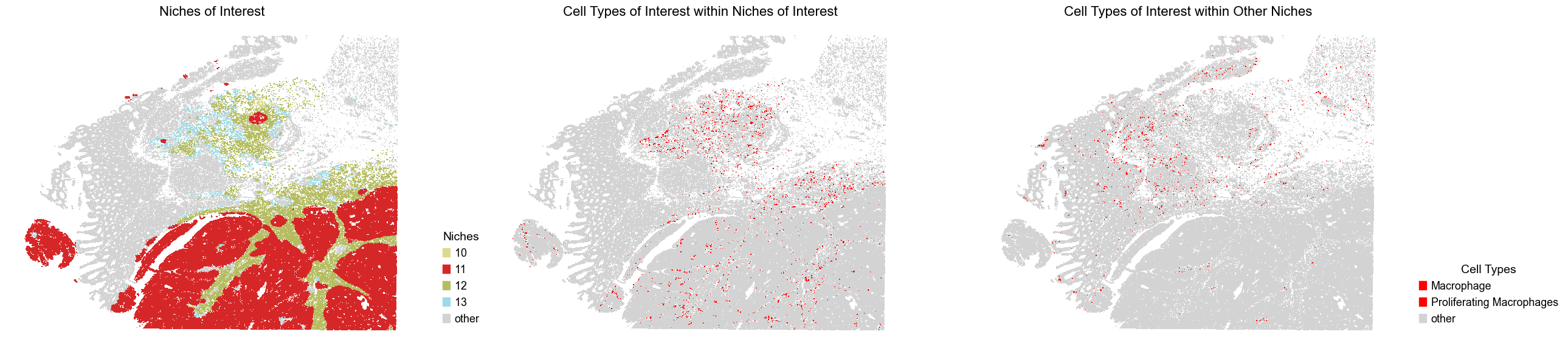

Macrophages (near tumor vs far from tumor)
We highlight macrophages and proliferating macrophages within the niches of interest (near tumor) compared to those located in other niches (far from tumor).
The first panel shows the selected niches of interest.
The second panel displays the spatial distribution of the macrophage populations within these niches.
The third panel shows the same macrophage populations outside the niches of interest, allowing direct visual comparison.
[7]:
ctoi_list = ['Macrophage', 'Proliferating Macrophages']
noi_list = ['1', '3', '11', '10', '12', '13']
# noi_list1 = ['1', '3', '11']
# noi_list2 = ['10', '12', '13']
niche_color_dict.update({'other': 'lightgray'})
ctoi_color_dict = {ct: 'red' for ct in ctoi_list}
ctoi_color_dict.update({'other': 'lightgray'})
for i in range(len(slice_name_list)):
adata_list[i].obs['noi'] = [label if label in noi_list else 'other' for label in adata_list[i].obs['niche_label']]
adata_list[i].obs['ctoi'] = [label if ((label in ctoi_list) & (adata_list[i].obs['noi'][idx] != 'other')) else 'other'
for idx, label in enumerate(adata_list[i].obs['DeconvolutionLabel1'])]
adata_list[i].obs['ctoi_other'] = [label if ((label in ctoi_list) & (adata_list[i].obs['noi'][idx] == 'other')) else 'other'
for idx, label in enumerate(adata_list[i].obs['DeconvolutionLabel1'])]
fig, axes = plt.subplots(1, 3, figsize=(26, 6))
sc.pl.embedding(adata_list[i], basis='spatial', palette=niche_color_dict,
color='noi', ax=axes[0], frameon=False, marker='s', size=1, show=False)
axes[0].set_title('Niches of Interest', fontsize=16)
handles = [
mpatches.Patch(color=color, label=niche)
for niche, color in zip(niche_color_dict.keys(), niche_color_dict.values()) if niche in sorted(adata_list[i].obs['noi'].unique())
]
axes[0].legend(handles=handles, title='Niches', loc=(1.05, 0.05), frameon=False, handleheight=0.8, handlelength=0.7, ncol=1)
sc.pl.embedding(adata_list[i], basis='spatial', palette=ctoi_color_dict,
color='ctoi', ax=axes[1], frameon=False, marker='s', size=1, show=False, legend_loc=None)
axes[1].set_title('Cell Types of Interest within Niches of Interest', fontsize=16)
# handles = [
# mpatches.Patch(color=color, label=niche)
# for niche, color in zip(ctoi_color_dict.keys(), ctoi_color_dict.values())
# ]
# axes[1].legend(handles=handles, title='Cell Types', loc=(1.05, 0.05), frameon=False, handleheight=0.8, handlelength=0.7, ncol=1)
sc.pl.embedding(adata_list[i], basis='spatial', palette=ctoi_color_dict,
color='ctoi_other', ax=axes[2], frameon=False, marker='s', size=1, show=False)
axes[2].set_title('Cell Types of Interest within Other Niches', fontsize=16)
handles = [
mpatches.Patch(color=color, label=niche)
for niche, color in zip(ctoi_color_dict.keys(), ctoi_color_dict.values())
]
axes[2].legend(handles=handles, title='Cell Types', loc=(1.05, 0.05), frameon=False, handleheight=0.8, handlelength=0.7, ncol=1)
plt.tight_layout()
plt.show()
Differential expression analysis of macrophages
For each slice, we extract macrophages of interest within the selected niches and those located in other niches.
The two groups are concatenated and genes expressed in fewer than 200 cells are filtered out.
Significant markers are selected based on adjusted p-values (< 0.01) and log fold change (> 0.2)
[8]:
qvals_thres = 0.01
logfc_thres = 0.2
df_list = [[] for _ in range(len(adata_list))]
adata_oi_list = []
volcano_list = []
for i in range(len(adata_list)):
# sc.pp.filter_genes(adata_list[i], min_cells=10)
# print(f'{adata_list[i].shape[0]} genes left for {slice_name_list[i]}.')
# sc.pp.normalize_total(adata_list[i], target_sum=1e4)
# sc.pp.log1p(adata_list[i])
# adata_oi = adata_list[i][(adata_list[i].obs['ctoi'] != 'other') & (adata_list[i].obs['niche_label'].isin(noi_list1)), :].copy()
# adata_oi2 = adata_list[i][(adata_list[i].obs['ctoi'] != 'other') & (adata_list[i].obs['niche_label'].isin(noi_list2)), :].copy()
adata_oi = adata_list[i][(adata_list[i].obs['ctoi'] != 'other') & (adata_list[i].obs['noi'] != 'other'), :].copy()
adata_others = adata_list[i][(adata_list[i].obs['ctoi_other'] != 'other') & (adata_list[i].obs['noi'] == 'other'), :].copy()
print(adata_oi.shape, adata_others.shape)
print((adata_oi.shape[0] + adata_others.shape[0]) / adata_list[i].shape[0])
adata_oi_concat = ad.concat([adata_oi, adata_others], label='oi_group', keys=['oi', 'other'])
sc.pp.filter_genes(adata_oi_concat, min_cells=200)
# sc.pp.highly_variable_genes(adata_oi_concat, n_top_genes=3000, flavor='seurat_v3')
# adata_oi_concat = adata_oi_concat[:, adata_oi_concat.var['highly_variable']].copy()
print(adata_oi_concat.shape)
sc.tl.rank_genes_groups(adata_oi_concat, groupby='oi_group', method='wilcoxon')
for group in ['oi', 'other']:
df = sc.get.rank_genes_groups_df(adata_oi_concat, group=group)
df_filtered = df[(df['pvals_adj'] < qvals_thres) & (df['logfoldchanges'] > logfc_thres)].copy()
df_filtered = df_filtered.sort_values('logfoldchanges', ascending=False)
df_filtered = df_filtered.rename(columns={
'names': 'gene',
'pvals': 'pval',
'pvals_adj': 'pval_adj',
'logfoldchanges': 'logfoldchange'
})[['gene', 'pval', 'pval_adj', 'logfoldchange']]
df_list[i].append(df_filtered)
print(df_filtered.shape)
if group == 'oi':
volcano_list.append(df)
adata_oi_list.append(adata_oi_concat)
(3071, 18074) (1566, 18074)
0.019687513267948882
(4637, 510)
(28, 4)
(6, 4)
(4344, 18074) (2076, 18074)
0.019917661257046415
(6420, 2156)
(81, 4)
(23, 4)
(855, 18074) (4239, 18074)
0.0201948922066904
(5094, 1024)
(81, 4)
(11, 4)

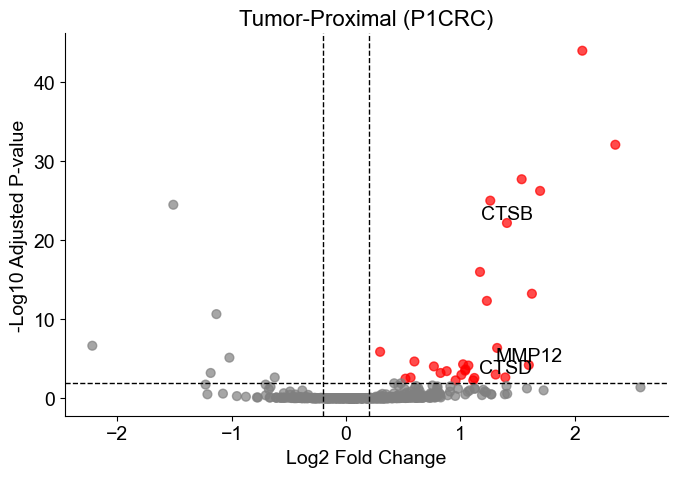

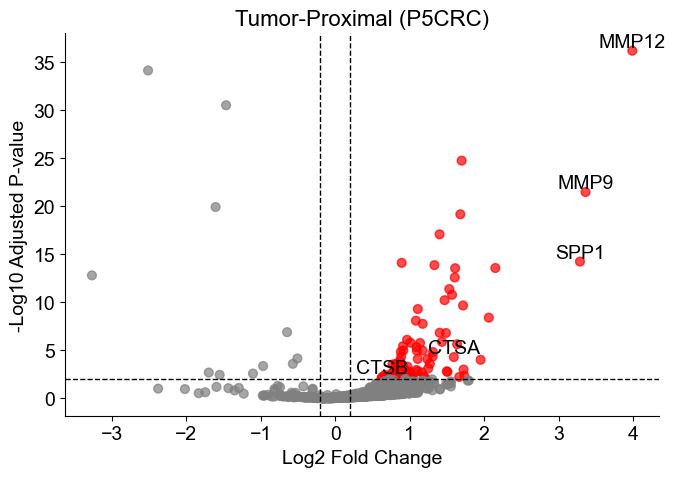

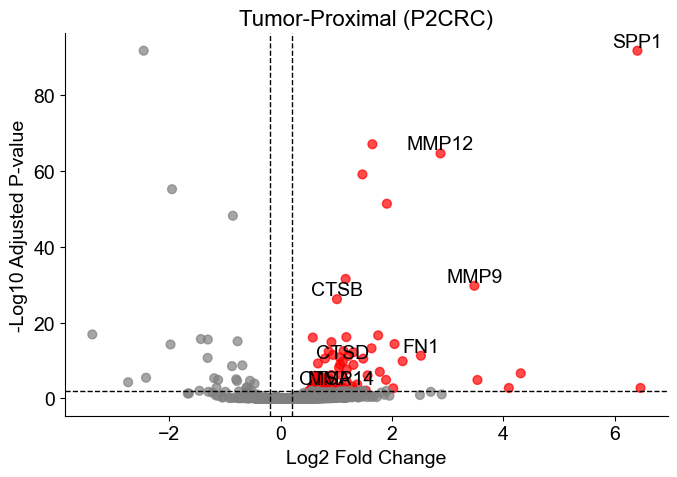

Generate volcano plots for each slice, highlighting significant genes and annotating selected markers of interest.
[9]:
gene_list = ['IL4R', 'CCL4', 'CCL13', 'CCL20', 'CCL17', 'CCL18', 'CCL22', 'CCL24',
'LYVE1', 'VEGFA', 'VEGFB', 'VEGFC', 'VEGFD', 'EGF', 'CTSA', 'CTSB',
'CTSC', 'CTSD', 'TGFB1', 'TGFB2', 'TGFB3', 'MMP14', 'MMP19', 'MMP9',
'CLEC7A', 'WNT7B', 'FASL', 'TNFSF12', 'TNFSF8', 'CD276', 'VTCN1',
'MSR1', 'FN1', 'IRF4', 'MMP12', 'SPP1']
for i in range(len(volcano_list)):
df_volcano = volcano_list[i].copy()
df_volcano['-log10(pval_adj)'] = -np.log10(df_volcano['pvals_adj'] + 1e-100)
df_volcano['significant'] = (df_volcano['pvals_adj'] < qvals_thres) & (df_volcano['logfoldchanges'] > logfc_thres)
plt.figure(figsize=(7, 5))
plt.scatter(df_volcano['logfoldchanges'], df_volcano['-log10(pval_adj)'],
c=df_volcano['significant'].map({True: 'red', False: 'gray'}),
s=40, alpha=0.7)
genes_to_annotate = df_volcano[
df_volcano['significant'] & df_volcano['names'].isin(gene_list)
]
for _, row in genes_to_annotate.iterrows():
plt.text(row['logfoldchanges'], row['-log10(pval_adj)'], row['names'],
fontsize=14, ha='center', va='bottom')
plt.axhline(-np.log10(qvals_thres), linestyle='--', color='black', lw=1)
plt.axvline(logfc_thres, linestyle='--', color='black', lw=1)
plt.axvline(-logfc_thres, linestyle='--', color='black', lw=1)
plt.xlabel('Log2 Fold Change', fontsize=14)
plt.ylabel('-Log10 Adjusted P-value', fontsize=14)
plt.title(f'Tumor-Proximal ({slice_name_list[i]})', fontsize=16)
ax = plt.gca()
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
plt.grid(False)
plt.tight_layout()
# plt.savefig(result_dir+f'volcano_{slice_name_list[i]}.pdf')
plt.show()
[ ]:
# # from 2021 cell pan tim paper
# m1_genes1 = ['IL23', 'TNF', 'CXCL9', 'CXCL10', 'CXCL11', 'CD86', 'IL1A', 'IL1B',
# 'IL6', 'CCL5', 'IRF5', 'IRF1', 'CD40', 'ID01', 'KYNU', 'CCR7']
# m2_genes1 = ['IL4R', 'CCL4', 'CCL13', 'CCL20', 'CCL17', 'CCL18', 'CCL22', 'CCL24',
# 'LYVE1', 'VEGFA', 'VEGFB', 'VEGFC', 'VEGFD', 'EGF', 'CTSA', 'CTSB',
# 'CTSC', 'CTSD', 'TGFB1', 'TGFB2', 'TGFB3', 'MMP14', 'MMP19', 'MMP9',
# 'CLEC7A', 'WNT7B', 'FASL', 'TNFSF12', 'TNFSF8', 'CD276', 'VTCN1',
# 'MSR1', 'FN1', 'IRF4']
Spatial expression of some marker genes
Load Xenium data
Normalize the Xenium data
[10]:
adata_list_Xenium = []
for slice_name in slice_name_list:
adata = ad.read_h5ad(data_dir+f'{slice_name}_Xenium.h5ad')
sc.pp.normalize_total(adata, target_sum=1e4)
sc.pp.log1p(adata)
adata_list_Xenium.append(adata)

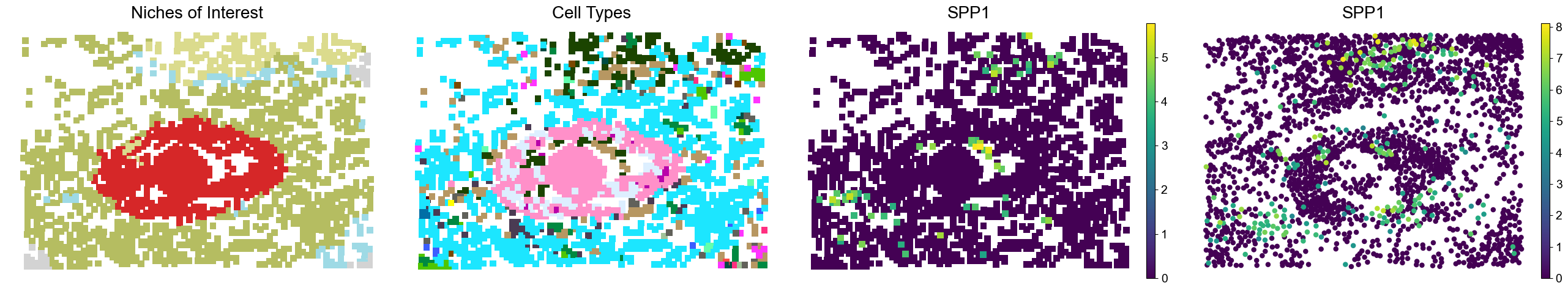

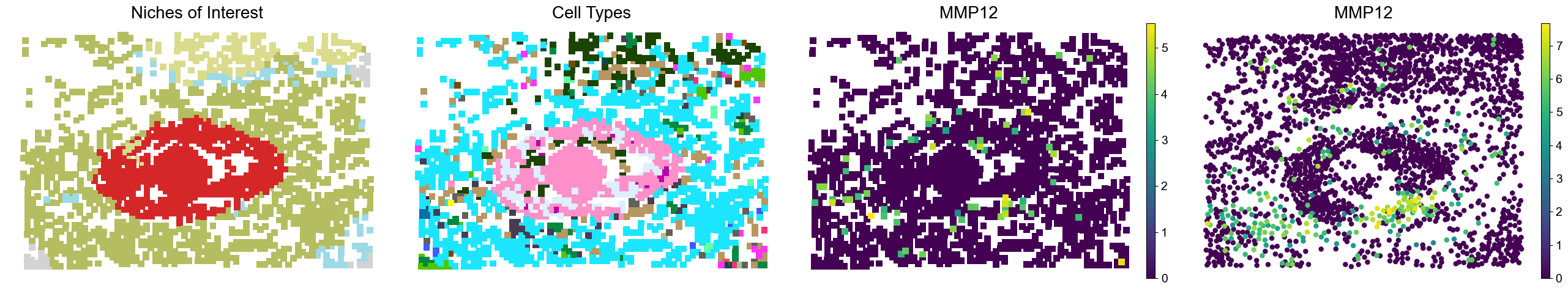

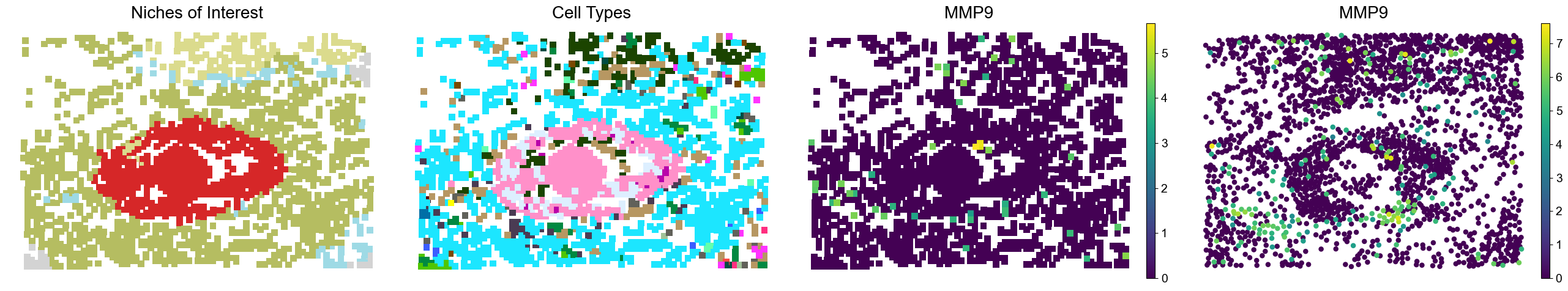

One ROI from P1CRC
The four panels show niches of interest, cell types, and marker expression in Visium HD and Xenium data.
[11]:
marker_list = ['SPP1', 'MMP9', 'MMP12']
slice_idx = 0
x_min, x_max = 122, 140
y_min, y_max = -180, -162
spatial = adata_list[slice_idx].obsm['spatial']
mask = (spatial[:, 0] >= x_min) & (spatial[:, 0] <= x_max) & (spatial[:, 1] >= y_min) & (spatial[:, 1] <= y_max)
adata = adata_list[slice_idx][mask].copy()
x_min, x_max = -3150, -2640
y_min, y_max = -1730, -1170
spatial = adata_list_Xenium[slice_idx].obsm['spatial']
mask = (spatial[:, 0] >= x_min) & (spatial[:, 0] <= x_max) & (spatial[:, 1] >= y_min) & (spatial[:, 1] <= y_max)
adatax = adata_list_Xenium[slice_idx][mask].copy()
for marker in marker_list:
fig, axes = plt.subplots(1, 4, figsize=(26, 5))
sc.pl.embedding(adata, basis='spatial', palette=niche_color_dict,
color='noi', ax=axes[0], frameon=False, marker='s', size=60, show=False, legend_loc=None)
axes[0].set_title('Niches of Interest', fontsize=20)
sc.pl.embedding(adata, basis='spatial', palette=ct_color_dict,
color='DeconvolutionLabel1', ax=axes[1], frameon=False, marker='s', size=60, show=False, legend_loc=None)
axes[1].set_title('Cell Types', fontsize=20)
sc.pl.embedding(adata, basis='spatial', palette='viridis',
color=marker, ax=axes[2], frameon=False, marker='s', size=60, show=False)
axes[2].set_title(marker, fontsize=20)
sc.pl.embedding(adatax, basis='spatial', palette='viridis',
color=marker, ax=axes[3], frameon=False, size=150, show=False)
axes[3].set_title(marker, fontsize=20)
plt.tight_layout()
plt.show()

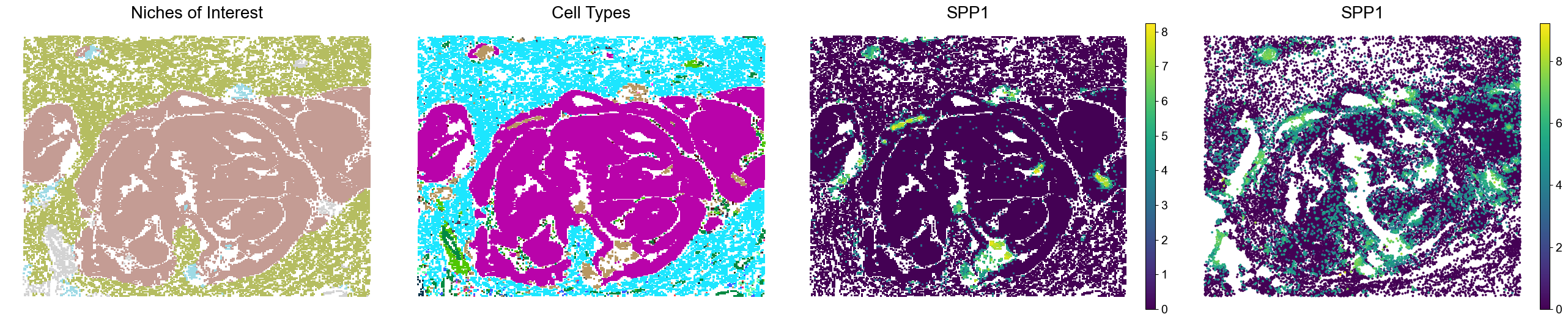

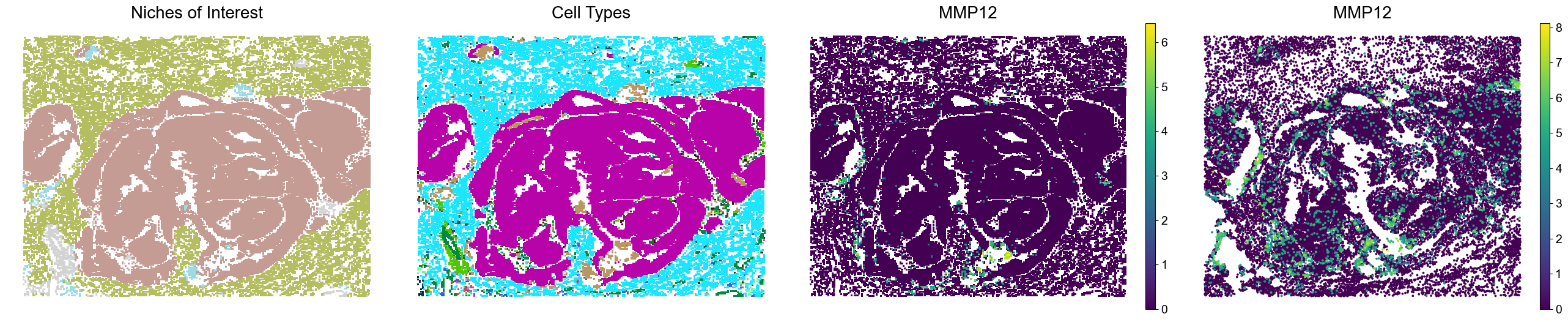

One ROI from P2CRC

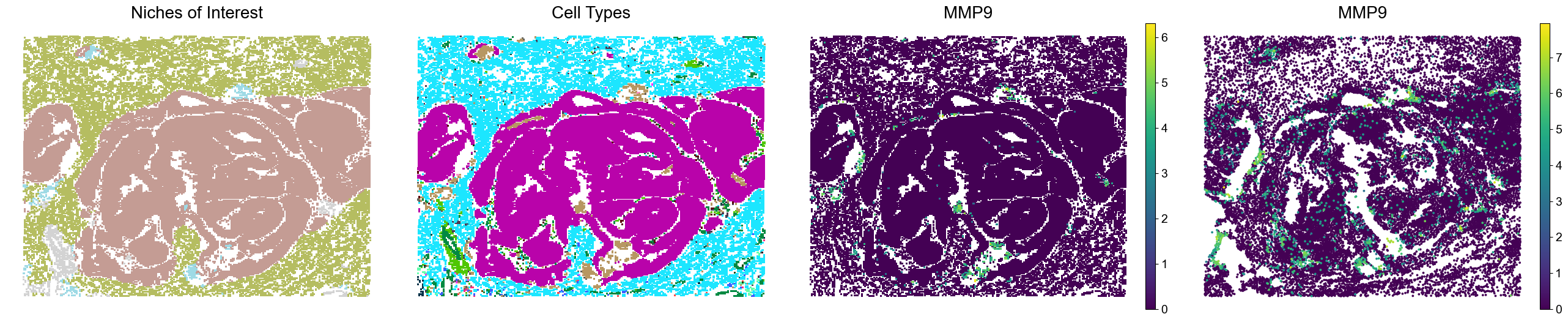

The four panels show niches of interest, cell types, and marker expression in Visium HD and Xenium data.
[12]:
marker_list = ['SPP1', 'MMP9', 'MMP12']
slice_idx = 1
x_min, x_max = 350, 400
y_min, y_max = -140, -90
spatial = adata_list[slice_idx].obsm['spatial']
mask = (spatial[:, 0] >= x_min) & (spatial[:, 0] <= x_max) & (spatial[:, 1] >= y_min) & (spatial[:, 1] <= y_max)
adata = adata_list[slice_idx][mask].copy()
x_min, x_max = -6150, -4400
y_min, y_max = -4900, -3100
spatial = adata_list_Xenium[slice_idx].obsm['spatial']
mask = (spatial[:, 0] >= x_min) & (spatial[:, 0] <= x_max) & (spatial[:, 1] >= y_min) & (spatial[:, 1] <= y_max)
adatax = adata_list_Xenium[slice_idx][mask].copy()
for marker in marker_list:
fig, axes = plt.subplots(1, 4, figsize=(26, 5.5))
sc.pl.embedding(adata, basis='spatial', palette=niche_color_dict,
color='noi', ax=axes[0], frameon=False, marker='s', size=5, show=False, legend_loc=None)
axes[0].set_title('Niches of Interest', fontsize=20)
sc.pl.embedding(adata, basis='spatial', palette=ct_color_dict,
color='DeconvolutionLabel1', ax=axes[1], frameon=False, marker='s', size=5, show=False, legend_loc=None)
axes[1].set_title('Cell Types', fontsize=20)
sc.pl.embedding(adata, basis='spatial', palette='viridis',
color=marker, ax=axes[2], frameon=False, marker='s', size=5, show=False)
axes[2].set_title(marker, fontsize=20)
sc.pl.embedding(adatax, basis='spatial', palette='viridis',
color=marker, ax=axes[3], frameon=False, size=30, show=False)
axes[3].set_title(marker, fontsize=20)
plt.tight_layout()
plt.show()

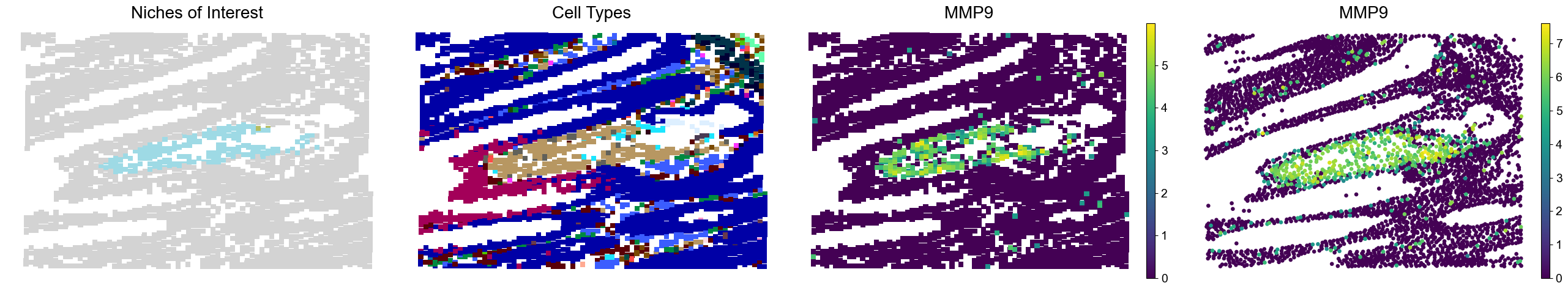

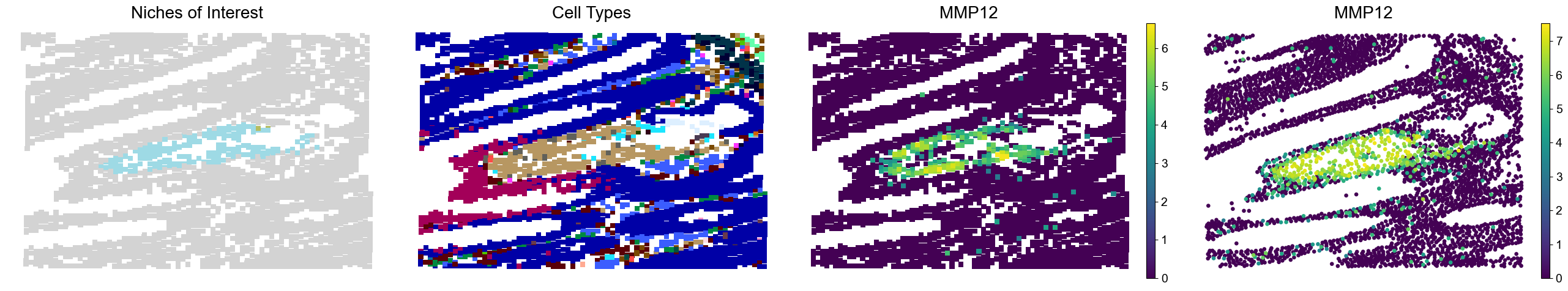

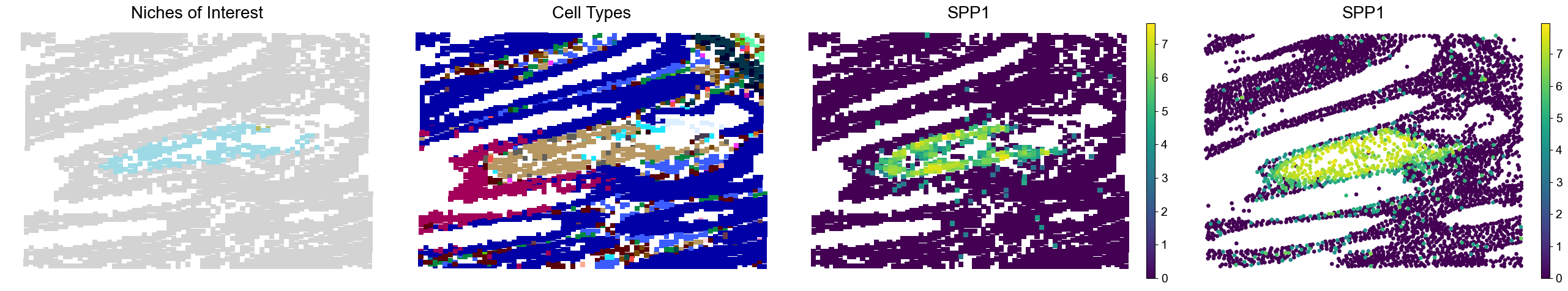

One ROI from P5CRC
The four panels show niches of interest, cell types, and marker expression in Visium HD and Xenium data.
[13]:
marker_list = ['SPP1', 'MMP9', 'MMP12']
slice_idx = 2
x_min, x_max = 453, 470
y_min, y_max = -430, -400
spatial = adata_list[slice_idx].obsm['spatial']
mask = (spatial[:, 0] >= x_min) & (spatial[:, 0] <= x_max) & (spatial[:, 1] >= y_min) & (spatial[:, 1] <= y_max)
adata = adata_list[slice_idx][mask].copy()
x_min, x_max = -3080, -2500
y_min, y_max = -3700, -2650
spatial = adata_list_Xenium[slice_idx].obsm['spatial']
mask = (spatial[:, 0] >= x_min) & (spatial[:, 0] <= x_max) & (spatial[:, 1] >= y_min) & (spatial[:, 1] <= y_max)
adatax = adata_list_Xenium[slice_idx][mask].copy()
for marker in marker_list:
fig, axes = plt.subplots(1, 4, figsize=(26, 5))
sc.pl.embedding(adata, basis='spatial', palette=niche_color_dict,
color='noi', ax=axes[0], frameon=False, marker='s', size=35, show=False, legend_loc=None)
axes[0].set_title('Niches of Interest', fontsize=20)
sc.pl.embedding(adata, basis='spatial', palette=ct_color_dict,
color='DeconvolutionLabel1', ax=axes[1], frameon=False, marker='s', size=35, show=False, legend_loc=None)
axes[1].set_title('Cell Types', fontsize=20)
sc.pl.embedding(adata, basis='spatial', palette='viridis',
color=marker, ax=axes[2], frameon=False, marker='s', size=35, show=False)
axes[2].set_title(marker, fontsize=20)
sc.pl.embedding(adatax, basis='spatial', palette='viridis',
color=marker, ax=axes[3], frameon=False, size=90, show=False)
axes[3].set_title(marker, fontsize=20)
plt.tight_layout()
plt.show()
