Downstream Analyses on STARmap V1C dataset
Need additional packages: scanpy seaborn networkx
Load the packages
[ ]:
%reload_ext autoreload
%autoreload 2
import os
import time
import scanpy as sc
import pandas as pd
import numpy as np
import anndata as ad
import seaborn as sns
import matplotlib.pyplot as plt
import matplotlib.patches as mpatches
from sklearn.metrics import adjusted_rand_score, adjusted_mutual_info_score, f1_score
from Harmonics import *
import warnings
warnings.filterwarnings("ignore")
sc.settings.verbosity = 0
sc.settings.set_figure_params(dpi=50, dpi_save=500)
from matplotlib import rcParams
rcParams["figure.dpi"] = 50
rcParams["savefig.dpi"] = 500
rcParams['pdf.fonttype'] = 42
rcParams['svg.fonttype'] = 'none'
rcParams['ps.fonttype'] = 42
# rcParams['font.family'] = 'Arial'
rcParams['savefig.transparent'] = True
[2]:
data_dir = '../../../Data/Spatial/Transcriptomics/STARmap_V1_Wang2018/'
save_dir = f'../../results/STARmap_V1_Wang2018/Harmonics/'
if not os.path.exists(save_dir):
os.makedirs(save_dir)
[3]:
import numpy as np
import pandas as pd
import networkx as nx
def match_cluster_labels(true_labels, est_labels):
true_labels_arr = np.array(list(true_labels))
est_labels_arr = np.array(list(est_labels))
org_cat = list(np.sort(list(pd.unique(true_labels))))
est_cat = list(np.sort(list(pd.unique(est_labels))))
B = nx.Graph()
B.add_nodes_from([i + 1 for i in range(len(org_cat))], bipartite=0)
B.add_nodes_from([-j - 1 for j in range(len(est_cat))], bipartite=1)
for i in range(len(org_cat)):
for j in range(len(est_cat)):
weight = np.sum((true_labels_arr == org_cat[i]) * (est_labels_arr == est_cat[j]))
B.add_edge(i + 1, -j - 1, weight=-weight)
match = nx.algorithms.bipartite.matching.minimum_weight_full_matching(B)
if len(org_cat) >= len(est_cat):
return np.array([match[-est_cat.index(c) - 1] - 1 for c in est_labels_arr])
else:
unmatched = [c for c in est_cat if not (-est_cat.index(c) - 1) in match.keys()]
l = []
for c in est_labels_arr:
if (-est_cat.index(c) - 1) in match:
l.append(match[-est_cat.index(c) - 1] - 1)
else:
l.append(len(org_cat) + unmatched.index(c))
return np.array(l)
def p2stars(p):
if p < 0.001:
return '***'
elif p < 0.01:
return '**'
elif p < 0.05:
return '*'
else:
return ''
Load the result
[4]:
adata = sc.read_h5ad(save_dir + f'Harmonics_result_0.h5ad')
adata
[4]:
AnnData object with n_obs × n_vars = 1207 × 1020
obs: 'clusterid', 'celltype', 'layer', 'slice_name', 'celltype_idx', 'n_neighbors', 'niche_label_jsd', 'niche_label_jsd_v2', 'niche_label_fmi', 'niche_label_ari', 'niche_label_nmi', 'niche_label_asw', 'niche_label_js_asw', 'niche_label_fisher', 'niche_label_chi', 'niche_label_dbi', 'niche_label_dass_min', 'niche_label_dass_mean', 'niche_label_dafisher', 'niche_label_dachi', 'niche_label_0.09', 'niche_label_0.11', 'niche_label_9', 'niche_label_8', 'niche_label_7', 'niche_label_6', 'niche_label_5', 'niche_label_4', 'niche_label_3', 'niche_label_2', 'niche_label'
uns: 'ct2idx', 'idx2ct', 'niche_cell_count', 'niche_dist', 'niche_label_summary', 'score_dict'
obsm: 'micro_dist', 'onehot', 'spatial'

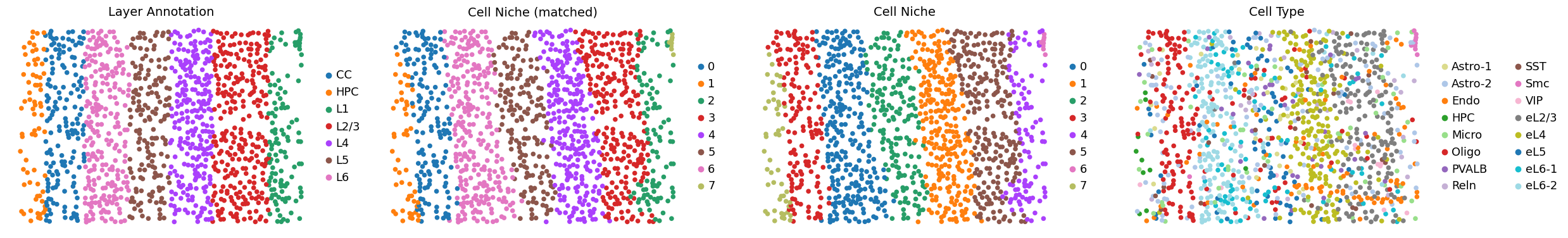

Plot the result
[5]:
layers = sorted(set(adata.obs['layer']))
layer_color_dict = {layers[k]: sns.color_palette()[k] for k in range(len(layers))}
niches = sorted(set(adata.obs['niche_label']))
niche_color_dict = {niches[k]: sns.color_palette()[k] for k in range(len(niches))}
celltypes = ['Astro-1', 'Astro-2', 'Endo', 'HPC', 'Micro', 'Oligo', 'PVALB', 'Reln',
'SST', 'Smc', 'VIP', 'eL2/3', 'eL4', 'eL5', 'eL6-1', 'eL6-2']
ct_colors = ['#dbdb8d', '#aec7e8', '#ff7f0e', '#2ca02c', '#98df8a', '#d62728', '#9467bd', '#c5b0d5',
'#8c564b', '#e377c2', '#f7b6d2', '#7f7f7f', '#bcbd22', '#1f77b4', '#17becf', '#9edae5']
ct_color_dict = {celltypes[k]: ct_colors[k] for k in range(len(celltypes))}
matched_clusters = match_cluster_labels(adata.obs['layer'], adata.obs[f'niche_label'])
matched_labels = [layers[idx] if idx < len(layers) else 'Unmatched' for idx in matched_clusters]
adata.obs[f'matched_cluster'] = [str(label) for label in matched_clusters]
adata.obs[f'matched_label'] = matched_labels
fig, axes = plt.subplots(1, 4, figsize=(25, 4))
sc.pl.embedding(adata, basis='spatial', palette=layer_color_dict, color='layer',
ax=axes[0], s=120, show=False, frameon=False, title='Layer Annotation')
sc.pl.embedding(adata, basis='spatial', palette=niche_color_dict, color='matched_cluster',
ax=axes[1], s=120, show=False, frameon=False, title='Cell Niche (matched)')
sc.pl.embedding(adata, basis='spatial', palette=niche_color_dict, color='niche_label',
ax=axes[2], s=120, show=False, frameon=False, title='Cell Niche')
sc.pl.embedding(adata, basis='spatial', palette=ct_color_dict, color='celltype',
ax=axes[3], s=120, show=False, frameon=False, title='Cell Type')
plt.tight_layout()
plt.show()
[6]:
mapping_df = pd.DataFrame({"matched_cluster": adata.obs["matched_cluster"].values, "niche_label": adata.obs["niche_label"].values})
mapping = mapping_df.groupby("matched_cluster")["niche_label"].agg(lambda x: x.mode().iloc[0]).to_dict()
mapping
[6]:
{'0': '3',
'1': '7',
'2': '4',
'3': '5',
'4': '1',
'5': '2',
'6': '0',
'7': '6'}
[7]:
perm = np.asarray([mapping[i] for i in adata.uns['niche_label_summary']], dtype=int)
niche_labels = adata.uns['niche_label_summary'].copy()
ct_labels = sorted(set(adata.obs['celltype']))
niche_dist = adata.uns['niche_dist'].toarray()[perm].copy()
cell_count_niche = adata.uns['niche_cell_count'][perm].copy()
Calculate the cell type distibution of the original reference annotation
[8]:
niche_labels_anno = sorted(set(adata.obs['layer']))
niche_dist_anno, cell_count_niche_anno = calculate_distribution(adata.obs['layer'].tolist(),
adata.obs['celltype_idx'].tolist(),
label_summary=niche_labels_anno,
n_niches=len(niche_labels_anno),
n_celltypes=len(ct_labels),
change2str=True,
sparse=False
)
Cell type composition

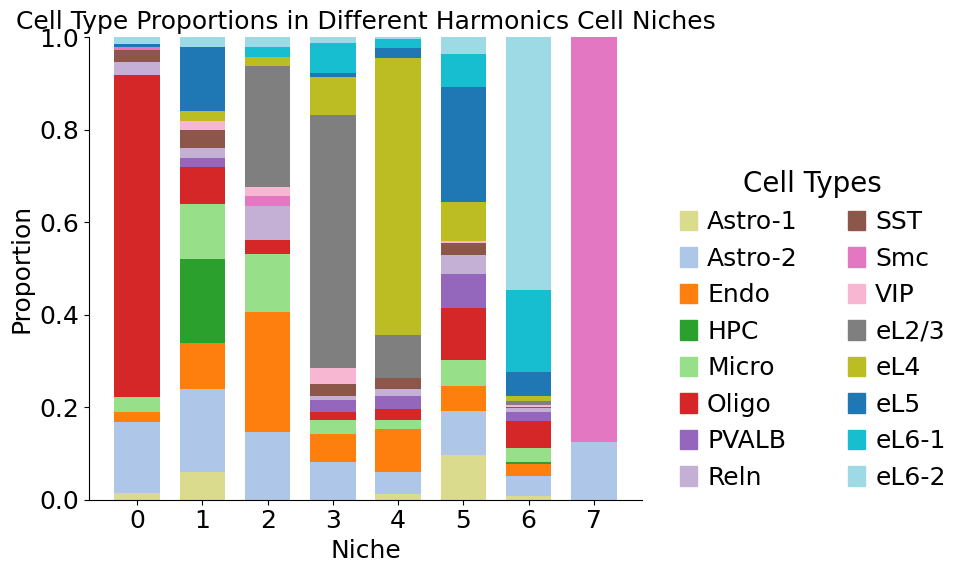

Harmonics results
[9]:
# niche_labels = adata.uns['niche_label_summary'].copy()
# ct_labels = sorted(set(adata.obs['celltype']))
# niche_dist = adata.uns['niche_dist'].toarray().copy()
# cell_count_niche = adata.uns['niche_cell_count'].copy()
fig, ax = plt.subplots(figsize=(10, 6))
bar_width = 0.7
n_niches, n_cell_types = niche_dist.shape
x = np.arange(n_niches)
for j in range(n_cell_types):
bottom = np.sum(niche_dist[:, :j], axis=1)
ax.bar(x,
niche_dist[:, j],
bottom=bottom,
width=bar_width,
color=ct_color_dict[ct_labels[j]],
label=ct_labels[j])
ax.set_ylabel('Proportion', fontsize=18)
ax.set_xlabel('Niche', fontsize=18)
ax.set_xticks(x)
ax.set_xticklabels(niche_labels, rotation=0, ha='center')
ax.tick_params(axis='x', labelsize=18)
ax.tick_params(axis='y', labelsize=18)
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
ax.grid(False)
handles = [
mpatches.Patch(color=color, label=ct)
for ct, color in zip(celltypes, ct_colors)
]
ax.legend(handles=handles, title='Cell Types', loc=(1.05, 0.0), frameon=False, handleheight=0.8,
handlelength=0.7, ncol=2, fontsize=18, title_fontsize=20)
plt.title('Cell Type Proportions in Different Harmonics Cell Niches', fontsize=18)
plt.tight_layout()
plt.show()

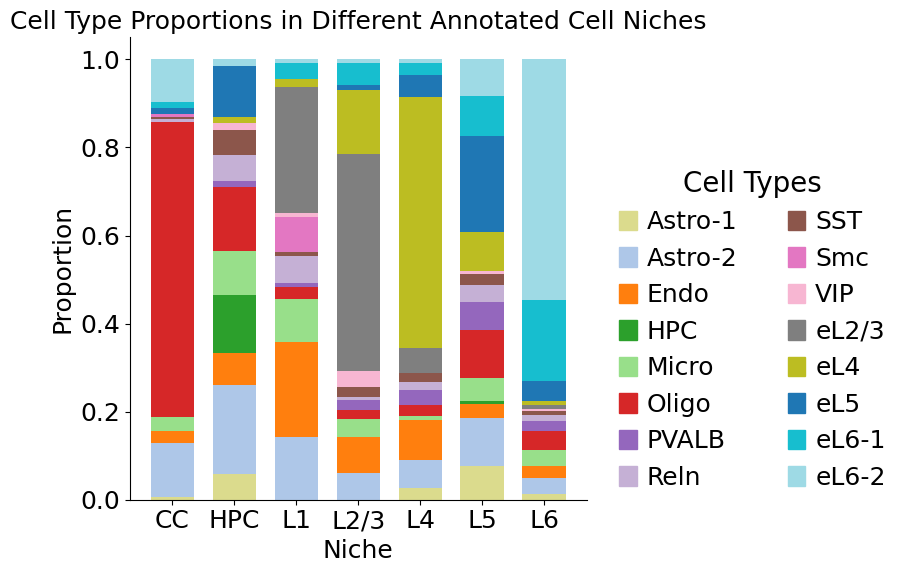

Original annotation
[10]:
fig, ax = plt.subplots(figsize=(9, 6))
bar_width = 0.7
n_niches, n_cell_types = niche_dist_anno.shape
x = np.arange(n_niches)
for j in range(n_cell_types):
bottom = np.sum(niche_dist_anno[:, :j], axis=1)
ax.bar(x,
niche_dist_anno[:, j],
bottom=bottom,
width=bar_width,
color=ct_color_dict[ct_labels[j]],
label=ct_labels[j])
ax.set_ylabel('Proportion', fontsize=18)
ax.set_xlabel('Niche', fontsize=18)
ax.set_xticks(x)
ax.set_xticklabels(niche_labels_anno, rotation=0, ha='center')
ax.tick_params(axis='x', labelsize=18)
ax.tick_params(axis='y', labelsize=18)
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
ax.grid(False)
handles = [
mpatches.Patch(color=color, label=ct)
for ct, color in zip(celltypes, ct_colors)
]
ax.legend(handles=handles, title='Cell Types', loc=(1.05, 0.0), frameon=False, handleheight=0.8,
handlelength=0.7, ncol=2, fontsize=18, title_fontsize=20)
plt.title('Cell Type Proportions in Different Annotated Cell Niches', fontsize=18)
plt.tight_layout()
plt.show()
Cell type enrichment analysis

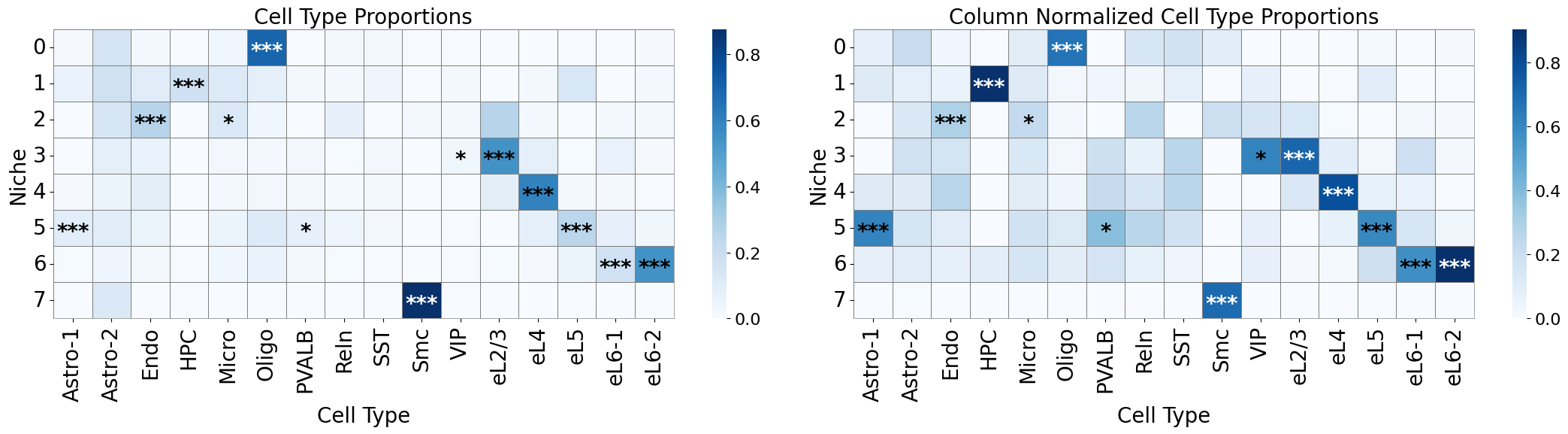

Harmonics results
[11]:
ct_df = ct_enrichment_test(niche_dist,
cell_count_niche,
adata.uns['idx2ct'],
niche_labels,
method='fisher',
alpha=0.05,
fdr_method='fdr_by',
log2fc_threshold=1,
prop_threshold=0.01,
verbose=True,
)
ct_df.head()
8 niches and 16 cell types in total.
[11]:
| niche_idx | niche | celltype_idx | celltype | oddsratio | p-value | q-value | log2fc | prop | enrichment | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 | 0 | 0 | Astro-1 | 0.590753 | 0.761000 | 1.000000 | -0.745929 | 0.013514 | False |
| 1 | 0 | 0 | 1 | Astro-2 | 2.192293 | 0.004430 | 0.077014 | 1.005043 | 0.155405 | False |
| 2 | 0 | 0 | 2 | Endo | 0.243290 | 0.006042 | 0.097714 | -1.951043 | 0.020270 | False |
| 3 | 0 | 0 | 3 | HPC | 0.000000 | 0.620961 | 1.000000 | -26.492722 | 0.000000 | False |
| 4 | 0 | 0 | 4 | Micro | 0.752864 | 0.669690 | 1.000000 | -0.393627 | 0.033784 | False |
[12]:
# niche_labels = adata.uns['niche_label_summary'].copy()
# ct_labels = sorted(adata.obs['celltype'].unique())
matrix_df = pd.DataFrame(
data=niche_dist,
index=niche_labels,
columns=ct_labels,
)
cn_dist_count = niche_dist * cell_count_niche[:, np.newaxis]
cn_dist_norm = cn_dist_count / np.sum(cn_dist_count, axis=0)
matrix_df_norm = pd.DataFrame(
data=cn_dist_norm,
index=niche_labels,
columns=ct_labels,
)
ct_df['stars'] = ct_df['q-value'].apply(p2stars)
stars_df = pd.DataFrame(
'',
index=matrix_df.index,
columns=matrix_df.columns
)
for _, row in ct_df[ct_df['enrichment']].iterrows():
niche = row['niche']
ct = row['celltype']
if (niche in stars_df.index) and (ct in stars_df.columns):
stars_df.loc[niche, ct] = row['stars']
fig, axes = plt.subplots(1, 2, figsize=(22, 6))
sns_heatmap_0 = sns.heatmap(
matrix_df,
cmap='Blues',
# cbar_kws={'label': 'Cell type proportion'},
linewidths=0.5,
linecolor='gray',
# square=True,
ax=axes[0]
)
for i, niche in enumerate(matrix_df.index):
for j, ct in enumerate(matrix_df.columns):
star = stars_df.iloc[i, j]
if star:
if matrix_df.iloc[i, j] > np.max(matrix_df.values) * 0.7:
color='white'
else:
color='black'
axes[0].text(j + 0.5, i + 0.6, star, ha='center', va='center', color=color, fontsize=20, fontweight='bold')
if matrix_df_norm.iloc[i, j] > np.max(matrix_df_norm.values) * 0.7:
color='white'
else:
color='black'
axes[1].text(j + 0.5, i + 0.6, star, ha='center', va='center', color=color, fontsize=20, fontweight='bold')
n_rows, n_cols = matrix_df.shape
axes[0].plot([0, n_cols], [n_rows, n_rows], color='gray', linewidth=0.5, clip_on=False)
axes[0].plot([n_cols, n_cols], [0, n_rows], color='gray', linewidth=0.5, clip_on=False)
axes[0].set_xticklabels(axes[0].get_xticklabels(), rotation=90, ha='center', fontsize=20)
axes[0].set_yticklabels(axes[0].get_yticklabels(), rotation=0, ha='right', fontsize=20)
axes[0].set_ylabel('Niche', fontsize=20)
axes[0].set_xlabel('Cell Type', fontsize=20)
axes[0].set_title('Cell Type Proportions', fontsize=20)
axes[0].collections[0].colorbar.ax.yaxis.label.set_size(20)
axes[0].collections[0].colorbar.ax.tick_params(labelsize=16)
axes[0].grid(False)
sns_heatmap_1 = sns.heatmap(
matrix_df_norm,
cmap='Blues',
# cbar_kws={'label': 'Cell type proportion'},
linewidths=0.5,
linecolor='gray',
# square=True,
ax=axes[1]
)
n_rows, n_cols = matrix_df.shape
axes[1].plot([0, n_cols], [n_rows, n_rows], color='gray', linewidth=0.5, clip_on=False)
axes[1].plot([n_cols, n_cols], [0, n_rows], color='gray', linewidth=0.5, clip_on=False)
axes[1].set_xticklabels(axes[1].get_xticklabels(), rotation=90, ha='center', fontsize=20)
axes[1].set_yticklabels(axes[1].get_yticklabels(), rotation=0, ha='right', fontsize=20)
axes[1].set_ylabel('Niche', fontsize=20)
axes[1].set_xlabel('Cell Type', fontsize=20)
axes[1].set_title('Column Normalized Cell Type Proportions', fontsize=20)
axes[1].collections[0].colorbar.ax.yaxis.label.set_size(20)
axes[1].collections[0].colorbar.ax.tick_params(labelsize=16)
axes[1].grid(False)
plt.tight_layout()
plt.show()

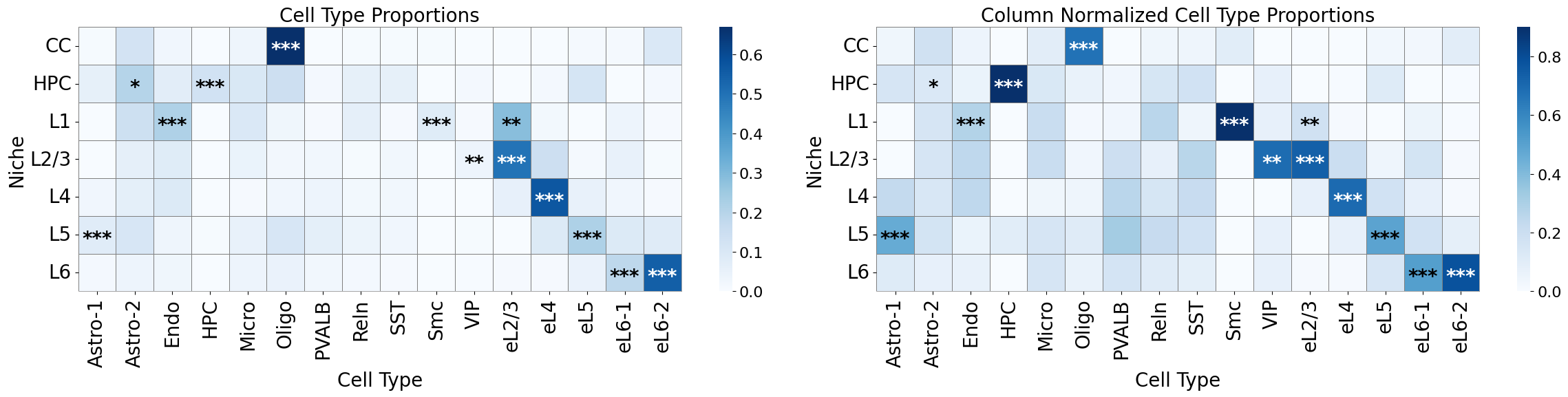

Original annotation
[13]:
ct_df = ct_enrichment_test(niche_dist_anno,
cell_count_niche_anno,
adata.uns['idx2ct'],
niche_labels_anno,
method='fisher',
alpha=0.05,
fdr_method='fdr_by',
log2fc_threshold=1,
prop_threshold=0.01,
verbose=True,
)
ct_df.head()
7 niches and 16 cell types in total.
[13]:
| niche_idx | niche | celltype_idx | celltype | oddsratio | p-value | q-value | log2fc | prop | enrichment | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 | CC | 0 | Astro-1 | 0.268758 | 0.237801 | 1.000000 | -1.870353 | 0.006494 | False |
| 1 | 0 | CC | 1 | Astro-2 | 1.582515 | 0.092399 | 0.997274 | 0.595166 | 0.123377 | False |
| 2 | 0 | CC | 2 | Endo | 0.315772 | 0.017722 | 0.233776 | -1.584049 | 0.025974 | False |
| 3 | 0 | CC | 3 | HPC | 0.000000 | 0.625329 | 1.000000 | -26.500919 | 0.000000 | False |
| 4 | 0 | CC | 4 | Micro | 0.574611 | 0.390138 | 1.000000 | -0.459158 | 0.032468 | False |
[14]:
matrix_df = pd.DataFrame(
data=niche_dist_anno,
index=niche_labels_anno,
columns=ct_labels,
)
cn_dist_count = niche_dist_anno * cell_count_niche_anno[:, np.newaxis]
cn_dist_norm = cn_dist_count / np.sum(cn_dist_count, axis=0)
matrix_df_norm = pd.DataFrame(
data=cn_dist_norm,
index=niche_labels_anno,
columns=ct_labels,
)
ct_df['stars'] = ct_df['q-value'].apply(p2stars)
stars_df = pd.DataFrame(
'',
index=matrix_df.index,
columns=matrix_df.columns
)
for _, row in ct_df[ct_df['enrichment']].iterrows():
niche = row['niche']
ct = row['celltype']
if (niche in stars_df.index) and (ct in stars_df.columns):
stars_df.loc[niche, ct] = row['stars']
fig, axes = plt.subplots(1, 2, figsize=(24, 6))
sns_heatmap_0 = sns.heatmap(
matrix_df,
cmap='Blues',
# cbar_kws={'label': 'Cell type proportion'},
linewidths=0.5,
linecolor='gray',
# square=True,
ax=axes[0]
)
for i, niche in enumerate(matrix_df.index):
for j, ct in enumerate(matrix_df.columns):
star = stars_df.iloc[i, j]
if star:
if matrix_df.iloc[i, j] > np.max(matrix_df.values) * 0.7:
color='white'
else:
color='black'
axes[0].text(j + 0.5, i + 0.6, star, ha='center', va='center', color=color, fontsize=20, fontweight='bold')
if matrix_df_norm.iloc[i, j] > np.max(matrix_df_norm.values) * 0.7:
color='white'
else:
color='black'
axes[1].text(j + 0.5, i + 0.6, star, ha='center', va='center', color=color, fontsize=20, fontweight='bold')
n_rows, n_cols = matrix_df.shape
axes[0].plot([0, n_cols], [n_rows, n_rows], color='gray', linewidth=0.5, clip_on=False)
axes[0].plot([n_cols, n_cols], [0, n_rows], color='gray', linewidth=0.5, clip_on=False)
axes[0].set_xticklabels(axes[0].get_xticklabels(), rotation=90, ha='center', fontsize=20)
axes[0].set_yticklabels(axes[0].get_yticklabels(), rotation=0, ha='right', fontsize=20)
axes[0].set_ylabel('Niche', fontsize=20)
axes[0].set_xlabel('Cell Type', fontsize=20)
axes[0].set_title('Cell Type Proportions', fontsize=20)
axes[0].collections[0].colorbar.ax.yaxis.label.set_size(20)
axes[0].collections[0].colorbar.ax.tick_params(labelsize=16)
axes[0].grid(False)
sns_heatmap_1 = sns.heatmap(
matrix_df_norm,
cmap='Blues',
# cbar_kws={'label': 'Cell type proportion'},
linewidths=0.5,
linecolor='gray',
# square=True,
ax=axes[1]
)
n_rows, n_cols = matrix_df.shape
axes[1].plot([0, n_cols], [n_rows, n_rows], color='gray', linewidth=0.5, clip_on=False)
axes[1].plot([n_cols, n_cols], [0, n_rows], color='gray', linewidth=0.5, clip_on=False)
axes[1].set_xticklabels(axes[1].get_xticklabels(), rotation=90, ha='center', fontsize=20)
axes[1].set_yticklabels(axes[1].get_yticklabels(), rotation=0, ha='right', fontsize=20)
axes[1].set_ylabel('Niche', fontsize=20)
axes[1].set_xlabel('Cell Type', fontsize=20)
axes[1].set_title('Column Normalized Cell Type Proportions', fontsize=20)
axes[1].collections[0].colorbar.ax.yaxis.label.set_size(20)
axes[1].collections[0].colorbar.ax.tick_params(labelsize=16)
axes[1].grid(False)
plt.tight_layout()
plt.show()
Cell-cell interactions enrichment analysis
Harmonics results
[15]:
cci_results = cci_enrichment_test(adata,
'matched_cluster',
'celltype',
niche_summary=niche_labels,
spatial_key='spatial',
cut_percentage=99,
method='fisher',
alpha=0.05,
fdr_method='fdr_by',
log2fc_threshold=1,
prop_threshold=0.01,
verbose=True,
)
cci_df, test_norm_list, bg_norm_list, test_edge_count_list, bg_edge_count_list = cci_results
cci_df.head()
8 niches and 16 cell types in total.
Testing niche 0...
Testing niche 1...
Testing niche 2...
Testing niche 3...
Testing niche 4...
Testing niche 5...
Testing niche 6...
Testing niche 7...
Finished!
[15]:
| niche_idx | niche | ct1_idx | ct1 | ct2_idx | ct2 | test_edge_count | bg_edge_count | test_edge_prop | bg_edge_prop | oddsratio | p-value | q-value | log2fc | enrichment | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 | 0 | 0 | Astro-1 | 0 | Astro-1 | 0.0 | 4.0 | 0.000000 | 0.001302 | 0.000000 | 1.000000 | 1.000000 | -23.633849 | False |
| 1 | 0 | 0 | 1 | Astro-2 | 0 | Astro-1 | 3.0 | 10.0 | 0.007812 | 0.003254 | 2.411811 | 0.168252 | 1.000000 | 1.263504 | False |
| 2 | 0 | 0 | 1 | Astro-2 | 1 | Astro-2 | 8.0 | 22.0 | 0.020833 | 0.007159 | 2.950677 | 0.013925 | 0.567743 | 1.541038 | False |
| 3 | 0 | 0 | 2 | Endo | 0 | Astro-1 | 0.0 | 13.0 | 0.000000 | 0.004230 | 0.000000 | 0.384023 | 1.000000 | -25.334289 | False |
| 4 | 0 | 0 | 2 | Endo | 1 | Astro-2 | 3.0 | 40.0 | 0.007812 | 0.013017 | 0.597047 | 0.622078 | 1.000000 | -0.736496 | False |
[16]:

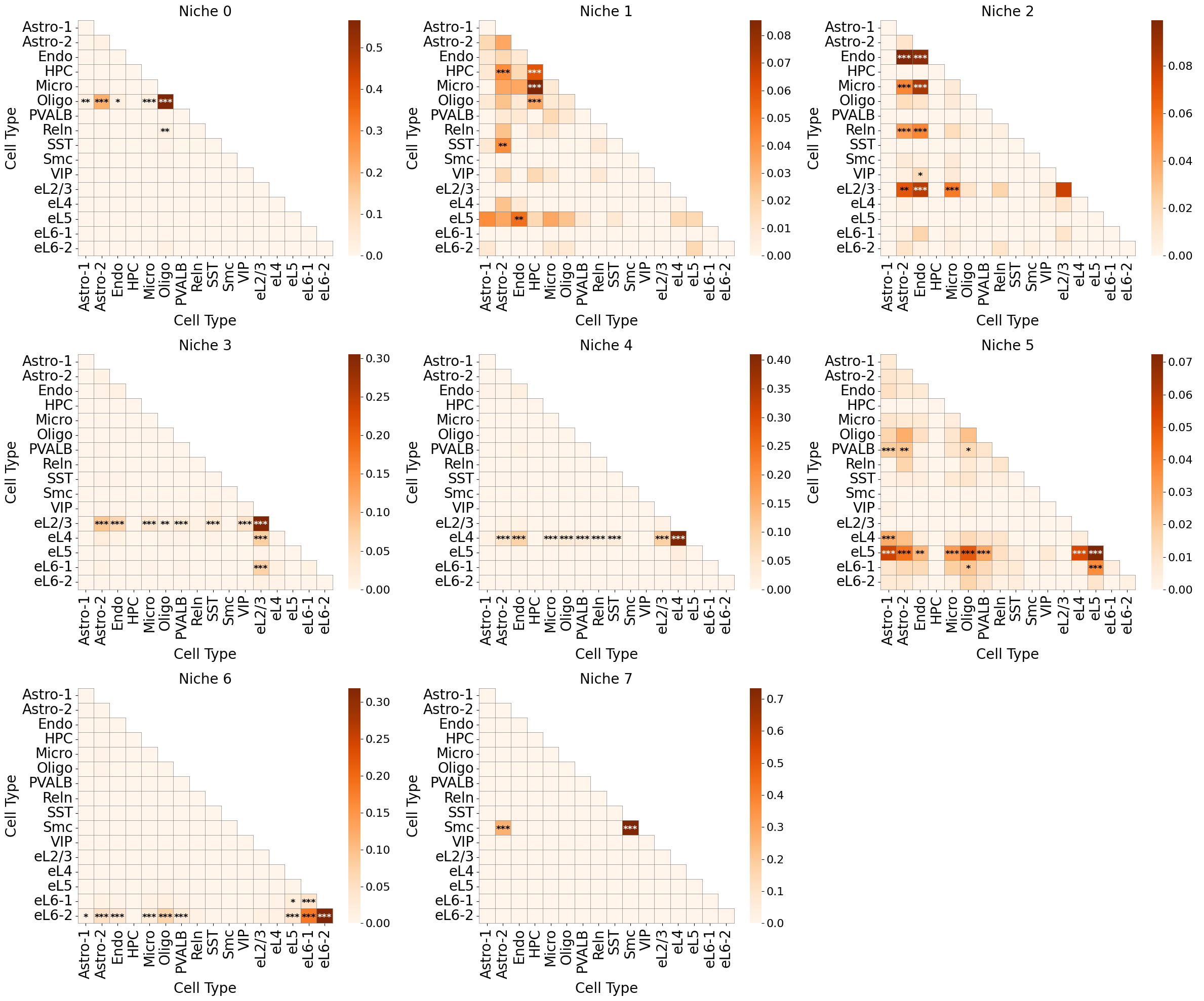

# niche_labels = adata.uns['niche_label_summary'].copy()
# ct_labels = sorted(adata.obs['celltype'].unique())
cci_df['stars'] = cci_df['q-value'].apply(p2stars)
figrows = 3
figcols = 3
fig, axes = plt.subplots(figrows, figcols, figsize=(24, 20))
for idx in range(figrows * figcols):
imgrow = idx // figcols
imgcol = idx % figcols
if idx >= len(niche_labels):
axes[imgrow, imgcol].axis('off')
continue
sub_df = cci_df[cci_df['niche_idx'] == idx]
matrix_df = pd.DataFrame(
data=test_norm_list[idx],
index=ct_labels,
columns=ct_labels,
)
for i in range(matrix_df.shape[0]):
for j in range(matrix_df.shape[1]):
if i < j:
matrix_df.iloc[i, j] = np.nan
stars_df = pd.DataFrame(
'',
index=matrix_df.index,
columns=matrix_df.columns
)
for _, row in sub_df[sub_df['enrichment']].iterrows():
ct1 = row['ct1']
ct2 = row['ct2']
if (ct1 in stars_df.index) and (ct2 in stars_df.columns):
stars_df.loc[ct1, ct2] = row['stars']
sns_heatmap = sns.heatmap(
matrix_df,
cmap='Oranges',
mask=matrix_df.isna(),
# cbar_kws={'label': 'Edge type proportion'},
# linewidths=0.5,
# linecolor='gray',
# square=True,
ax=axes[imgrow, imgcol],
)
n_rows, n_cols = matrix_df.shape
for i, ct1 in enumerate(matrix_df.index):
axes[imgrow, imgcol].plot([0, i+1], [i, i], color='gray', linewidth=0.5, clip_on=False)
axes[imgrow, imgcol].plot([i+1, i+1], [i, n_rows], color='gray', linewidth=0.5, clip_on=False)
for j, ct2 in enumerate(matrix_df.columns):
star = stars_df.iloc[i, j]
if star:
if matrix_df.iloc[i, j] > np.nanmax(matrix_df.values) * 0.7:
color='white'
else:
color='black'
axes[imgrow, imgcol].text(j + 0.5, i + 0.6, star, ha='center', va='center', color=color, fontsize=13, fontweight='bold')
axes[imgrow, imgcol].plot([0, 0], [0, n_rows], color='gray', linewidth=0.5, clip_on=False)
axes[imgrow, imgcol].plot([0, n_cols], [n_rows, n_rows], color='gray', linewidth=0.5, clip_on=False)
# axes[imgrow, imgcol].plot([0, n_cols], [n_rows, n_rows], color='gray', linewidth=0.5, clip_on=False)
# axes[imgrow, imgcol].plot([n_cols, n_cols], [0, n_rows], color='gray', linewidth=0.5, clip_on=False)
axes[imgrow, imgcol].set_xticklabels(axes[imgrow, imgcol].get_xticklabels(), rotation=90, ha='center', fontsize=20)
axes[imgrow, imgcol].set_yticklabels(axes[imgrow, imgcol].get_yticklabels(), rotation=0, ha='right', fontsize=20)
axes[imgrow, imgcol].set_ylabel('Cell Type', fontsize=20)
axes[imgrow, imgcol].set_xlabel('Cell Type', fontsize=20)
axes[imgrow, imgcol].set_title(f'Niche {niche_labels[idx]}', fontsize=20)
axes[imgrow, imgcol].collections[0].colorbar.ax.yaxis.label.set_size(20)
axes[imgrow, imgcol].collections[0].colorbar.ax.tick_params(labelsize=16)
axes[imgrow, imgcol].grid(False)
plt.tight_layout()
plt.show()

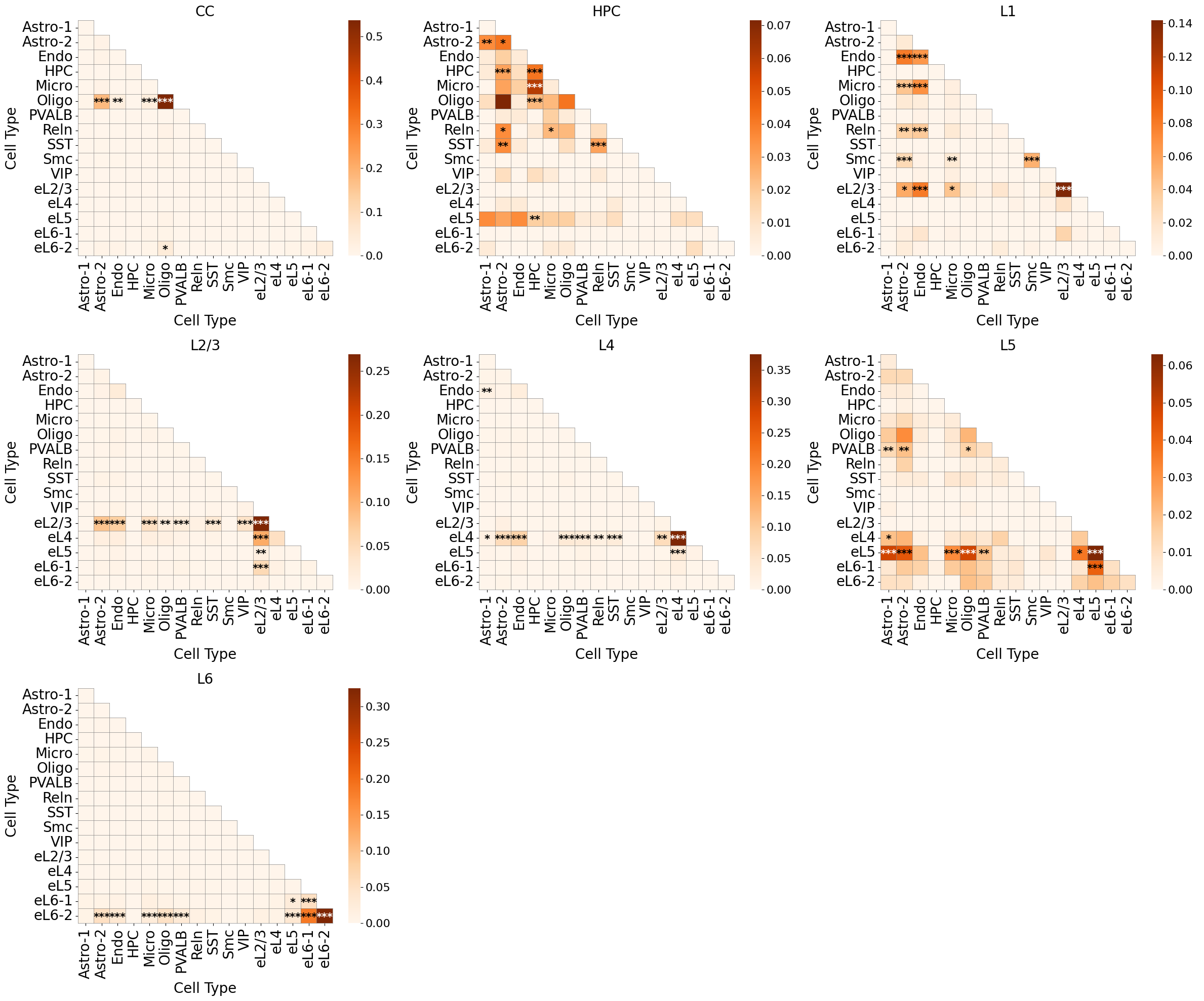

Original annotation
[17]:
cci_results = cci_enrichment_test(adata,
'layer',
'celltype',
niche_summary=niche_labels_anno,
spatial_key='spatial',
cut_percentage=99,
method='fisher',
alpha=0.05,
fdr_method='fdr_by',
log2fc_threshold=1,
prop_threshold=0.01,
verbose=True,
)
cci_df, test_norm_list, bg_norm_list, test_edge_count_list, bg_edge_count_list = cci_results
cci_df.head()
7 niches and 16 cell types in total.
Testing niche CC...
Testing niche HPC...
Testing niche L1...
Testing niche L2/3...
Testing niche L4...
Testing niche L5...
Testing niche L6...
Finished!
[17]:
| niche_idx | niche | ct1_idx | ct1 | ct2_idx | ct2 | test_edge_count | bg_edge_count | test_edge_prop | bg_edge_prop | oddsratio | p-value | q-value | log2fc | enrichment | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 | CC | 0 | Astro-1 | 0 | Astro-1 | 0.0 | 4.0 | 0.000000 | 0.001311 | 0.000000 | 1.000000 | 1.0 | -23.644688 | False |
| 1 | 0 | CC | 1 | Astro-2 | 0 | Astro-1 | 1.0 | 14.0 | 0.002519 | 0.004590 | 0.547619 | 1.000000 | 1.0 | -0.865757 | False |
| 2 | 0 | CC | 1 | Astro-2 | 1 | Astro-2 | 5.0 | 25.0 | 0.012594 | 0.008197 | 1.543367 | 0.382582 | 1.0 | 0.619670 | False |
| 3 | 0 | CC | 2 | Endo | 0 | Astro-1 | 0.0 | 13.0 | 0.000000 | 0.004262 | 0.000000 | 0.384975 | 1.0 | -25.345127 | False |
| 4 | 0 | CC | 2 | Endo | 1 | Astro-2 | 4.0 | 40.0 | 0.010076 | 0.013115 | 0.765903 | 0.812580 | 1.0 | -0.380330 | False |
[18]:
cci_df['stars'] = cci_df['q-value'].apply(p2stars)
figrows = 3
figcols = 3
fig, axes = plt.subplots(figrows, figcols, figsize=(24, 20))
for idx in range(figrows * figcols):
imgrow = idx // figcols
imgcol = idx % figcols
if idx >= len(niche_labels_anno):
axes[imgrow, imgcol].axis('off')
continue
sub_df = cci_df[cci_df['niche_idx'] == idx]
matrix_df = pd.DataFrame(
data=test_norm_list[idx],
index=ct_labels,
columns=ct_labels,
)
for i in range(matrix_df.shape[0]):
for j in range(matrix_df.shape[1]):
if i < j:
matrix_df.iloc[i, j] = np.nan
stars_df = pd.DataFrame(
'',
index=matrix_df.index,
columns=matrix_df.columns
)
for _, row in sub_df[sub_df['enrichment']].iterrows():
ct1 = row['ct1']
ct2 = row['ct2']
if (ct1 in stars_df.index) and (ct2 in stars_df.columns):
stars_df.loc[ct1, ct2] = row['stars']
sns_heatmap = sns.heatmap(
matrix_df,
cmap='Oranges',
mask=matrix_df.isna(),
# cbar_kws={'label': 'Edge type proportion'},
# linewidths=0.5,
# linecolor='gray',
# square=True,
ax=axes[imgrow, imgcol],
)
n_rows, n_cols = matrix_df.shape
for i, ct1 in enumerate(matrix_df.index):
axes[imgrow, imgcol].plot([0, i+1], [i, i], color='gray', linewidth=0.5, clip_on=False)
axes[imgrow, imgcol].plot([i+1, i+1], [i, n_rows], color='gray', linewidth=0.5, clip_on=False)
for j, ct2 in enumerate(matrix_df.columns):
star = stars_df.iloc[i, j]
if star:
if matrix_df.iloc[i, j] > np.nanmax(matrix_df.values) * 0.7:
color='white'
else:
color='black'
axes[imgrow, imgcol].text(j + 0.5, i + 0.6, star, ha='center', va='center', color=color, fontsize=15, fontweight='bold')
axes[imgrow, imgcol].plot([0, 0], [0, n_rows], color='gray', linewidth=0.5, clip_on=False)
axes[imgrow, imgcol].plot([0, n_cols], [n_rows, n_rows], color='gray', linewidth=0.5, clip_on=False)
# axes[imgrow, imgcol].plot([0, n_cols], [n_rows, n_rows], color='gray', linewidth=0.5, clip_on=False)
# axes[imgrow, imgcol].plot([n_cols, n_cols], [0, n_rows], color='gray', linewidth=0.5, clip_on=False)
axes[imgrow, imgcol].set_xticklabels(axes[imgrow, imgcol].get_xticklabels(), rotation=90, ha='center', fontsize=20)
axes[imgrow, imgcol].set_yticklabels(axes[imgrow, imgcol].get_yticklabels(), rotation=0, ha='right', fontsize=20)
axes[imgrow, imgcol].set_ylabel('Cell Type', fontsize=20)
axes[imgrow, imgcol].set_xlabel('Cell Type', fontsize=20)
axes[imgrow, imgcol].set_title(f'{niche_labels_anno[idx]}', fontsize=20)
axes[imgrow, imgcol].collections[0].colorbar.ax.yaxis.label.set_size(20)
axes[imgrow, imgcol].collections[0].colorbar.ax.tick_params(labelsize=16)
axes[imgrow, imgcol].grid(False)
plt.tight_layout()
plt.show()

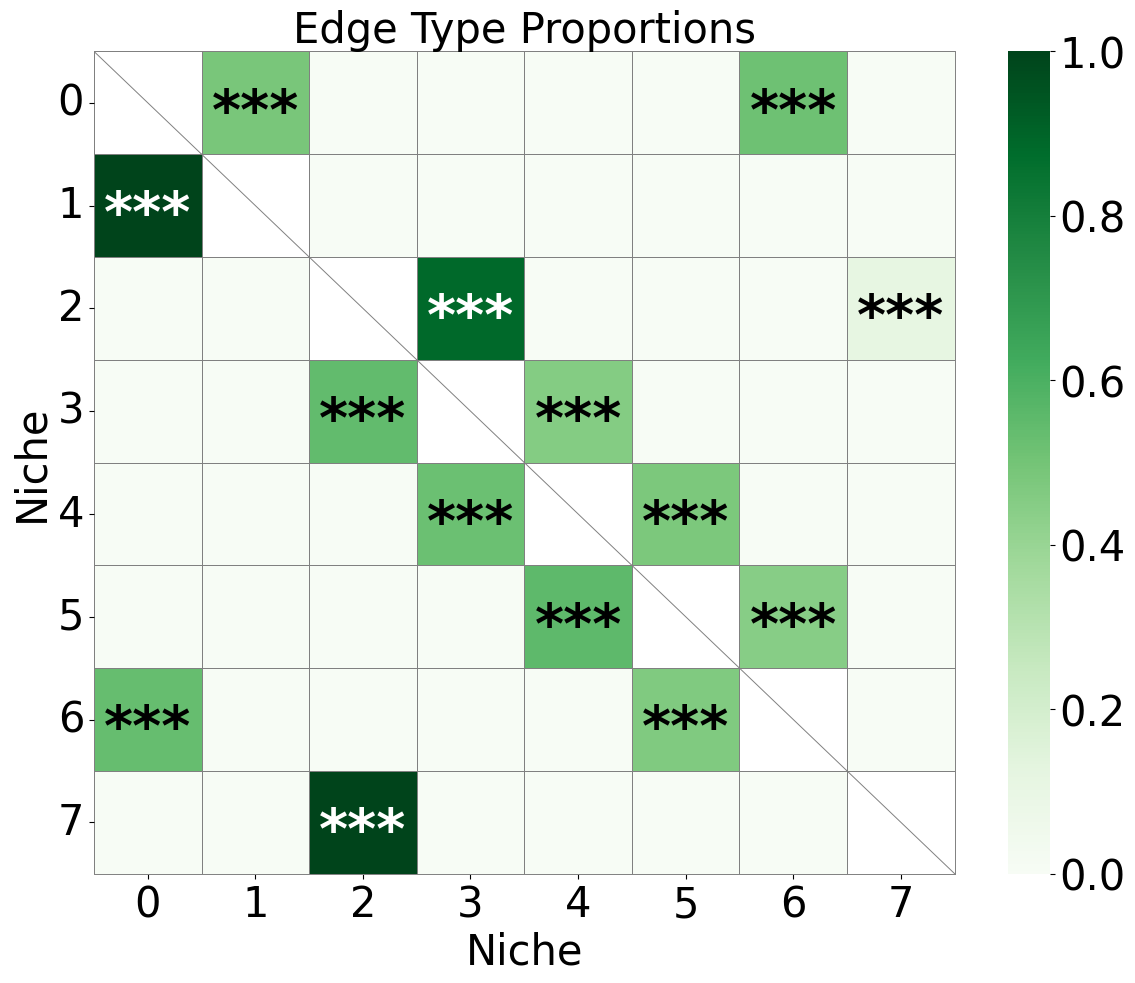

Niche-niche co-localization analysis
Harmonics results
[19]:
nnc_results = nnc_enrichment_test(adata,
'matched_cluster',
niche_summary=niche_labels,
spatial_key='spatial',
cut_percentage=99,
method='fisher',
alpha=0.05,
fdr_method='fdr_by',
log2fc_threshold=1,
prop_threshold=0.01,
verbose=True,
)
nnc_df, edge_prop_mtx, n1_count = nnc_results
nnc_df.head()
8 niches in total.
[19]:
| niche1_idx | niche1 | niche2_idx | niche2 | edge_count | edge_prop | oddsratio | p-value | q-value | log2fc | enrichment | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 | 0 | 1 | 1 | 51.0 | 0.485714 | inf | 6.284496e-49 | 4.057306e-47 | 32.177461 | True |
| 1 | 0 | 0 | 2 | 2 | 0.0 | 0.000000 | 0.0 | 8.067845e-07 | 6.510809e-06 | -30.385802 | False |
| 2 | 0 | 0 | 3 | 3 | 0.0 | 0.000000 | 0.0 | 3.235591e-11 | 5.222291e-10 | -31.078479 | False |
| 3 | 0 | 0 | 4 | 4 | 0.0 | 0.000000 | 0.0 | 1.123692e-09 | 1.319022e-08 | -30.878401 | False |
| 4 | 0 | 0 | 5 | 5 | 0.0 | 0.000000 | 0.0 | 1.937610e-08 | 1.924511e-07 | -30.673783 | False |
[20]:
# niche_labels = adata.uns['niche_label_summary'].copy()
nnc_df['stars'] = nnc_df['q-value'].apply(p2stars)
matrix_df = pd.DataFrame(
data=edge_prop_mtx,
index=niche_labels,
columns=niche_labels,
)
for i in range(matrix_df.shape[0]):
for j in range(matrix_df.shape[1]):
if i == j:
matrix_df.iloc[i, j] = np.nan
stars_df = pd.DataFrame(
'',
index=matrix_df.index,
columns=matrix_df.columns
)
for _, row in nnc_df[nnc_df['enrichment']].iterrows():
n1 = row['niche1']
n2 = row['niche2']
if (n1 in stars_df.index) and (n2 in stars_df.columns):
stars_df.loc[n1, n2] = row['stars']
plt.figure(figsize=(12, 10))
ax = sns.heatmap(
matrix_df,
cmap='Greens',
# cbar_kws={'label': 'Edge type proportion'},
linewidths=0.7,
linecolor='gray',
# square=True,
)
for i, n1 in enumerate(matrix_df.index):
for j, n2 in enumerate(matrix_df.columns):
if i == j:
ax.plot([i, i+1], [i, i+1], color='gray', linewidth=0.7)
# ax.plot([i+1, i], [i, i+1], color='gray', linewidth=0.7)
continue
star = stars_df.iloc[i, j]
if star:
if matrix_df.iloc[i, j] > np.nanmax(matrix_df.values) * 0.7:
color='white'
else:
color='black'
ax.text(j + 0.5, i + 0.6, star, ha='center', va='center', color=color, fontsize=40, fontweight='bold')
n_rows, n_cols = matrix_df.shape
ax.plot([0, n_cols], [n_rows, n_rows], color='gray', linewidth=0.7, clip_on=False)
ax.plot([n_cols, n_cols], [0, n_rows], color='gray', linewidth=0.7, clip_on=False)
ax.set_xticklabels(ax.get_xticklabels(), rotation=0, ha='center', fontsize=30)
ax.set_yticklabels(ax.get_yticklabels(), rotation=0, ha='right', fontsize=30)
ax.set_ylabel('Niche', fontsize=30)
ax.set_xlabel('Niche', fontsize=30)
ax.set_title('Edge Type Proportions', fontsize=30)
ax.collections[0].colorbar.ax.yaxis.label.set_size(30)
ax.collections[0].colorbar.ax.tick_params(labelsize=30)
ax.grid(False)
plt.tight_layout()
plt.show()
Original annotation
[21]:
nnc_results = nnc_enrichment_test(adata,
'layer',
niche_summary=niche_labels_anno,
spatial_key='spatial',
cut_percentage=99,
method='fisher',
alpha=0.05,
fdr_method='fdr_by',
log2fc_threshold=1,
prop_threshold=0.01,
verbose=True,
)
nnc_df, edge_prop_mtx, n1_count = nnc_results
nnc_df.head()
7 niches in total.
[21]:
| niche1_idx | niche1 | niche2_idx | niche2 | edge_count | edge_prop | oddsratio | p-value | q-value | log2fc | enrichment | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 | CC | 1 | HPC | 56.0 | 0.486957 | inf | 2.621345e-50 | 1.190898e-48 | 32.181146 | True |
| 1 | 0 | CC | 2 | L1 | 0.0 | 0.000000 | 0.0 | 9.655021e-06 | 5.848471e-05 | -30.056890 | False |
| 2 | 0 | CC | 3 | L2/3 | 0.0 | 0.000000 | 0.0 | 9.008227e-12 | 1.169288e-10 | -31.045574 | False |
| 3 | 0 | CC | 4 | L4 | 0.0 | 0.000000 | 0.0 | 3.146870e-10 | 2.859296e-09 | -30.851305 | False |
| 4 | 0 | CC | 5 | L5 | 0.0 | 0.000000 | 0.0 | 3.282007e-09 | 2.485070e-08 | -30.729315 | False |

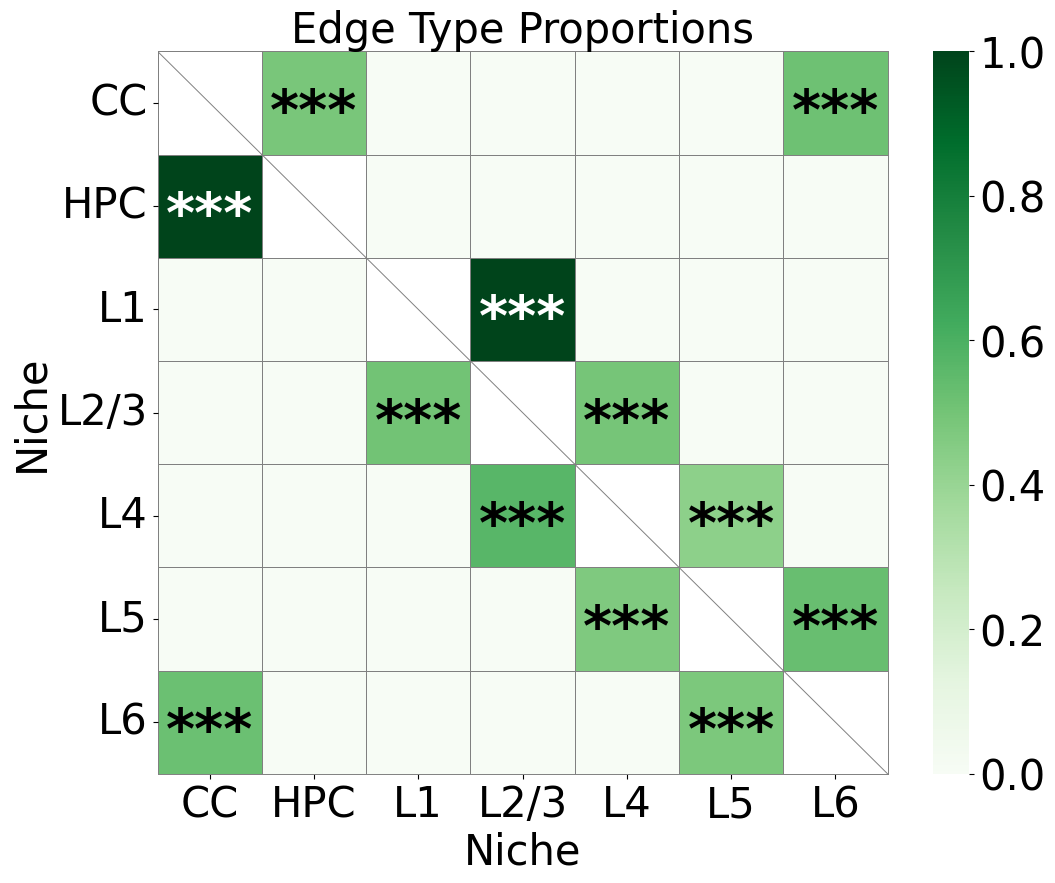

[22]:
nnc_df['stars'] = nnc_df['q-value'].apply(p2stars)
matrix_df = pd.DataFrame(
data=edge_prop_mtx,
index=niche_labels_anno,
columns=niche_labels_anno,
)
for i in range(matrix_df.shape[0]):
for j in range(matrix_df.shape[1]):
if i == j:
matrix_df.iloc[i, j] = np.nan
stars_df = pd.DataFrame(
'',
index=matrix_df.index,
columns=matrix_df.columns
)
for _, row in nnc_df[nnc_df['enrichment']].iterrows():
n1 = row['niche1']
n2 = row['niche2']
if (n1 in stars_df.index) and (n2 in stars_df.columns):
stars_df.loc[n1, n2] = row['stars']
plt.figure(figsize=(11, 9))
ax = sns.heatmap(
matrix_df,
cmap='Greens',
# cbar_kws={'label': 'Edge type proportion'},
linewidths=0.7,
linecolor='gray',
# square=True,
)
for i, n1 in enumerate(matrix_df.index):
for j, n2 in enumerate(matrix_df.columns):
if i == j:
ax.plot([i, i+1], [i, i+1], color='gray', linewidth=0.7)
# ax.plot([i+1, i], [i, i+1], color='gray', linewidth=0.7)
continue
star = stars_df.iloc[i, j]
if star:
if matrix_df.iloc[i, j] > np.nanmax(matrix_df.values) * 0.7:
color='white'
else:
color='black'
ax.text(j + 0.5, i + 0.6, star, ha='center', va='center', color=color, fontsize=40, fontweight='bold')
n_rows, n_cols = matrix_df.shape
ax.plot([0, n_cols], [n_rows, n_rows], color='gray', linewidth=0.7, clip_on=False)
ax.plot([n_cols, n_cols], [0, n_rows], color='gray', linewidth=0.7, clip_on=False)
ax.set_xticklabels(ax.get_xticklabels(), rotation=0, ha='center', fontsize=30)
ax.set_yticklabels(ax.get_yticklabels(), rotation=0, ha='right', fontsize=30)
ax.set_ylabel('Niche', fontsize=30)
ax.set_xlabel('Niche', fontsize=30)
ax.set_title('Edge Type Proportions', fontsize=30)
ax.collections[0].colorbar.ax.yaxis.label.set_size(30)
ax.collections[0].colorbar.ax.tick_params(labelsize=30)
ax.grid(False)
plt.tight_layout()
plt.show()
Comparison of Harmonics results with original annotation
Cell type purity / recall / F1 score
[23]:
def purity_recall_f1_scores(adata, celltype_key, niche_key, ct, niche):
ct_mask = adata.obs[celltype_key] == ct
niche_mask = adata.obs[niche_key] == niche
TP = (ct_mask & niche_mask).sum()
niche_size = niche_mask.sum()
ct_size = ct_mask.sum()
# precision / purity
purity = TP / niche_size if niche_size > 0 else 0.0
# recall
recall = TP / ct_size if ct_size > 0 else 0.0
# F1 score
if purity + recall > 0:
f1 = 2 * purity * recall / (purity + recall)
else:
f1 = 0.0
return purity, recall, f1
excitatory_cts = ['HPC', 'eL2/3', 'eL4', 'eL5', 'eL6-1', 'eL6-2']
inhibitory_cts = ['PVALB', 'Reln', 'SST', 'VIP']
nn_cts = ['Astro-1', 'Astro-2', 'Endo', 'Micro', 'Oligo', 'Smc']
layers_anno = ['HPC', 'L2/3', 'L4', 'L5', 'L6']
niches_Harmonics = ['1', '3', '4', '5', '6']
ct_to_layer = {
'HPC': 'HPC',
'eL2/3': 'L2/3',
'eL4': 'L4',
'eL5': 'L5',
'eL6-1': 'L6',
'eL6-2': 'L6',
}
ct_to_niche = {
'HPC': '1',
'eL2/3': '3',
'eL4': '4',
'eL5': '5',
'eL6-1': '6',
'eL6-2': '6',
}
records = []
for ct in excitatory_cts:
layer = ct_to_layer[ct]
p_anno, r_anno, f1_anno = purity_recall_f1_scores(adata, celltype_key='celltype', niche_key='layer', ct=ct, niche=layer)
niche = ct_to_niche[ct]
p_Harmonics, r_Harmonics, f1_Harmonics = purity_recall_f1_scores(adata, celltype_key='celltype', niche_key='matched_cluster', ct=ct, niche=niche)
records.append({'celltype': ct, 'Method': 'Annotation', 'Purity': p_anno, 'Recall': r_anno, 'F1-score': f1_anno})
records.append({'celltype': ct, 'Method': 'Harmonics', 'Purity': p_Harmonics, 'Recall': r_Harmonics, 'F1-score': f1_Harmonics})
df = pd.DataFrame(records)
df
[23]:
| celltype | Method | Purity | Recall | F1-score | |
|---|---|---|---|---|---|
| 0 | HPC | Annotation | 0.130435 | 0.900000 | 0.227848 |
| 1 | HPC | Harmonics | 0.180000 | 0.900000 | 0.300000 |
| 2 | eL2/3 | Annotation | 0.494253 | 0.732955 | 0.590389 |
| 3 | eL2/3 | Harmonics | 0.545455 | 0.715909 | 0.619165 |
| 4 | eL4 | Annotation | 0.568966 | 0.698413 | 0.627078 |
| 5 | eL4 | Harmonics | 0.600000 | 0.793651 | 0.683371 |
| 6 | eL5 | Annotation | 0.217949 | 0.492754 | 0.302222 |
| 7 | eL5 | Harmonics | 0.246988 | 0.594203 | 0.348936 |
| 8 | eL6-1 | Annotation | 0.183857 | 0.512500 | 0.270627 |
| 9 | eL6-1 | Harmonics | 0.178295 | 0.575000 | 0.272189 |
| 10 | eL6-2 | Annotation | 0.547085 | 0.782051 | 0.643799 |
| 11 | eL6-2 | Harmonics | 0.546512 | 0.903846 | 0.681159 |

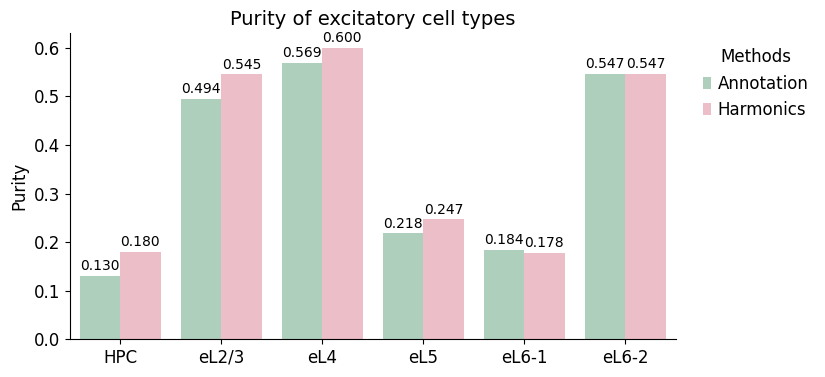

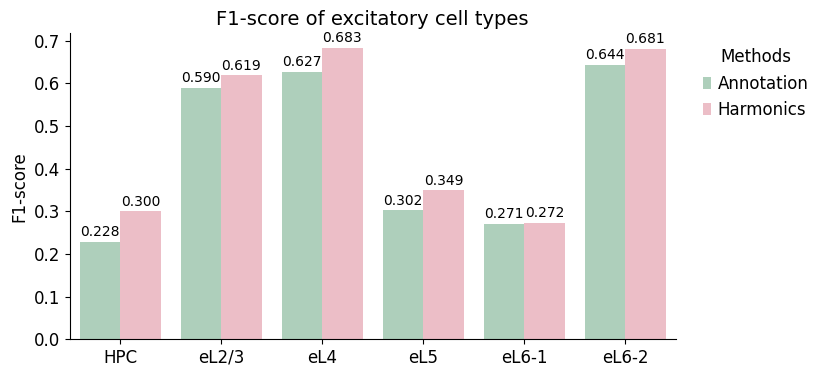

[24]:

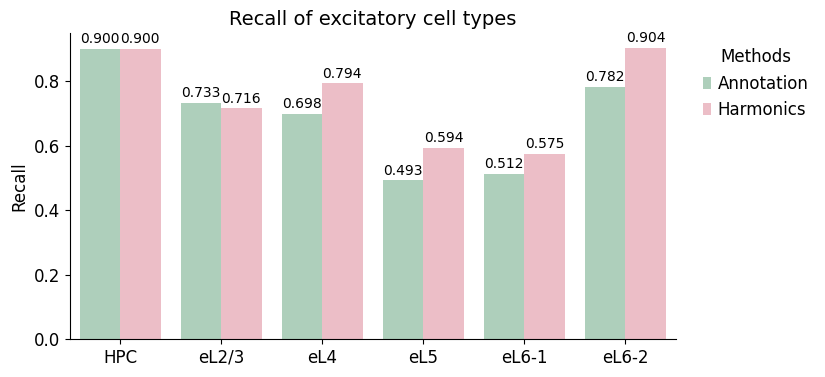

palette = {
"Annotation": "#A8D5BA",
"Harmonics": "#F4B6C2",
}
score_names = ['F1-score', 'Purity', 'Recall']
for s_name in score_names:
fig, ax = plt.subplots(figsize=(8.5, 4))
sns.barplot(data=df, x='celltype', y=s_name, hue='Method', palette=palette, width=0.8, ax=ax)
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
ax.set_title(f'{s_name} of excitatory cell types', fontsize=14)
ax.set_xlabel('', fontsize=12)
ax.set_ylabel(s_name, fontsize=12)
ax.tick_params(axis='x', labelsize=12)
ax.tick_params(axis='y', labelsize=12)
ax.grid(False)
leg = ax.legend(title='Methods', fontsize=12, title_fontsize=12, frameon=False, loc='upper left', bbox_to_anchor=(1.02, 1.0))
for container in ax.containers:
for bar in container:
height = bar.get_height()
if np.isnan(height):
continue
ax.annotate(f'{height:.3f}', xy=(bar.get_x() + bar.get_width()/2, height), xytext=(0, 2), textcoords='offset points',
ha='center', va='bottom', fontsize=10, color='black')
plt.tight_layout()
plt.show()
Laminar depth axis
[25]:
from sklearn.discriminant_analysis import LinearDiscriminantAnalysis
from matplotlib.patches import FancyArrowPatch
def lda_direction_from_cells(adata, label_key, basis="spatial", solver="svd", shrinkage=None):
X = np.asarray(adata.obsm[basis], dtype=float)
y = adata.obs[label_key].astype(str).values
lda = LinearDiscriminantAnalysis(solver=solver, shrinkage=shrinkage)
Z = lda.fit_transform(X, y)
z1 = Z[:, 0]
Xc = X - X.mean(axis=0)
z1c = z1 - z1.mean()
w = np.linalg.pinv(Xc) @ z1c
w = w / np.linalg.norm(w)
if np.corrcoef(Xc @ w, z1c)[0, 1] < 0:
w = -w
return Z, w
def add_direction_arrow(ax, origin, direction, auto=False, coords=None, frac=None, length=1., arrowstyle='-|>', lw=3.0,
color="black", alpha=0.9, mutation_scale=20, eps=1e-10, zorder=10,
label=None, offset=(0., 0.), fontsize=12, ha='center', va='center'):
if auto:
coords = np.asarray(coords)
span = max(np.ptp(coords, axis=0))
L = frac * span
else:
L = length
direction = np.asarray(direction, float)
direction = direction / (np.linalg.norm(direction) + eps)
start = origin
end = origin + L * direction
arrow = FancyArrowPatch(
posA=start,
posB=end,
arrowstyle=arrowstyle,
linewidth=lw,
color=color,
alpha=alpha,
mutation_scale=mutation_scale,
zorder=zorder,
)
ax.add_patch(arrow)
if label is not None:
ax.text(
end[0]+offset[0],
end[1]+offset[1],
label,
fontsize=fontsize,
ha=ha,
va=va,
color=color,
zorder=zorder,
)
adata_excitatory = adata[adata.obs['celltype'].isin(excitatory_cts)].copy()
adata_excitatory.obs['ct_form_different_layer']= ['eL6' if ct in ['eL6-1', 'eL6-2'] else ct for ct in adata_excitatory.obs['celltype']]
coords = adata.obsm['spatial'].copy()
origin = coords.mean(axis=0)
Z_anno, w_anno = lda_direction_from_cells(adata, 'layer', basis='spatial')
Z_Harminics, w_Harminics = lda_direction_from_cells(adata, 'matched_cluster', basis='spatial')
Z_ect, w_ect = lda_direction_from_cells(adata_excitatory, 'ct_form_different_layer', basis='spatial')
adata.obs["ld1_anno"] = Z_anno[:, 0]
adata.obs["ld1_Harmonics"] = Z_Harminics[:, 0]
adata.obs['ld1_ect'] = np.nan
adata.obs.loc[adata_excitatory.obs_names, 'ld1_ect'] = Z_ect[:, 0]
ect_color_dict = {ct: (ct_color_dict[ct] if ct in excitatory_cts else "#E0E0E0") for ct in celltypes}

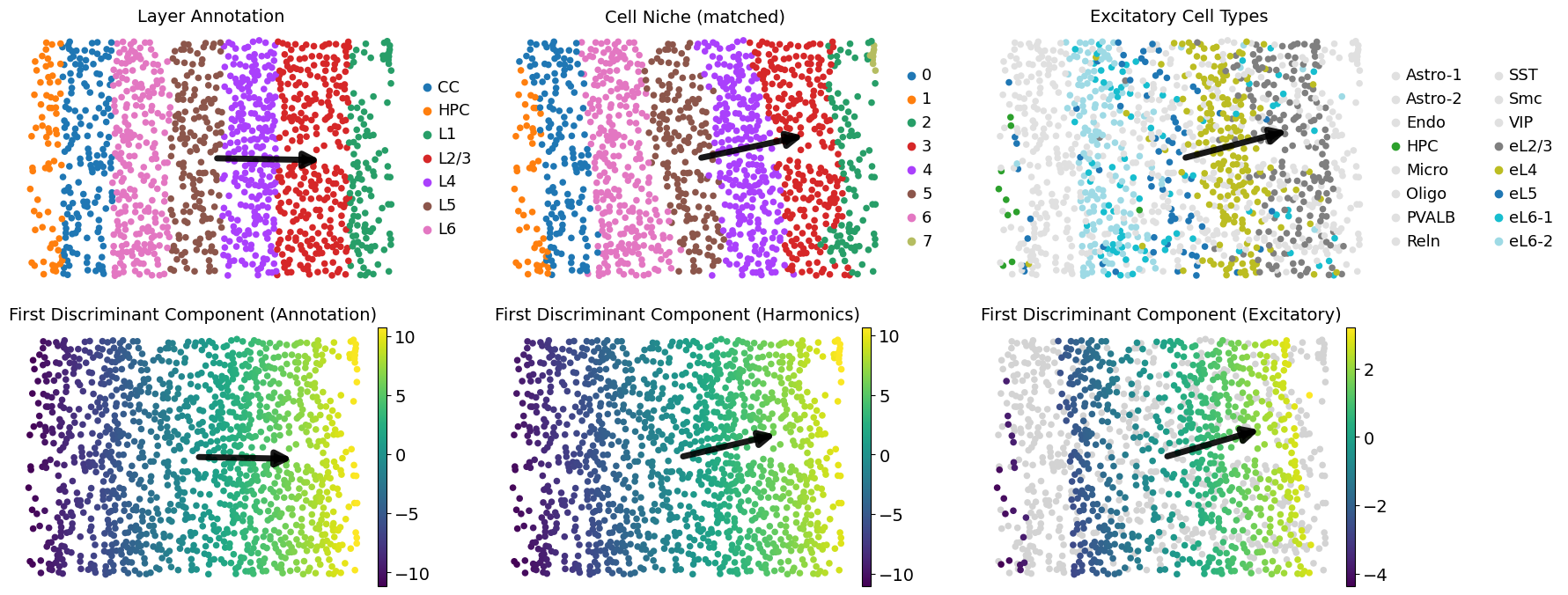

fig, axes = plt.subplots(2, 3, figsize=(18, 7))
sc.pl.embedding(adata, basis='spatial', palette=layer_color_dict, color='layer',
ax=axes[0, 0], s=120, show=False, frameon=False, title="Layer Annotation")
add_direction_arrow(axes[0, 0], origin, w_anno, auto=True, coords=coords, frac=0.3, lw=5, mutation_scale=25)
sc.pl.embedding(adata, basis='spatial', palette=niche_color_dict, color='matched_cluster',
ax=axes[0, 1], s=120, show=False, frameon=False, title="Cell Niche (matched)")
add_direction_arrow(axes[0, 1], origin, w_Harminics, auto=True, coords=coords, frac=0.3, lw=5, mutation_scale=25)
sc.pl.embedding(adata, basis='spatial', palette=ect_color_dict, color='celltype',
ax=axes[0, 2], s=120, show=False, frameon=False, title="Excitatory Cell Types")
add_direction_arrow(axes[0, 2], origin, w_ect, auto=True, coords=coords, frac=0.3, lw=5, mutation_scale=25)
sc.pl.embedding(adata, basis='spatial', color="ld1_anno", palette="viridis",
ax=axes[1, 0], s=120, show=False, frameon=False, title="First Discriminant Component (Annotation)")
add_direction_arrow(axes[1, 0], origin, w_anno, auto=True, coords=coords, frac=0.3, lw=5, mutation_scale=25)
sc.pl.embedding(adata, basis='spatial', color="ld1_Harmonics", palette="viridis",
ax=axes[1, 1], s=120, show=False, frameon=False, title="First Discriminant Component (Harmonics)")
add_direction_arrow(axes[1, 1], origin, w_Harminics, auto=True, coords=coords, frac=0.3, lw=5, mutation_scale=25)
sc.pl.embedding(adata, basis='spatial', color="ld1_ect", palette="viridis",
ax=axes[1, 2], s=120, show=False, frameon=False, title="First Discriminant Component (Excitatory)")
add_direction_arrow(axes[1, 2], origin, w_ect, auto=True, coords=coords, frac=0.3, lw=5, mutation_scale=25)
# for ax in axes.flatten():
# ax.set_aspect("equal", adjustable="box")
plt.tight_layout()
plt.show()

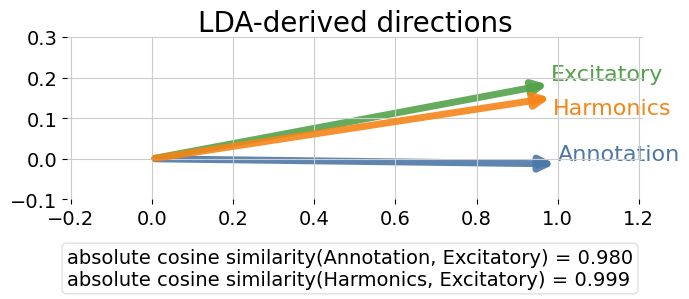

[26]:
def unit(v):
v = np.asarray(v, float).ravel()
return v / np.linalg.norm(v)
def cosine_abs(a, b):
a = unit(a)
b = unit(b)
return float(abs(a @ b))
arrow_colors = {
"Excitatory": "#54A24B",
"Annotation": "#4C78A8",
"Harmonics": "#F58518",
}
fig, ax = plt.subplots(figsize=(7, 6))
origin = np.array([0., 0.])
L = 1.
cos_anno = cosine_abs(w_anno, w_ect)
cos_Harmonics = cosine_abs(w_Harminics, w_ect)
add_direction_arrow(ax, origin, w_ect, length=L, lw=5.0, mutation_scale=20, color=arrow_colors['Excitatory'], zorder=0,
label='Excitatory', offset=(0., 0.), fontsize=16, ha='left', va='bottom')
add_direction_arrow(ax, origin, w_anno, length=L, lw=5.0, mutation_scale=20, color=arrow_colors['Annotation'], zorder=1,
label='Annotation', offset=(0., 0.), fontsize=16, ha='left', va='bottom')
add_direction_arrow(ax, origin, w_Harminics, length=L, lw=5.0, mutation_scale=20, color=arrow_colors['Harmonics'], zorder=2,
label='Harmonics', offset=(0., -0.05), fontsize=16, ha='left', va='bottom')
ax.text(
0, -0.3,
f"absolute cosine similarity(Annotation, Excitatory) = {cos_anno:.3f}\n"
f"absolute cosine similarity(Harmonics, Excitatory) = {cos_Harmonics:.3f}",
transform=ax.transAxes,
ha="left", va="top",
fontsize=14,
color="black",
bbox=dict(
facecolor="white",
edgecolor="#DDDDDD",
alpha=0.9,
boxstyle="round,pad=0.25"
)
)
ax.set_xlim(origin[0] - 0.21 * L, origin[0] + 1.21 * L)
ax.set_ylim(origin[1] - 0.1 * L, origin[1] + 0.3 * L)
ax.set_aspect("equal", adjustable="box")
# ax.set_xticks([])
# ax.set_yticks([])
for s in ["top", "right", "left", "bottom"]:
ax.spines[s].set_visible(False)
ax.set_title("LDA-derived directions", fontsize=20, pad=0)
plt.tight_layout()
plt.show()
[27]:
def fisher_ratio_multiclass(z, y, classes=None, eps=1e-10):
z = np.asarray(z, float).ravel()
y = np.asarray(y)
if classes is None:
classes = np.unique(y)
mask = np.isin(y, classes)
z = z[mask]
y = y[mask]
mu = z.mean()
SB = 0.0
SW = 0.0
for c in classes:
zc = z[y == c]
if zc.size == 0:
continue
muk = zc.mean()
SB += zc.size * (muk - mu) ** 2
SW += np.sum((zc - muk) ** 2)
return SB / (SW + eps)
niche_related_cts = ['eL6' if ct in ['eL6-1', 'eL6-2'] else ct for ct in adata.obs['celltype']]
fisher_anno = fisher_ratio_multiclass(adata.obs['ld1_anno'], niche_related_cts, classes=['HPC', 'eL2/3', 'eL4', 'eL5', 'eL6'])
fisher_Harmonics = fisher_ratio_multiclass(adata.obs['ld1_Harmonics'], niche_related_cts, classes=excitatory_cts)
fisher_anno, fisher_Harmonics
[27]:
(np.float64(2.0140179901864137), np.float64(2.259881480507602))
[28]:

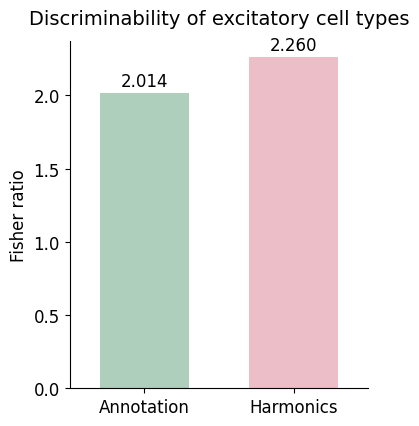

df_fisher = pd.DataFrame({
'Method': ['Annotation', 'Harmonics'],
'Fisher ratio': [fisher_anno, fisher_Harmonics]
})
fig, ax = plt.subplots(figsize=(4, 4.5))
sns.barplot(data=df_fisher, x='Method', y='Fisher ratio', palette=palette, width=0.6, ax=ax)
ax.set_title('Discriminability of excitatory cell types', fontsize=14, pad=12)
ax.set_xlabel('', fontsize=12)
ax.set_ylabel('Fisher ratio', fontsize=12)
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
ax.tick_params(axis='x', labelsize=12)
ax.tick_params(axis='y', labelsize=12)
ax.grid(False)
# ymax = df_fisher['Fisher ratio'].max()
# ax.set_ylim(0, ymax * 1.1)
for container in ax.containers:
for bar in container:
height = bar.get_height()
if np.isnan(height):
continue
ax.annotate(f'{height:.3f}', xy=(bar.get_x() + bar.get_width()/2, height), xytext=(0, 2), textcoords='offset points',
ha='center', va='bottom', fontsize=12, color='black')
plt.tight_layout()
plt.show()
Differential expression analysis and marker concentration
[29]:
adata_copy = adata.copy()
sc.pp.normalize_total(adata_copy, target_sum=1e4)
sc.pp.log1p(adata_copy)
sc.tl.pca(adata_copy, n_comps=10, random_state=1234)
sc.pp.neighbors(adata_copy, n_neighbors=15, n_pcs=10, random_state=1234)
sc.tl.umap(adata_copy, random_state=1234, min_dist=0.1)
[30]:

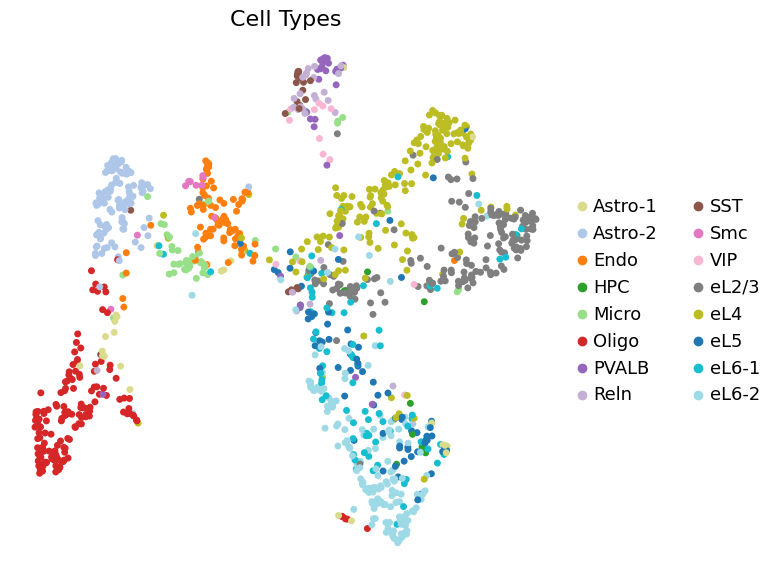

fig, ax = plt.subplots(figsize=(8,6))
sc.pl.umap(adata_copy, color='celltype', palette=ct_color_dict, s=100, frameon=False,
title='Cell Types', ax=ax, show=False)
plt.title('Cell Types', fontsize=16)
plt.tight_layout()
plt.show()
[31]:
major_categories_dict = {
'Excitatory': excitatory_cts,
'Inhibitory': inhibitory_cts,
'Non-neuronal': nn_cts,
}

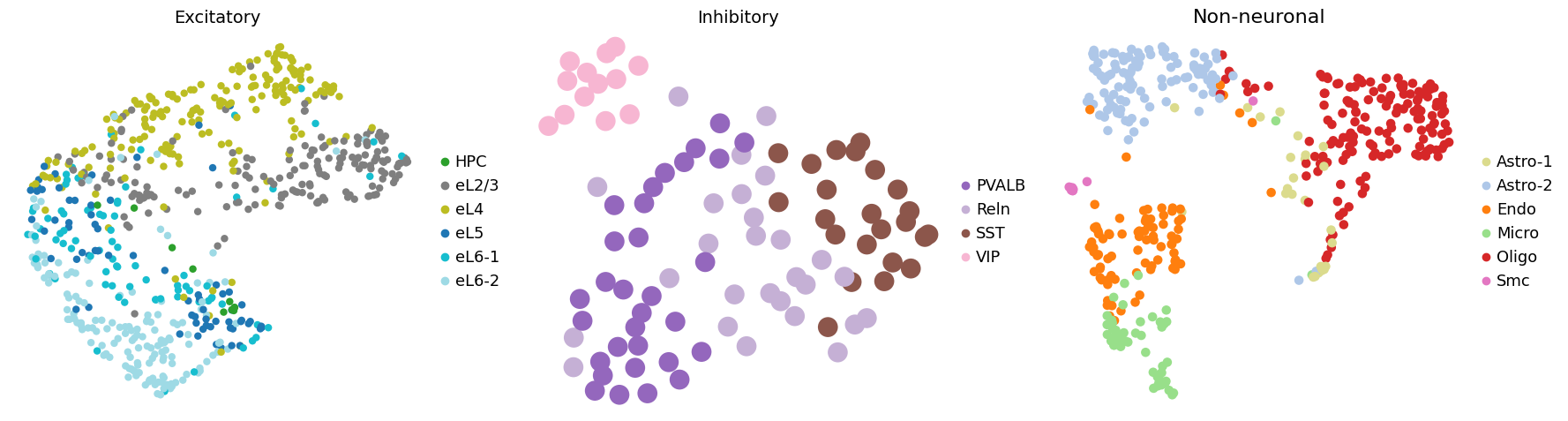

fig, axes = plt.subplots(1, 3, figsize=(18, 5))
for i, cat in enumerate(major_categories_dict.keys()):
adata_sub = adata[adata.obs['celltype'].isin(major_categories_dict[cat])].copy()
n_cells = adata_sub.shape[0]
s = 1e5/n_cells
sc.pp.normalize_total(adata_sub, target_sum=1e4)
sc.pp.log1p(adata_sub)
sc.tl.pca(adata_sub, n_comps=10, random_state=1234)
sc.pp.neighbors(adata_sub, n_neighbors=15, n_pcs=10, random_state=1234)
sc.tl.umap(adata_sub, random_state=1234, min_dist=0.1)
sc.pl.umap(adata_sub, color='celltype', palette=ct_color_dict, s=s, frameon=False,
title=cat, ax=axes[i], show=False)
plt.title(cat, fontsize=16)
plt.tight_layout()
plt.show()
[32]:
adata_excitatory = adata[adata.obs['celltype'].isin(excitatory_cts)].copy()
# adata_excitatory = adata_excitatory[adata_excitatory.obs['celltype'] != 'HPC'].copy()
sc.pp.normalize_total(adata_excitatory, target_sum=1e4)
sc.pp.log1p(adata_excitatory)
adata_excitatory
[32]:
AnnData object with n_obs × n_vars = 680 × 1020
obs: 'clusterid', 'celltype', 'layer', 'slice_name', 'celltype_idx', 'n_neighbors', 'niche_label_jsd', 'niche_label_jsd_v2', 'niche_label_fmi', 'niche_label_ari', 'niche_label_nmi', 'niche_label_asw', 'niche_label_js_asw', 'niche_label_fisher', 'niche_label_chi', 'niche_label_dbi', 'niche_label_dass_min', 'niche_label_dass_mean', 'niche_label_dafisher', 'niche_label_dachi', 'niche_label_0.09', 'niche_label_0.11', 'niche_label_9', 'niche_label_8', 'niche_label_7', 'niche_label_6', 'niche_label_5', 'niche_label_4', 'niche_label_3', 'niche_label_2', 'niche_label', 'matched_cluster', 'matched_label', 'ld1_anno', 'ld1_Harmonics', 'ld1_ect'
uns: 'ct2idx', 'idx2ct', 'niche_cell_count', 'niche_dist', 'niche_label_summary', 'score_dict', 'layer_colors', 'matched_cluster_colors', 'niche_label_colors', 'celltype_colors', 'log1p'
obsm: 'micro_dist', 'onehot', 'spatial'
obsp: 'delaunay_adj_mtx'
[33]:
df_layer_ct = pd.crosstab(
adata_excitatory.obs["layer"],
adata_excitatory.obs["celltype"]
)
df_niche_ct = pd.crosstab(
adata_excitatory.obs["matched_cluster"],
adata_excitatory.obs["celltype"]
)
df_layer_ct, df_niche_ct
[33]:
(celltype HPC eL2/3 eL4 eL5 eL6-1 eL6-2
layer
CC 0 0 0 2 2 15
HPC 9 0 1 8 0 1
L1 0 32 2 0 4 1
L2/3 0 129 38 3 13 2
L4 0 13 132 12 6 2
L5 1 0 14 34 14 13
L6 0 2 2 10 41 122,
celltype HPC eL2/3 eL4 eL5 eL6-1 eL6-2
matched_cluster
0 0 0 0 1 0 2
1 9 0 1 7 0 1
2 0 25 2 0 2 2
3 0 126 19 2 15 3
4 0 23 150 5 5 1
5 0 0 14 41 12 6
6 1 2 3 13 46 141)
[34]:
def volcano_plot_per_group(
adata,
key="rank_genes_groups",
groups=None,
qvals_thres=0.05,
logfc_thres=0.2,
max_labels=10,
point_size=20,
alpha=0.9,
cmap_other="#BDBDBD",
color_sig="#D62728",
fontsize=12,
title_fontsize=12,
label_fontsize=12,
tick_fontsize=12,
):
try:
from adjustText import adjust_text
has_adjust = True
except Exception:
has_adjust = False
if groups is None:
groups = list(adata.obs[adata.uns[key]["params"]["groupby"]].astype(str).unique())
n_groups = len(groups)
fig, axes = plt.subplots(int(np.ceil(n_groups/4)), 4, figsize=(20, 4 * np.ceil(n_groups/4)))
axes = np.atleast_1d(axes).ravel()
for ax in axes.flatten()[n_groups:]:
ax.axis('off')
for i, g in enumerate(groups):
df = sc.get.rank_genes_groups_df(adata, group=g, key=key).copy()
df = df.dropna(subset=["names", "pvals_adj", "logfoldchanges"])
df["qval"] = df["pvals_adj"].astype(float)
eps = 1e-300
df["-log10q"] = -np.log10(np.clip(df["qval"].to_numpy(), eps, None))
df["logfc"] = df["logfoldchanges"].astype(float)
sig_up = (df["qval"] < qvals_thres) & (df["logfc"] > logfc_thres)
axes[i].scatter(df.loc[~sig_up, "logfc"], df.loc[~sig_up, "-log10q"], s=point_size,
alpha=alpha, c=cmap_other, linewidths=0, rasterized=True,)
axes[i].scatter(df.loc[sig_up, "logfc"], df.loc[sig_up, "-log10q"], s=point_size,
alpha=0.9, c=color_sig, linewidths=0, rasterized=True,)
axes[i].axvline(logfc_thres, ls="--", lw=1.0, c="#666666")
axes[i].axhline(-np.log10(qvals_thres), ls="--", lw=1.0, c="#666666")
df_sig = df.loc[sig_up].copy()
if max_labels is not None and df_sig.shape[0] > max_labels:
df_sig = df_sig.sort_values("qval", ascending=True).head(max_labels)
texts = []
for _, r in df_sig.iterrows():
t = axes[i].text(r["logfc"], r["-log10q"], str(r["names"]), fontsize=fontsize, color=color_sig, ha="left", va="bottom")
texts.append(t)
if has_adjust and len(texts) > 0:
adjust_text(
texts,
ax=axes[i],
arrowprops=dict(arrowstyle="-", color="#888888", lw=1., alpha=0.8),
expand_points=(1.2, 1.4),
expand_text=(1.2, 1.4),
force_text=(0.2, 0.4),
)
axes[i].set_title(f"Volcano plot: {g}", fontsize=title_fontsize, pad=10)
axes[i].set_xlabel("log fold change", fontsize=label_fontsize)
axes[i].set_ylabel("-log10(q value)", fontsize=label_fontsize)
axes[i].tick_params(axis='x', labelsize=tick_fontsize)
axes[i].tick_params(axis='y', labelsize=tick_fontsize)
axes[i].spines["top"].set_visible(False)
axes[i].spines["right"].set_visible(False)
axes[i].grid(False)
plt.tight_layout()
plt.show()
[35]:
adata_ex_anno = adata_excitatory.copy()
sc.tl.rank_genes_groups(adata_ex_anno,
groupby="layer",
method="wilcoxon",
groups=['L2/3', 'L4', 'L5', 'L6'],
use_raw=False,
pts=True,
)

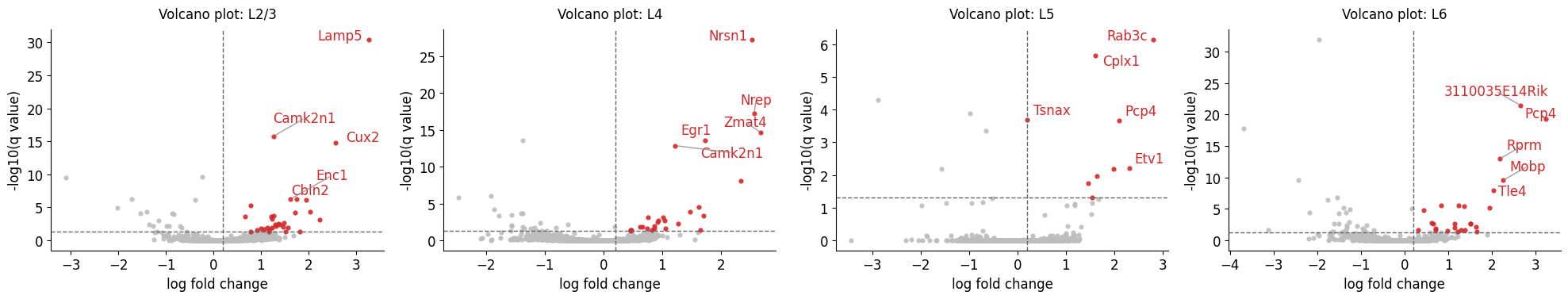

volcano_plot_per_group(
adata_ex_anno,
key="rank_genes_groups",
groups=['L2/3', 'L4', 'L5', 'L6'],
qvals_thres=0.05,
logfc_thres=0.2,
max_labels=5,
)
Looks like you are using a tranform that doesn't support FancyArrowPatch, using ax.annotate instead. The arrows might strike through texts. Increasing shrinkA in arrowprops might help.
[36]:
adata_ex_Harmonics = adata_excitatory.copy()
sc.tl.rank_genes_groups(adata_ex_Harmonics,
groupby="matched_cluster",
method="wilcoxon",
groups=['3', '4', '5', '6'],
use_raw=False,
pts=True,
)

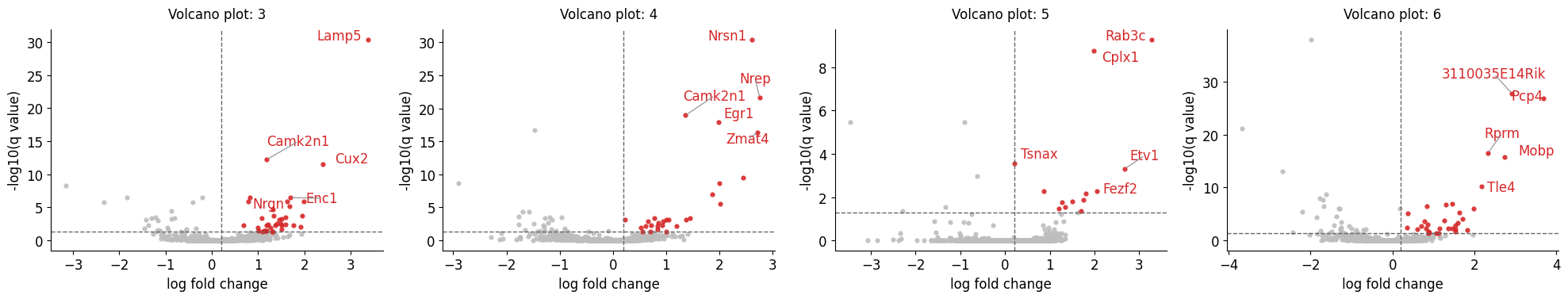

volcano_plot_per_group(
adata_ex_Harmonics,
key="rank_genes_groups",
groups=['3', '4', '5', '6'],
qvals_thres=0.05,
logfc_thres=0.2,
max_labels=5,
)
[37]:
for g in ['3', '4', '5', '6']:
df = sc.get.rank_genes_groups_df(adata_ex_Harmonics, group=g, key="rank_genes_groups").copy()
sig = df[(df["pvals_adj"] < 0.05) & (df["logfoldchanges"] > 0.2)]
print(f"\n===== Niche {g} =====")
print(f"Significant upregulated genes: {sig.shape[0]}")
for name in sig["names"].tolist():
print(f"- {name}")
===== Niche 3 =====
Significant upregulated genes: 37
- Lamp5
- Camk2n1
- Cux2
- Enc1
- Nrgn
- Cpne5
- Pcsk2
- 2900055J20Rik
- Cbln2
- Camk2a
- Gucy1b3
- Calb1
- Nectin3
- Ncdn
- Cacng3
- Enpp2
- Lrrtm4
- Acvr1c
- Gria3
- Nell2
- Hpcal4
- B230216N24Rik
- Btbd11
- Atp2b4
- Cenpw
- Ddit4l
- Hhatl
- Atp6ap1l
- Chodl
- Ttyh1
- Cd34
- Hpca
- 1700086L19Rik
- Pdzrn3
- 6330403K07Rik
- Gpr151
- Trp53i11
===== Niche 4 =====
Significant upregulated genes: 28
- Nrsn1
- Nrep
- Camk2n1
- Egr1
- Zmat4
- Whrn
- Cux2
- Nudt4
- Rorb
- Arpp21
- Btbd3
- Aldoc
- Nrn1
- Fos
- Ralyl
- Bcl6
- Nell1
- Mef2c
- Epha4
- Arc
- Atp1a2
- Fam19a2
- Dusp6
- Hlf
- Egr3
- Cadps2
- Gpm6b
- Hmgcr
===== Niche 5 =====
Significant upregulated genes: 13
- Rab3c
- Cplx1
- Tsnax
- Etv1
- Fezf2
- Pgm2l1
- Pcp4
- Tmsb10
- Efr3a
- Slc20a1
- Acot13
- Rap1gds1
- Sulf2
===== Niche 6 =====
Significant upregulated genes: 32
- 3110035E14Rik
- Pcp4
- Rprm
- Mobp
- Tle4
- Ogfrl1
- Nptx1
- Hpcal4
- Arhgap25
- Mbp
- Scg2
- Col6a1
- Klf10
- Arc
- Garnl3
- Fxyd7
- Cryab
- Kif5a
- Slc17a7
- Anapc13
- Snx10
- Plcxd3
- Pitpnc1
- Syn1
- Nrp1
- Cdh18
- Obox3
- Efr3a
- Prkcg
- Plp1
- Ddah1
- Ptk2
[38]:
def get_logfc_and_qval_for_gene(adata, key, group, gene):
df = sc.get.rank_genes_groups_df(adata, group=group, key=key)
row = df[df["names"] == gene]
if row.shape[0] == 0:
return None
return float(row["logfoldchanges"].iloc[0]), float(row["pvals_adj"].iloc[0])
layer_marker = {
'L2/3': ['Enpp2', 'Cpne5'],
'L4': ['Rorb', 'Whrn', 'Btbd3', 'Nrep', 'Zmat4'],
'L5': ['Etv1', 'Fezf2', 'Cplx1'],
'L6': ['Rprm', 'Plcxd3', 'Pcp4', 'Tle4'],
}
layer_to_niche = {
'L2/3': '3',
'L4': '4',
'L5': '5',
'L6': '6',
}
for layer, markers in layer_marker.items():
niche = layer_to_niche[layer]
g_list = []
for gene in markers:
logfc_anno, q_anno = get_logfc_and_qval_for_gene(adata_ex_anno, key="rank_genes_groups", group=layer, gene=gene)
logfc_Harmonics, q_Harmonics = get_logfc_and_qval_for_gene(adata_ex_Harmonics, key="rank_genes_groups", group=niche, gene=gene)
print(f"{gene} in {layer}/Niche{niche} -> Annotation logFC: {logfc_anno}, q-value: {q_anno}, significant: {q_anno < 0.05}")
print(f"{gene} in {layer}/Niche{niche} -> Harmonics logFC: {logfc_Harmonics}, q-value: {q_Harmonics}, significant: {q_Harmonics < 0.05}\n")
Enpp2 in L2/3/Niche3 -> Annotation logFC: 1.2986679077148438, q-value: 0.0036319776841205543, significant: True
Enpp2 in L2/3/Niche3 -> Harmonics logFC: 1.4527212381362915, q-value: 0.0007232070477109227, significant: True
Cpne5 in L2/3/Niche3 -> Annotation logFC: 1.9511423110961914, q-value: 7.355318067377369e-07, significant: True
Cpne5 in L2/3/Niche3 -> Harmonics logFC: 1.98761785030365, q-value: 1.3100156715311015e-06, significant: True
Rorb in L4/Niche4 -> Annotation logFC: 1.7043458223342896, q-value: 0.00041602235784925034, significant: True
Rorb in L4/Niche4 -> Harmonics logFC: 2.019033432006836, q-value: 2.571163061879567e-06, significant: True
Whrn in L4/Niche4 -> Annotation logFC: 2.333984136581421, q-value: 8.94273886808038e-09, significant: True
Whrn in L4/Niche4 -> Harmonics logFC: 2.451214551925659, q-value: 2.8196421302645644e-10, significant: True
Btbd3 in L4/Niche4 -> Annotation logFC: 1.2737557888031006, q-value: 0.006084667639178409, significant: True
Btbd3 in L4/Niche4 -> Harmonics logFC: 1.4516574144363403, q-value: 0.0004795164954329104, significant: True
Nrep in L4/Niche4 -> Annotation logFC: 2.5671701431274414, q-value: 5.921656676928374e-18, significant: True
Nrep in L4/Niche4 -> Harmonics logFC: 2.759559154510498, q-value: 2.6108367402585314e-22, significant: True
Zmat4 in L4/Niche4 -> Annotation logFC: 2.680187940597534, q-value: 2.362692532472654e-15, significant: True
Zmat4 in L4/Niche4 -> Harmonics logFC: 2.7187037467956543, q-value: 4.389644191374253e-17, significant: True
Etv1 in L5/Niche5 -> Annotation logFC: 2.317514419555664, q-value: 0.006313636567049341, significant: True
Etv1 in L5/Niche5 -> Harmonics logFC: 2.6663401126861572, q-value: 0.0005120717902115008, significant: True
Fezf2 in L5/Niche5 -> Annotation logFC: 1.9876000881195068, q-value: 0.006581566533922537, significant: True
Fezf2 in L5/Niche5 -> Harmonics logFC: 2.0483899116516113, q-value: 0.005096013075901225, significant: True
Cplx1 in L5/Niche5 -> Annotation logFC: 1.6135716438293457, q-value: 2.2415865060388973e-06, significant: True
Cplx1 in L5/Niche5 -> Harmonics logFC: 1.9853711128234863, q-value: 1.6476955371090492e-09, significant: True
Rprm in L6/Niche6 -> Annotation logFC: 2.175508499145508, q-value: 1.0593899139740138e-13, significant: True
Rprm in L6/Niche6 -> Harmonics logFC: 2.3336853981018066, q-value: 2.935489294643526e-17, significant: True
Plcxd3 in L6/Niche6 -> Annotation logFC: 1.2119698524475098, q-value: 0.03546031514446824, significant: True
Plcxd3 in L6/Niche6 -> Harmonics logFC: 1.371691346168518, q-value: 0.005191762287497332, significant: True
Pcp4 in L6/Niche6 -> Annotation logFC: 3.2285687923431396, q-value: 5.629195948140291e-20, significant: True
Pcp4 in L6/Niche6 -> Harmonics logFC: 3.6927971839904785, q-value: 1.4394313850268824e-27, significant: True
Tle4 in L6/Niche6 -> Annotation logFC: 2.0265390872955322, q-value: 1.0565597475227318e-08, significant: True
Tle4 in L6/Niche6 -> Harmonics logFC: 2.177617311477661, q-value: 6.803565821385164e-11, significant: True
[39]:

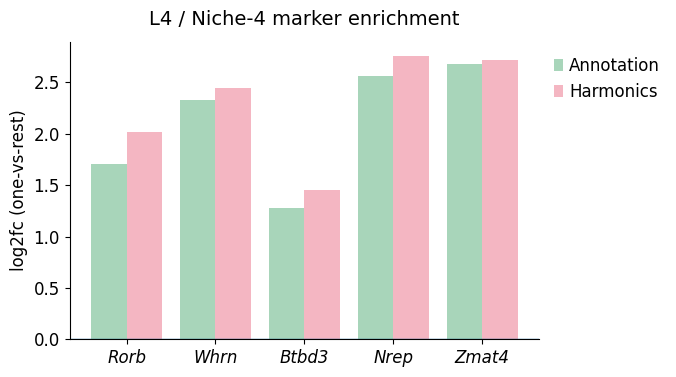

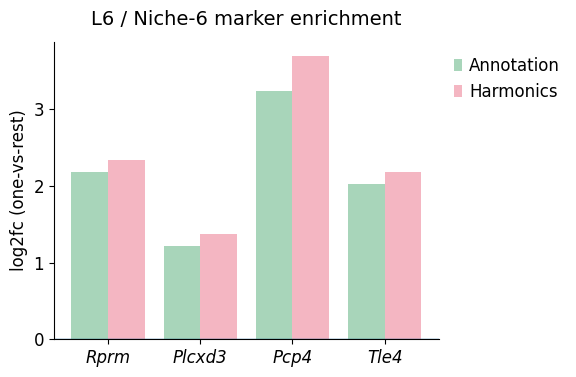

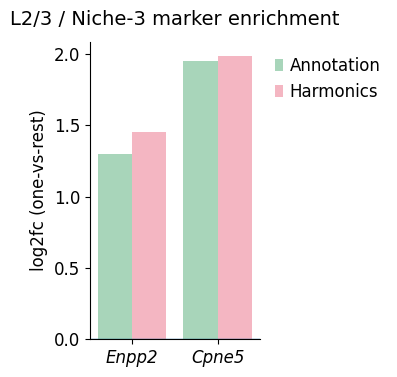

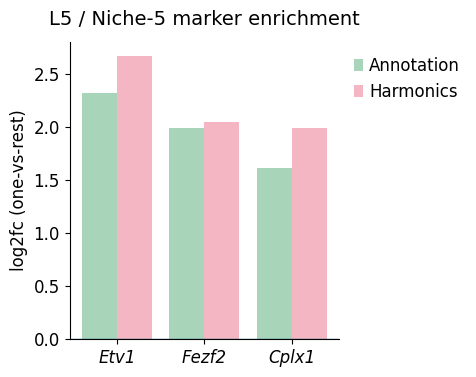

for layer, genes in layer_marker.items():
niche = layer_to_niche[layer]
genes = list(genes)
logfc_anno, q_anno = [], []
logfc_har, q_har = [], []
for g in genes:
lf1, q1 = get_logfc_and_qval_for_gene(adata_ex_anno, key='rank_genes_groups', group=layer, gene=g)
lf2, q2 = get_logfc_and_qval_for_gene(adata_ex_Harmonics, key='rank_genes_groups', group=niche, gene=g)
logfc_anno.append(lf1); q_anno.append(q1)
logfc_har.append(lf2); q_har.append(q2)
x = np.arange(len(genes))
width = 0.4
plt.figure(figsize=(2 + 1 * len(genes), 4))
bars1 = plt.bar(x - width/2, logfc_anno, width, label=f"Annotation", color="#A8D5BA")
bars2 = plt.bar(x + width/2, logfc_har, width, label=f"Harmonics", color="#F4B6C2")
for b, qv in zip(bars1, q_anno):
if qv > 0.05:
b.set_hatch("///")
for b, qv in zip(bars2, q_har):
if qv > 0.05:
b.set_hatch("///")
plt.axhline(0, linewidth=1)
plt.xticks(x, genes, rotation=0, ha="center", fontsize=12)
plt.yticks(fontsize=12)
plt.ylabel("log2fc (one-vs-rest)", fontsize=12)
plt.title(f"{layer} / Niche-{niche} marker enrichment", pad=12, fontsize=14)
plt.legend(frameon=False, fontsize=12, bbox_to_anchor=(1.0, 1.0), loc='upper left')
ax = plt.gca()
for label in ax.get_xticklabels():
label.set_fontstyle("italic")
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
ax.grid(False)
plt.tight_layout()
plt.show()
